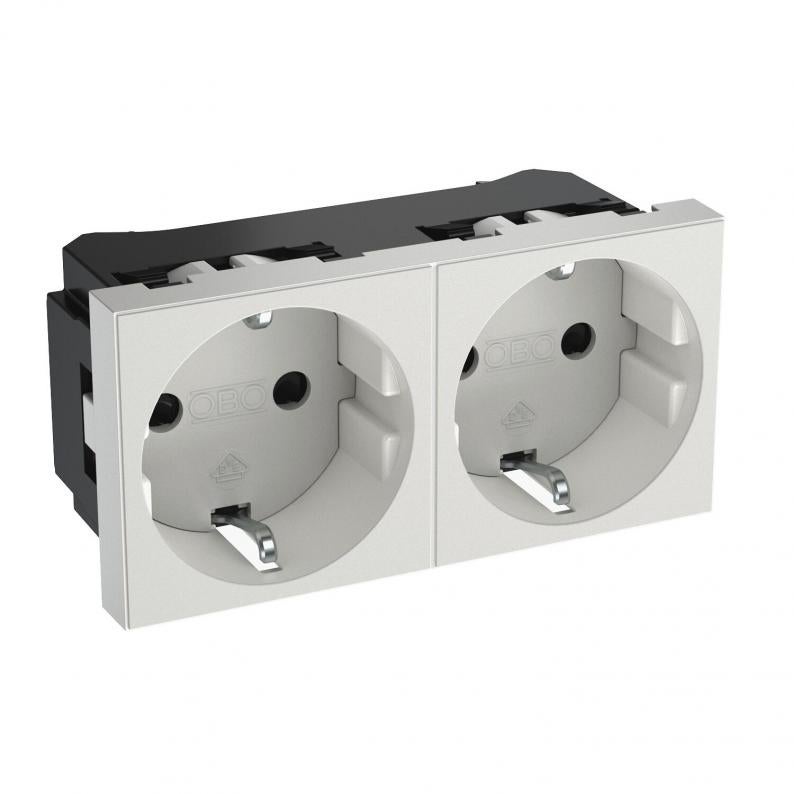

0° socket, protective contact, double

0° socket, protective contact, double

Type STD-D0N RW2
|
Item no. 6119725
|
EAN 4012197481865
Show all variants
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

Protective contact socket, double 0°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals according to IEC 60884-1.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
  • CO2-reduced material
  • Recycling material ratio in %
  • Reusable after de-installation/dismantling

Technical data

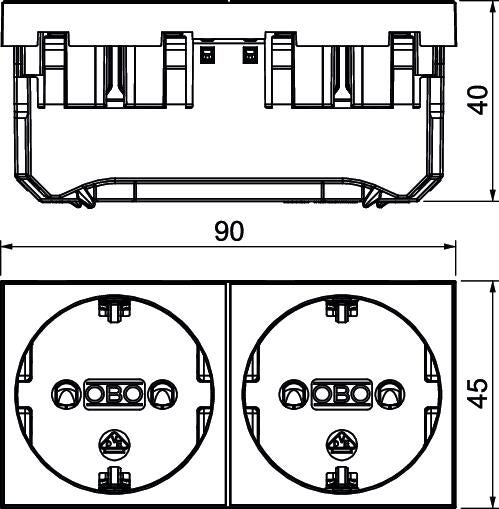

Dimensions

Width90 mm
Height45 mm

Technical data

Number of poles2
Hinged coverno
increased touch protectionyes
Power reserveno
Warning lightno
Halogen-freeyes
Labelling panelno
Number of units2
Protection ratingOther
Nominal current16 A
Nominal voltage250 V
Closableno
Ejection mechanismno
Surge protectionno
Error current protectionno
With fine-wire fuseno
With on/off switchno
Rotated central insertno
CoverCentral plate
Printed label/codingWithout printing
Special power supplyWithout special power supply
Surface versionMatt
Transparentno
Socket angle0°
Socket versionProtective contact
Number of switchable sockets0
With functional lightingno
With orientation lightingno
For more difficult conditions (according to VDE)no
Version forDouble 0°
Number of modules (for modular construction)0
Insulated installationno
Mounting typeDevice installation duct
Fastening typeLock
Connection typeScrewless terminal
Operating temperature, min.-5 °C
Operating temperature, max.40 °C
Codingno
Dimension90x45x42
SurfaceMatt
MaterialPolycarbonate Eco
ColourPure white; RAL 9010

Environmental Data

Recycled material content 90 %

Downloads

0 selected

Product images (2)
Tender specifications (1)

Variants

Colour
STD-D0N RW2
Item no.
6119725
Number of units
2
Version for
Double 0°
Colour
Pure white; RAL 9010
STD-D0N ROR2
Item no.
6119728
Number of units
2
Version for
Double 0°
Colour
Pure orange; RAL 2004
STD-D0N MZGN2
Item no.
6119731
Number of units
2
Version for
Double 0°
Colour
Mint green; RAL 6029
STD-D0N SRO2
Item no.
6119734
Number of units
2
Version for
Double 0°
Colour
Signal red; RAL 3001
STD-D0N SWGR2
Item no.
6119737
Number of units
2
Version for
Double 0°
Colour
Black-grey; RAL 7021
STD-D0N AL2
Item no.
6119740
Number of units
2
Version for
Double 0°
Colour
Aluminium painted
