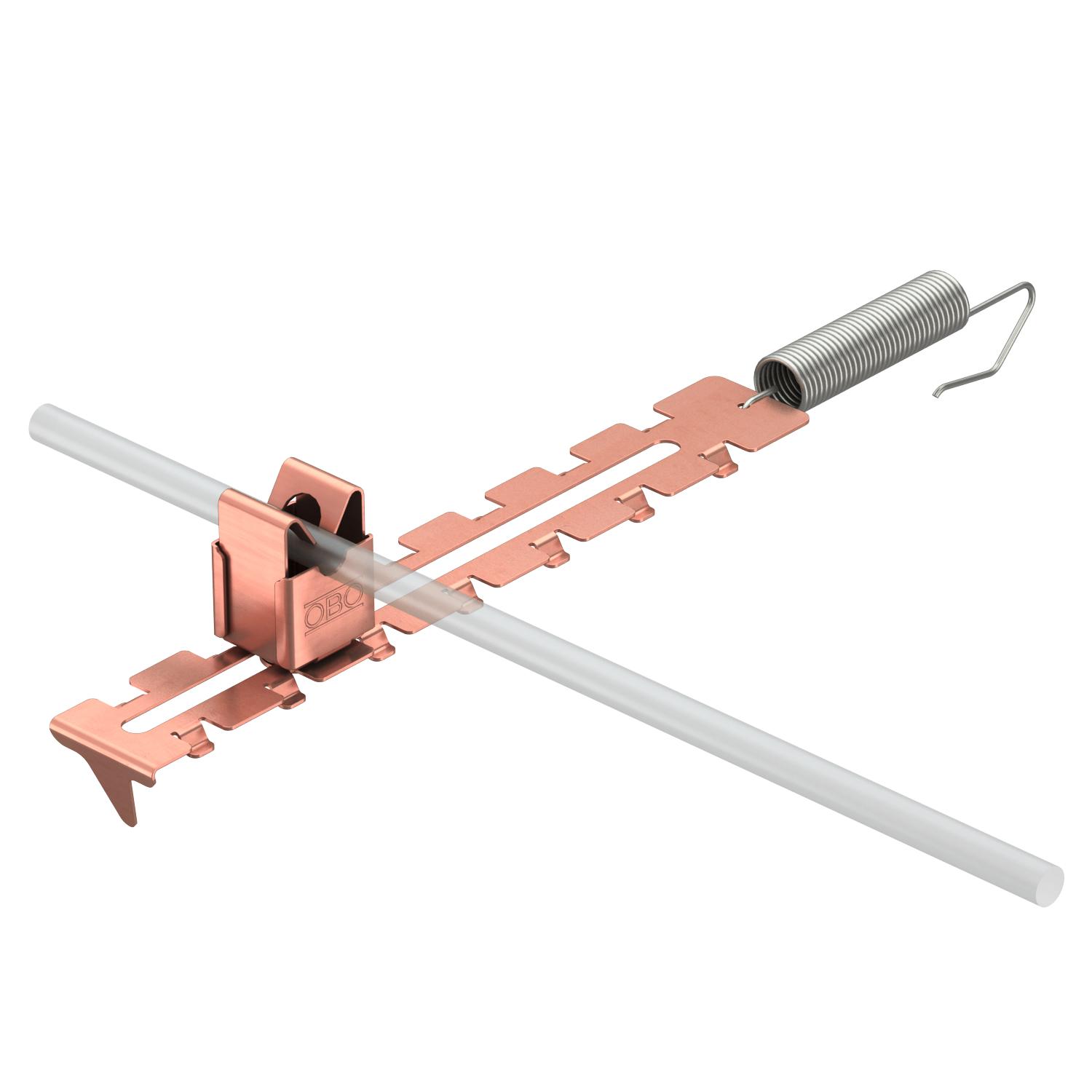

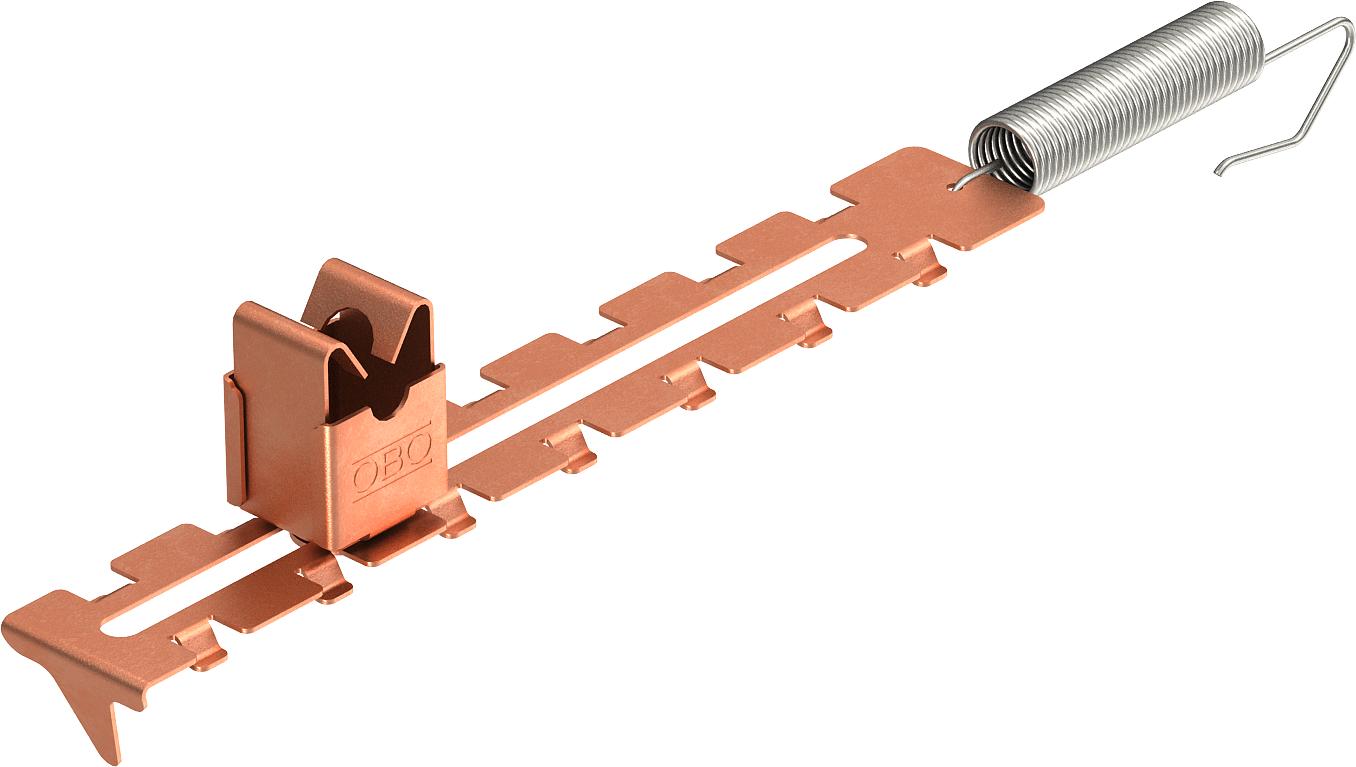

Ridge conductor holder with tensioning spring
Item no. 5203023 | EAN 4012195289746
- Product description
-
Product description• For round conductor Rd 8
• Clamping range 280-380 mm
- Technical data
-
Technical data

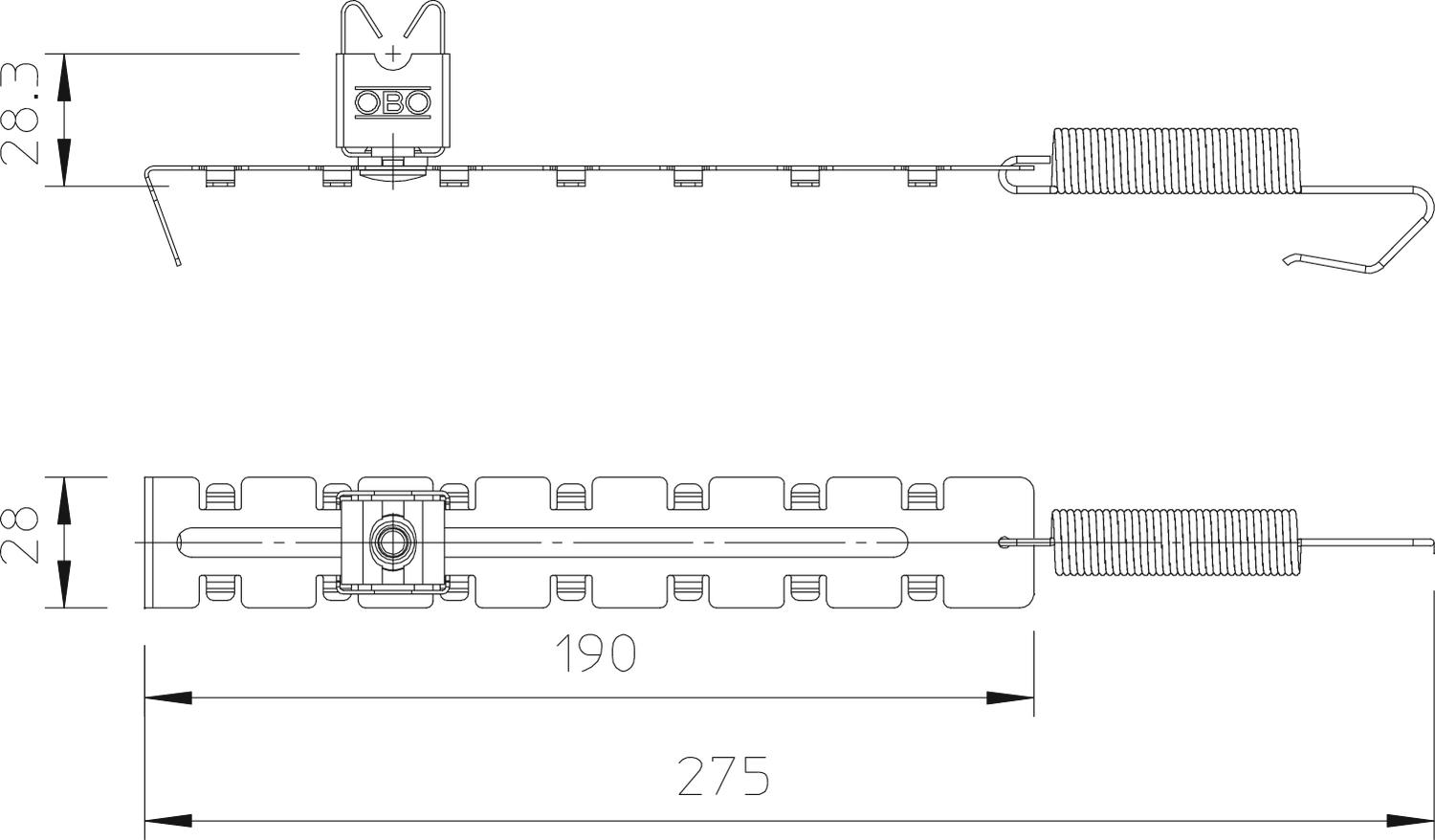

Application Ridge Clamping range D, max. 380 mm Clamping range D, min. 280 mm CO2 Footprint (GWP) Cradle-to-Gate 0,1062 kg CO2e / 1 Piece Conductor diameter, min. 8 Conductor fastening type With clip Dimension 8mm Fit RD 8 mm Material Stainless steel Mounting height 20 mm Mounting type Tensionable Surface Copper-plated - All types
- Downloads
-
Data sheet 132 U-CU / 5203023 , 0.18MB , pdfEU declaration of conformity 132 U-CU / 5203023 , 0.06MB , pdf
