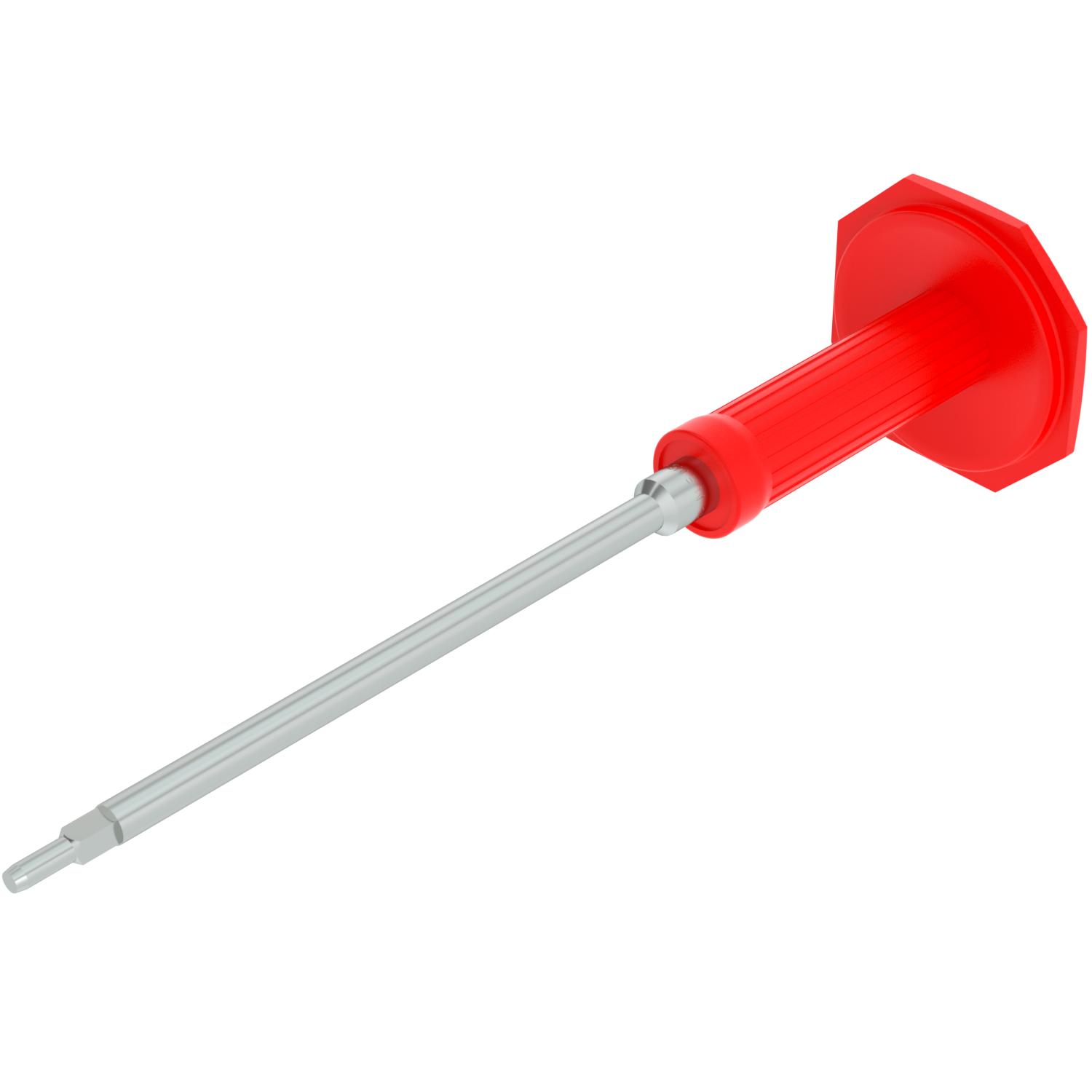

Marking spreading tool for drop-in anchors

Item no. 3492968 | EAN 4012196709731

Item no. / Types

Length

Thread

Product description

Product description

Marking spreading tool with hand protection for drop-in anchors, type E

Technical data

Technical data

Colour	zinc
Dimension	8x30
Length	230 mm
Material	Steel

Pin dimension	8 mm
Surface	Electrogalvanized
Thread	M8
With hand protection	yes

All types

All types

Types	Length	Thread	Item no.
E-MSH 6x25	225 mm	M6	3492964
E-MSH 8x25	225 mm	M8	3492966
E-MSH 8x30	230 mm	M8	3492968
E-MSH 10x25	230 mm	M10	3492971
E-MSH 12x25	235 mm	M12	3492973
E-MSH 10x40	235 mm	M10	3492974
E-MSH 12x50	240 mm	M12	3492978

Downloads

Data sheet E-MSH 8x30 / 3492968 , 0.14MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure False ceiling installations , 2.70MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

REACH Declaration of conformity E-MSH 8x30 / 3492968 , 0.12MB , pdf

Download

RoHS Declaration of conformity E-MSH 8x30 / 3492968 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.65MB , pdf

Product graphic E-MSH 8x30 / 3492968, 43.20 kB, jpg

Scale drawing E-MSH 8x30 / 3492968, 4.70 kB, jpg

E-MSH 8x30 / 3492968

Markier- und Spreizwerkzeug E-MSH 8x30.rfa, 356.00 kB
