Marking spreading tool for drop-in anchors 225 | M8

morepic-1

morepic-2

Marking spreading tool for drop-in anchors

Item no. 3492966 | EAN 4012196709724

Item no. / Types

Length

Thread

Product description

Product description

Marking spreading tool with hand protection for drop-in anchors, type E

Technical data

Technical data

Colour	zinc
Dimension	8x25
Length	225 mm
Material	Steel

Pin dimension	8 mm
Surface	Electrogalvanized
Thread	M8
With hand protection	yes

All types

All types

Types	Length	Thread	Item no.
E-MSH 6x25	225 mm	M6	3492964
E-MSH 8x25	225 mm	M8	3492966
E-MSH 8x30	230 mm	M8	3492968
E-MSH 10x25	230 mm	M10	3492971
E-MSH 12x25	235 mm	M12	3492973
E-MSH 10x40	235 mm	M10	3492974
E-MSH 12x50	240 mm	M12	3492978

Downloads

Data sheet E-MSH 8x25 / 3492966 , 0.15MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Brochure False ceiling installations , 2.70MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

REACH Declaration of conformity E-MSH 8x25 / 3492966 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.65MB , pdf

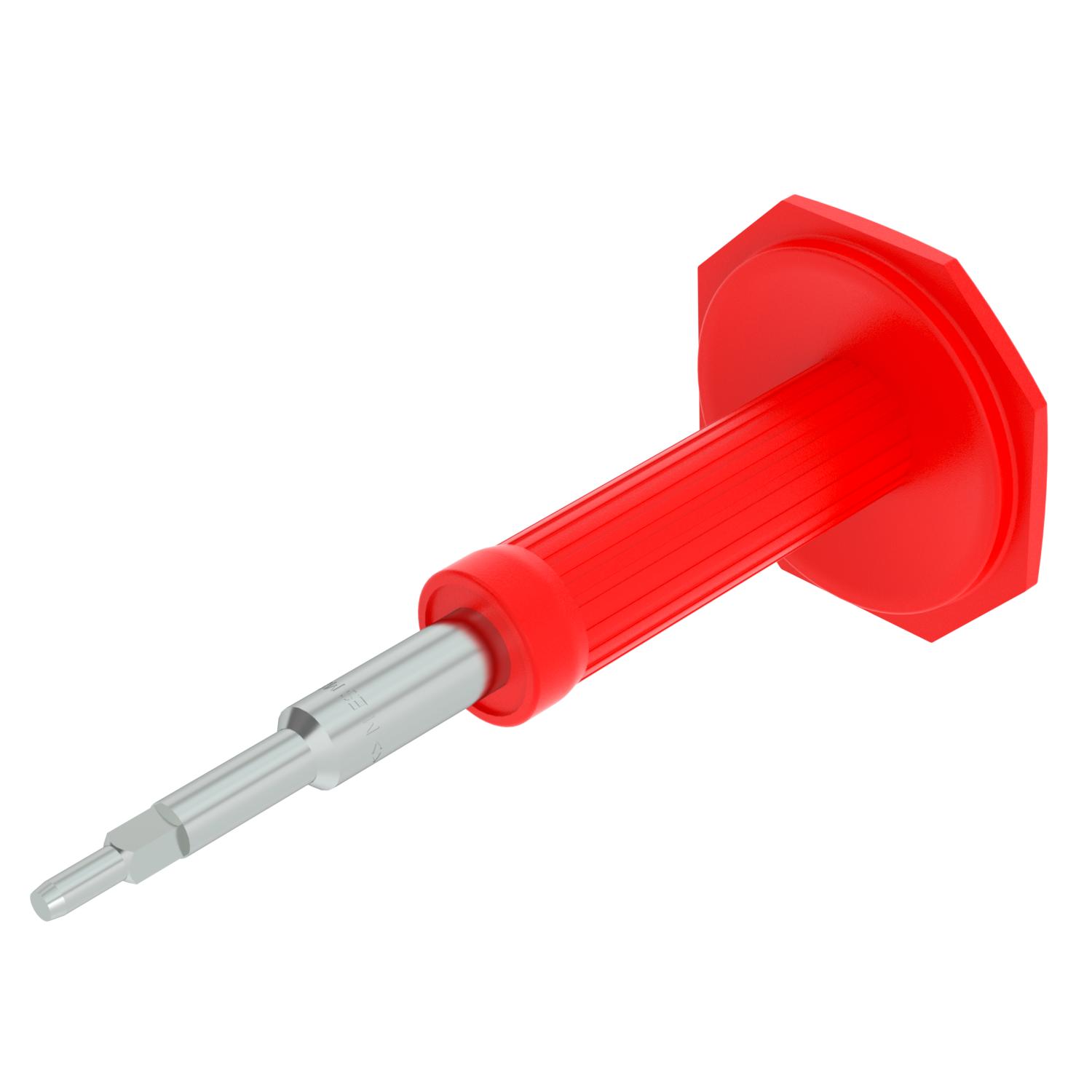

Product graphic E-MSH 8x25 / 3492966, 53.58 kB, jpg

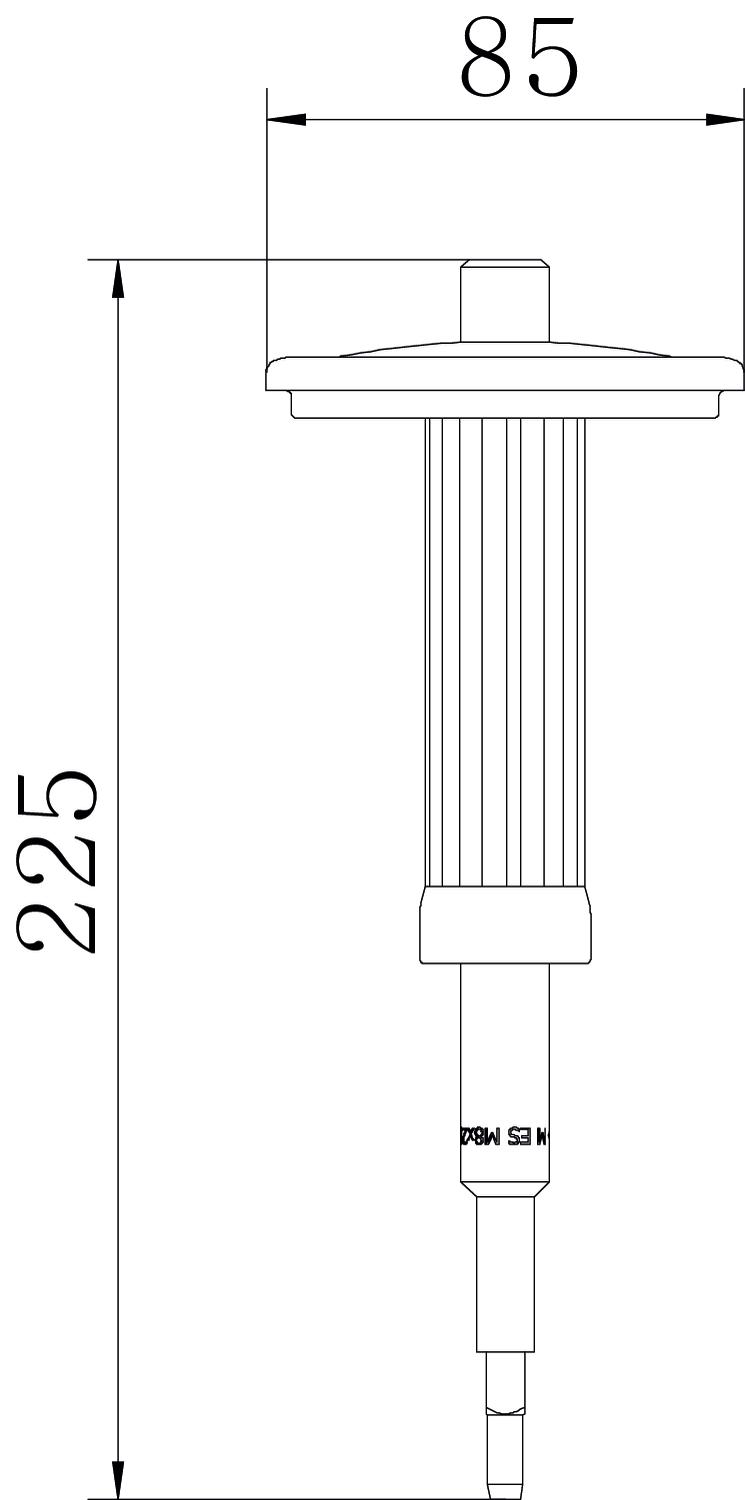

Scale drawing E-MSH 8x25 / 3492966, 37.62 kB, jpg

E-MSH 8x25 / 3492966

Markier- und Spreizwerkzeug E-MSH 8x25.rfa, 356.00 kB
