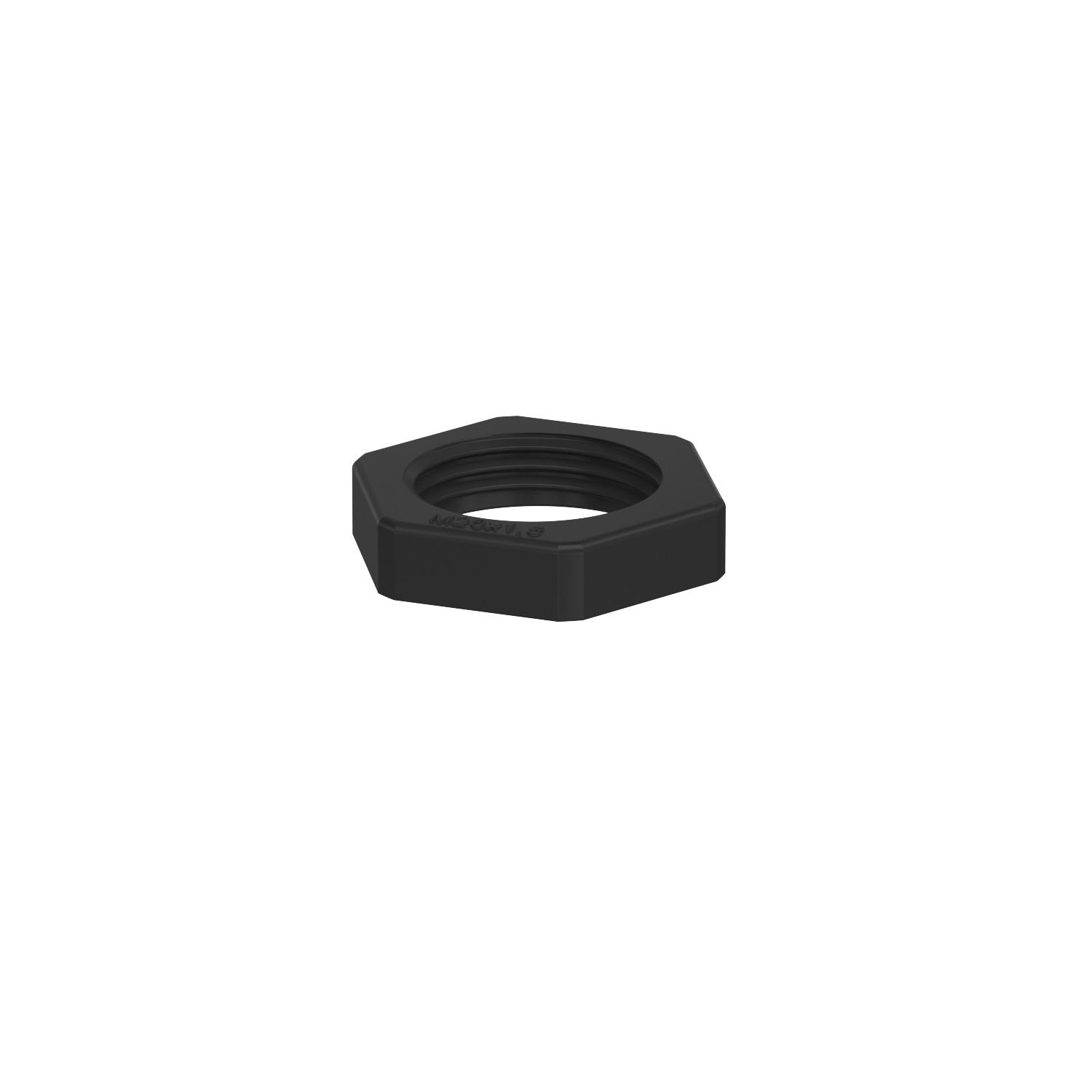

Locknut, metric thread, black
Type 116 M20 SW PA
Item no. 2049082
EAN 4012195095415
Item no. / Type
Thread
WAF
Smallest selling unit: 100 piece
100piece
piece
Description
Locknut to DIN 46319, with metric thread IEC 423.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. locknuts, reducers, expansions, etc.). Use products made from polystyrene exclusively with polystyrene accessory parts.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. locknuts, reducers, expansions, etc.). Use products made from polystyrene exclusively with polystyrene accessory parts.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| Thread | M20 x 1,5 |
| Thread type | Metric |
| WAF | 26 |
| Nominal thread size metric/PG | 20 |
| ROHS-conformant | yes |
| Dimension | M20 |
| Material | Polyamide |
| Colour | Black |
| Product series | 116, BlackLine |

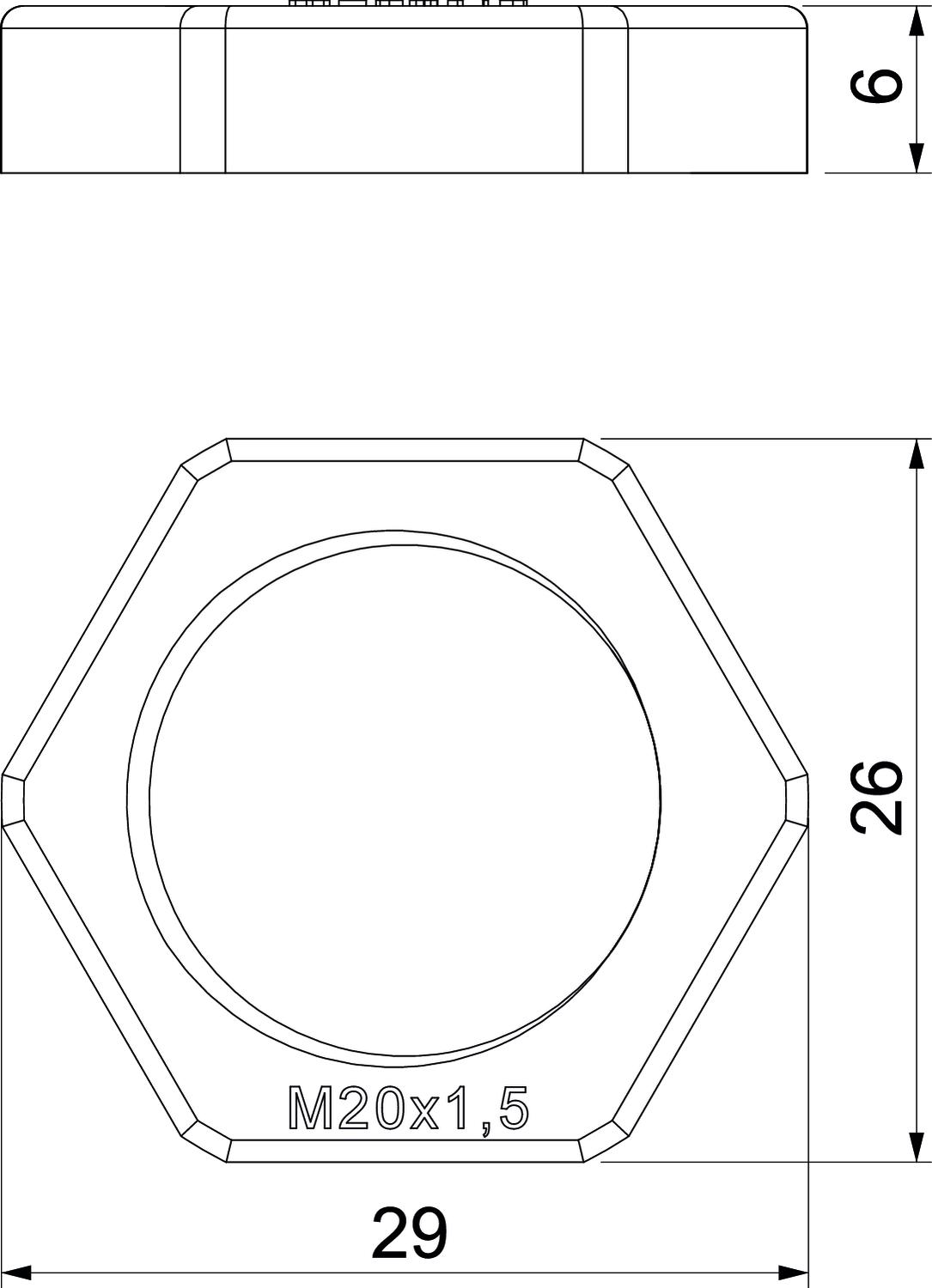

Dimensions
| Dimension L | 6 mm |
|---|---|
| Dimension E | 29 mm |
Environmental Data
0,0087 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0087 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0087 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Thread
WAF
Item no.
116 M12 SW PA
M12 x 1,5
17
2049066
116 M16 SW PA
M16 x 1,5
22
2049074
116 M20 SW PA
M20 x 1,5
26
2049082
116 M25 SW PA
M25 x 1,5
32
2049090
116 M32 SW PA
M32 x 1,5
41
2049104
116 M40 SW PA
M40 x 1,5
50
2049112
116 M50 SW PA
M50 x 1,5
60
2049120
116 M63 SW PA
M63 x 1,5
75
2049139
