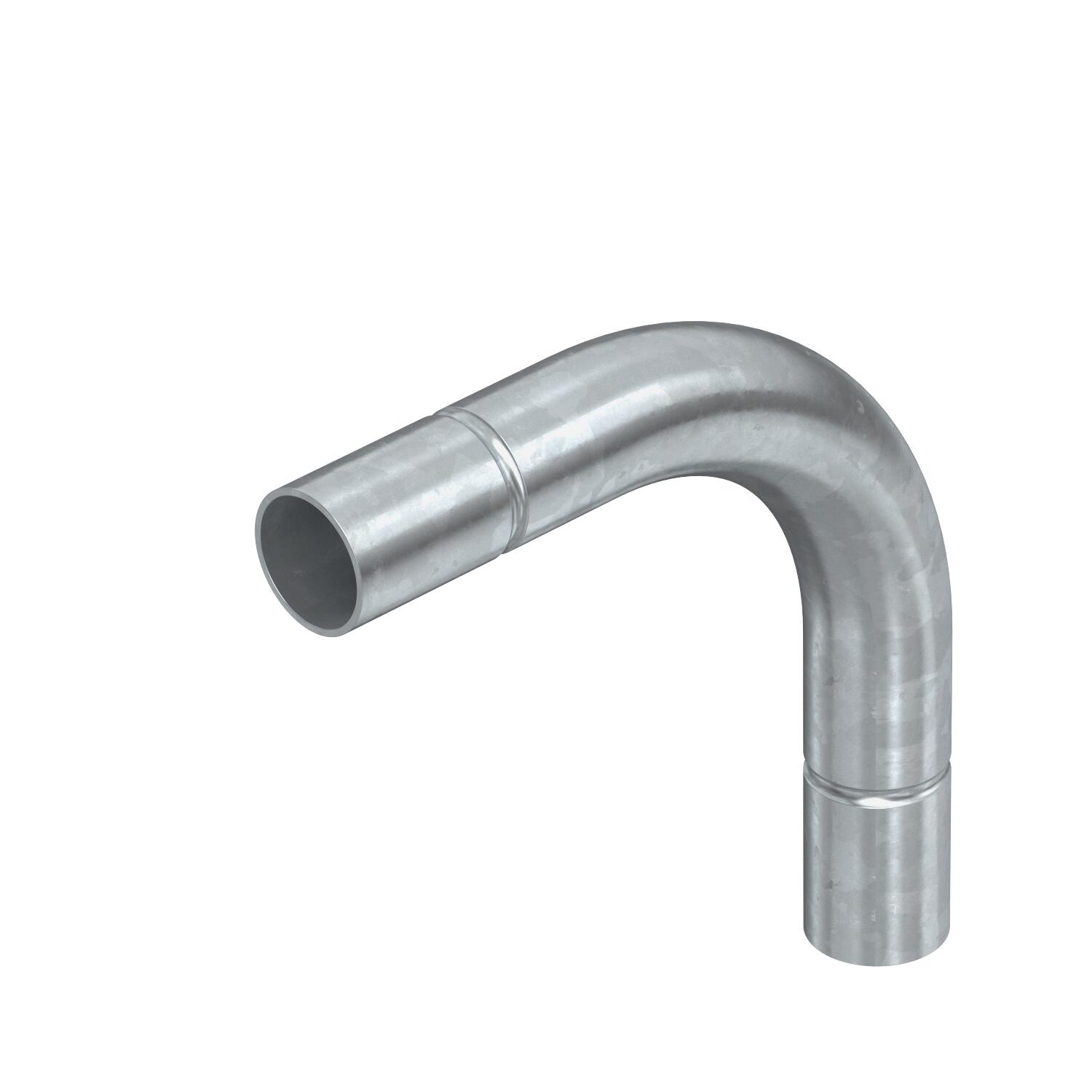

Hot-dip galvanised steel bend, without thread
Item no. 2046816 | EAN 4012196387953
- Product description
-
Product description90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
-
- Technical data
-
Technical data

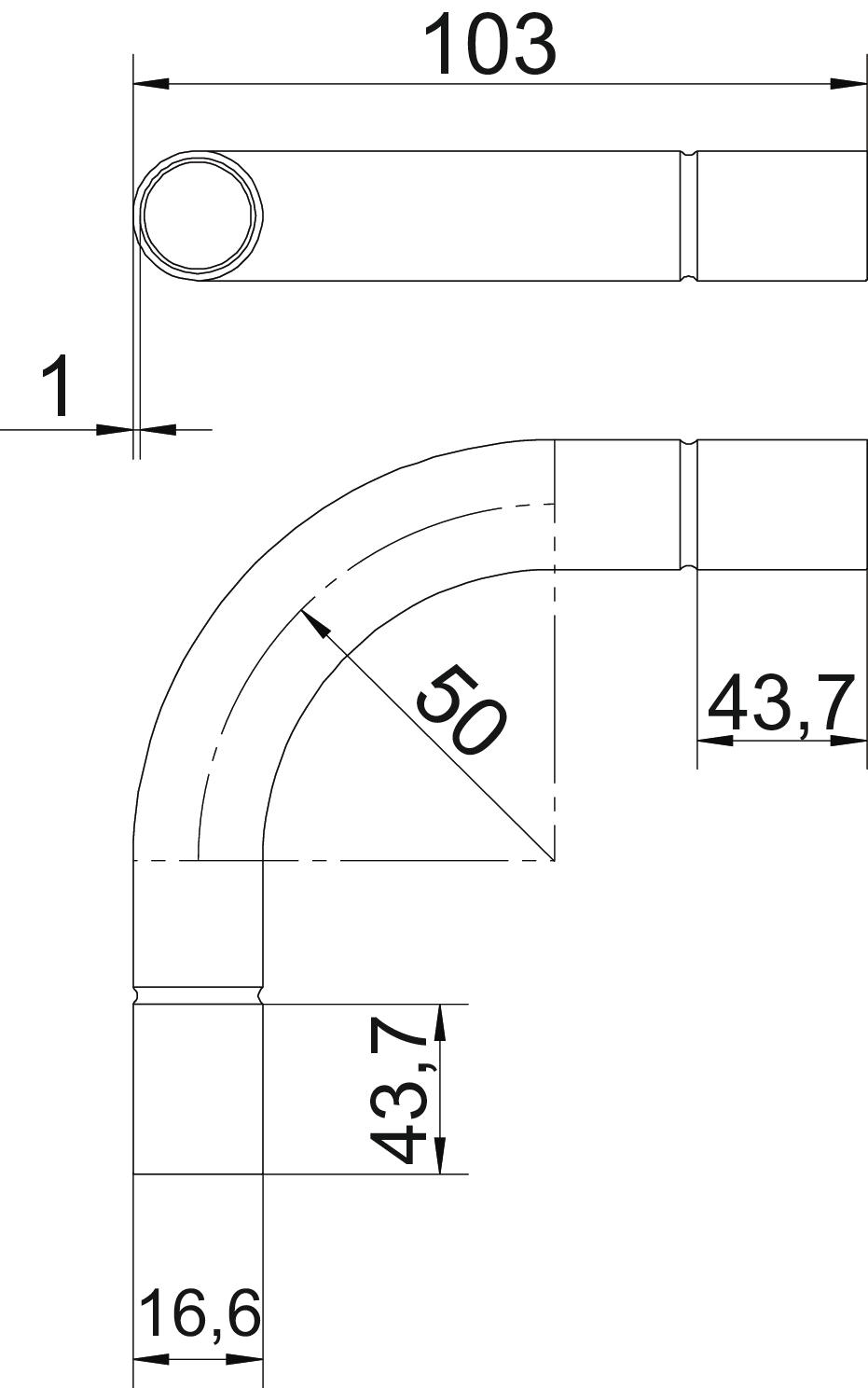

Angle of the bend 90 ° Brushed surface no CO2 Footprint (GWP) Cradle-to-Gate 0,3452 kg CO₂e / 1 Piece Dimension Ø16mm Dimension A 43,7 mm Dimension B 103 mm Dimension D 18,6 mm Dimension d 16,6 mm Dimension l 25 mm Dimension m (mm) M16 Dimension R 50 mm Dimension t 1 mm Flexible no For nominal pipe diameter 50 mm Halogen-free no Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Surface Hot-dip galvanised Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBN16 FT / 2046816 , 0.17MB , pdfEU declaration of conformity SBN16 FT / 2046816 , 0.10MB , pdfUK Declaration of Conformity SBN16 FT / 2046816 , 0.09MB , pdfREACH Declaration of conformity SBN16 FT / 2046816 , 0.12MB , pdfRoHS Declaration of conformity SBN16 FT / 2046816 , 0.12MB , pdf
