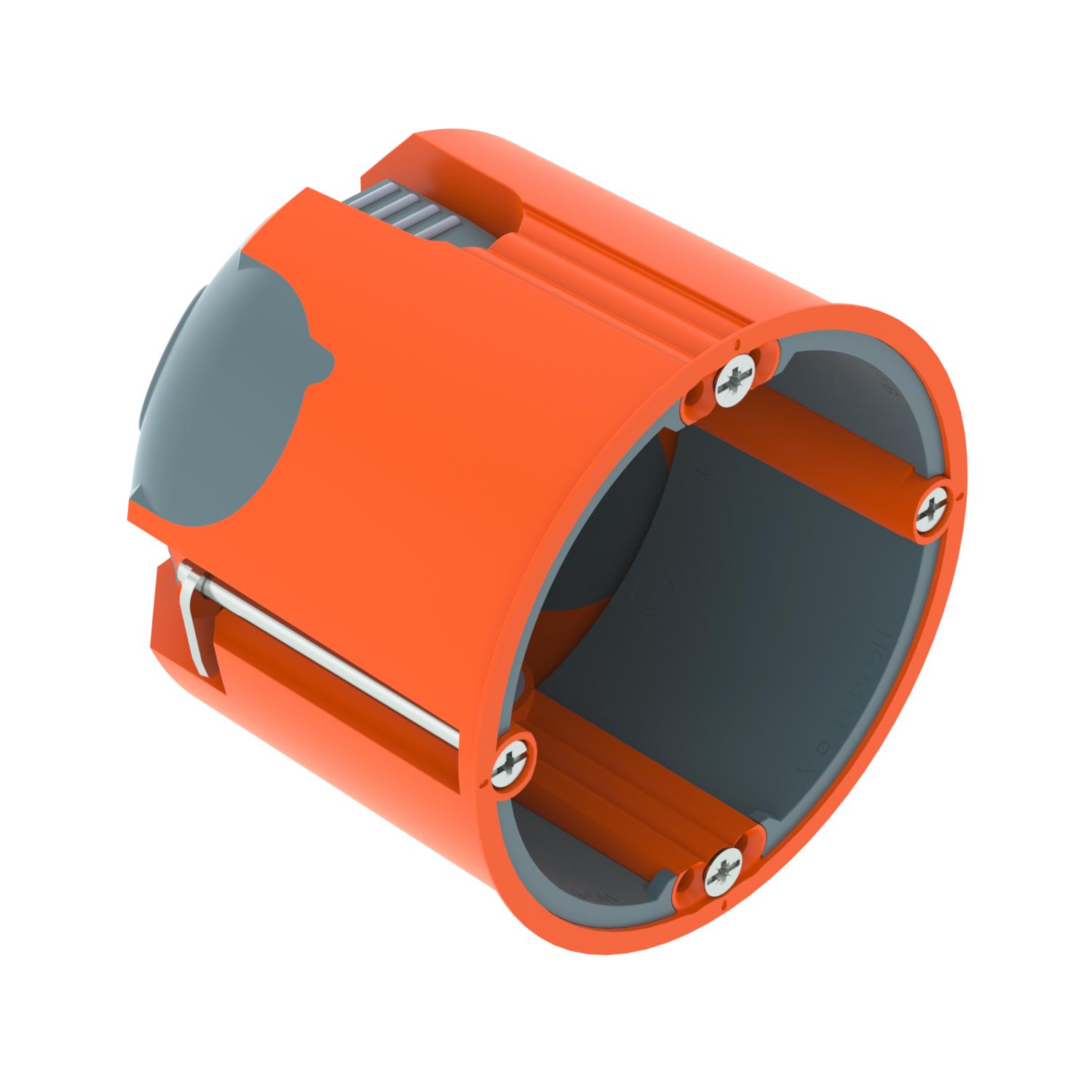

HG 61-LF fire protection cavity wall socket, air-tight
Item no. 7204324 | EAN 4012197384548
- Product description
-
Product descriptionFire protection cavity wall socket to close off electrical installation openings in fire-resistant walls.
• Device and connection socket, deep
• 2 x 3 screw domes
• Air-tight connection with other device sockets via connection nozzle, type ZH 11-V
• Max. 8 entries approved for cables with diameter ≤ 11 mm
• 2 M20/M25 entries (cable diameter ≤ 14 mm)
Delivery accessories: 5 x connection nozzles, type ZH 11-V
EI120/EI90 fire resistance (fire-resistant)
Approved in all installation zones according to DIN 18015-3, DIN 18040-2, DIN EN 17210
-
- Technical data
-
Technical data

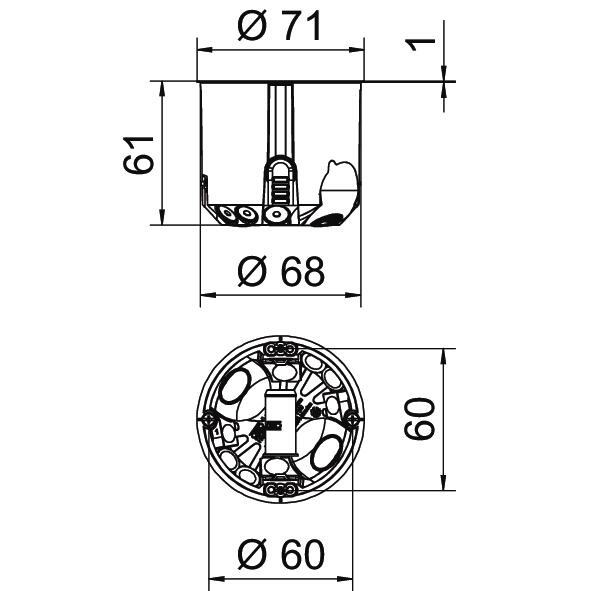

Colour orange / grey Dimension Ø68mm, H61mm Material Polypropylen / Thermoplastisches Elastomer - All types
- Downloads
-
Data sheet HG 61-LF / 7204324 , 0.16MB , pdfEU declaration of conformity HG 61-LF / 7204324 , 0.11MB , pdfMounting instructions Fire protection cavity wall socket , 1.31MB , pdfNo invitation to tender text is available for this product.
