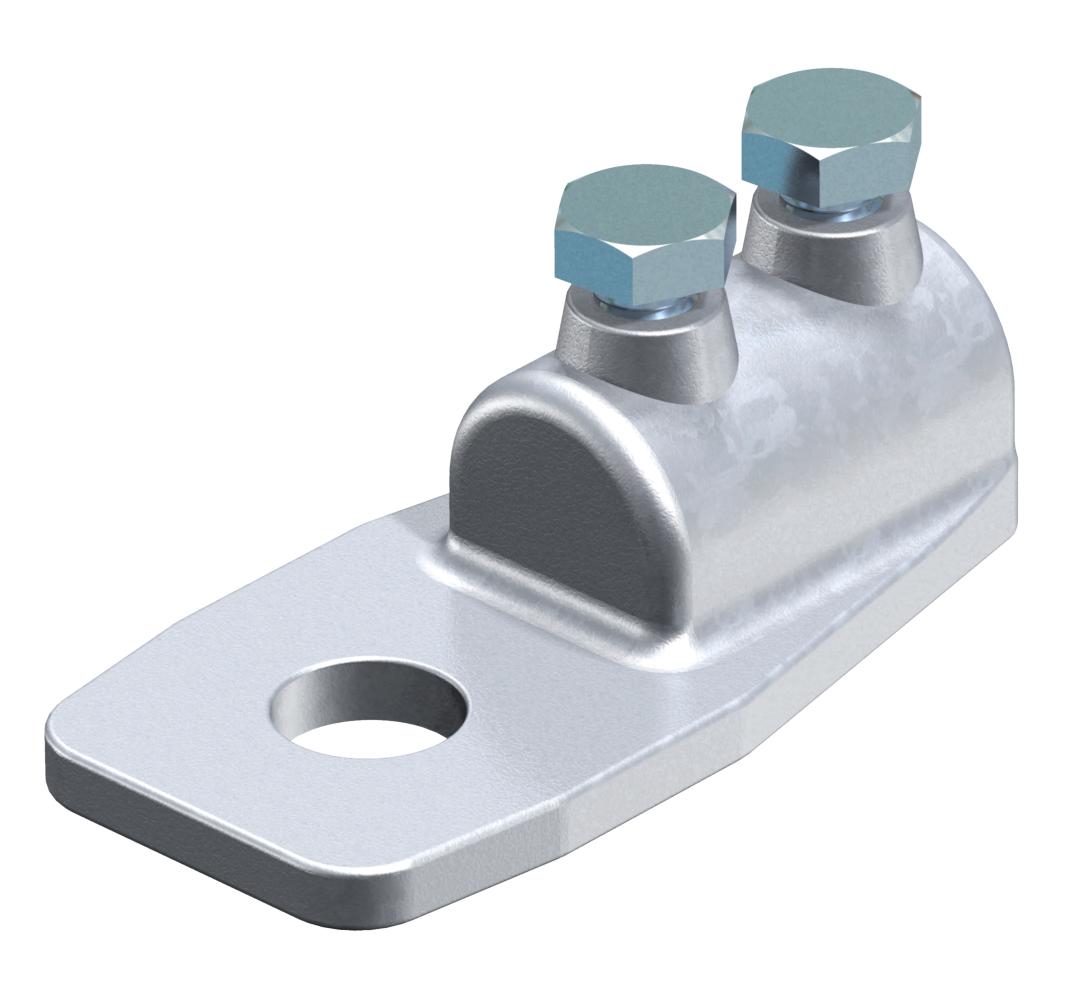

End piece
Item no. 5320011 | EAN 4012195421276
- Product description
-
Product description• With Ø 11 mm fastening hole
• 2 hexagonal bolts M6 x 12, bolts made of hot galvanised steel or of VA
• Clamping block made of die-cast zinc or copper-plated die-cast zinc
- Technical data
-
Technical data

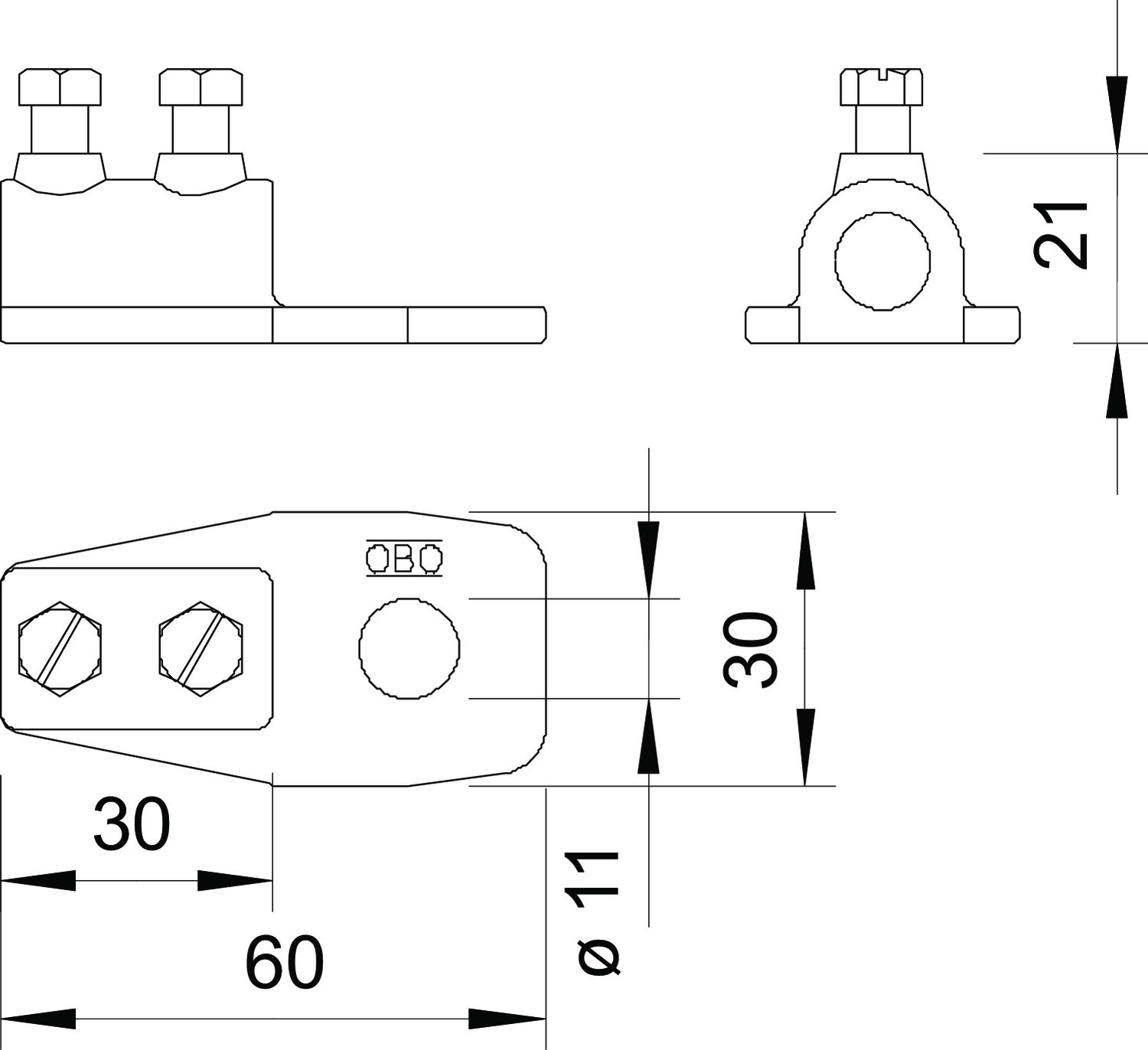

CO2 Footprint (GWP) Cradle-to-Gate 0,2995 kg CO2e / 1 Piece Dimension 60x30x20 Fastening hole 11 mm Fit Rd 8-10 mm Intermediate plate no Material Die-cast zinc Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Electrogalvanized Type of connector End piece Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 280 8-10 / 5320011 , 0.16MB , pdfEU declaration of conformity 280 8-10 / 5320011 , 0.06MB , pdf
