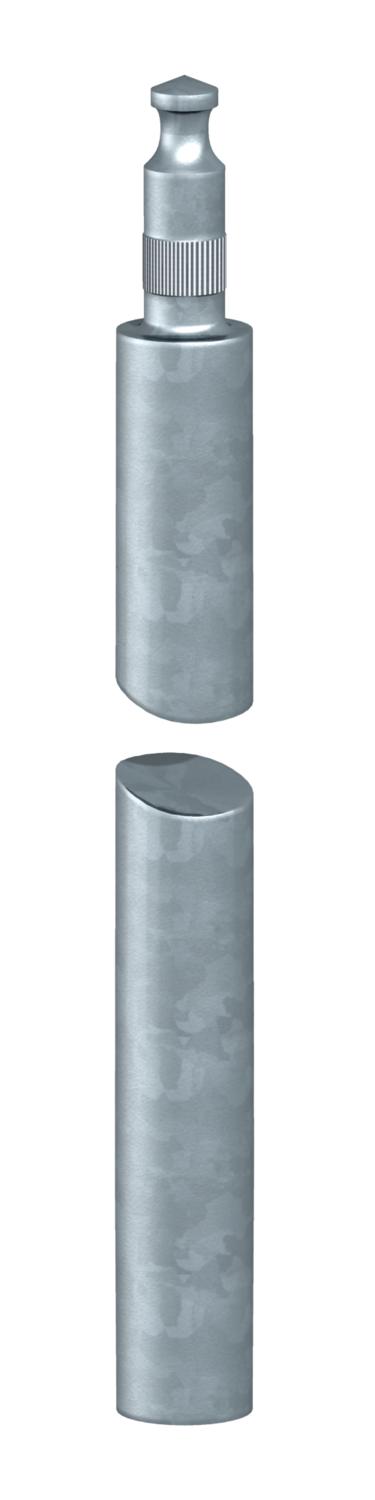

Earth rod BP
Item no. 5000947 | EAN 4012195371892
- Product description
-
Product description• "BP" system (Bundespost)
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• FT version with zinc coating approx. 130 µm
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
-
- Technical data
-
Technical data

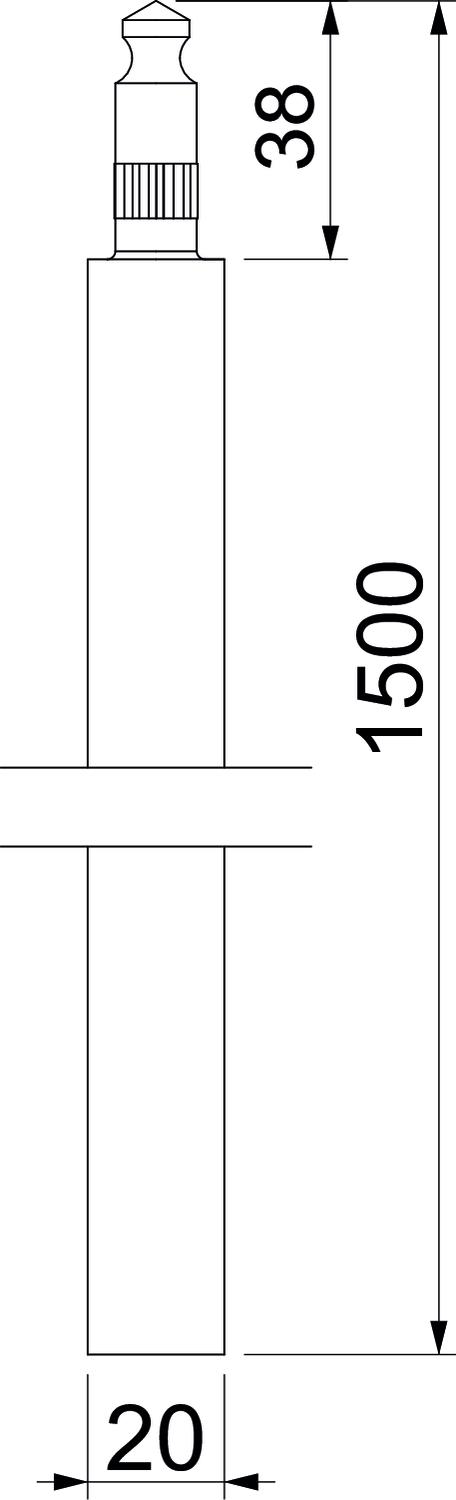

CO2 Footprint (GWP) Cradle-to-Gate 10,1912 kg CO2e / 1 Piece Dimension 1,5m Dimension L 1500 mm External diameter 20 mm Length 1500 mm Lightning current carrying capacity H/100 kA Material Steel Profile type Round D=20 mm Short-circuit current (50 HZ)(1 s;≤300°C) 7,9 kA Surface Hot-dip galvanised - All types
-
Mounting accessories
Products Types Item no.
Driving spike for ST and BP earth rod
1819 20BP 3041212
Driving head for ST, BP and OMEX earth rods
1820 20 3042200
Connection clip for earthing rod to round cables Rd 8−10
2710 20 FT 5001218
Connection clamp for earth rod on flat conductor FT
2730 20 FT 5001404
Connection clamp for earth rod, universal FT
2760 20 FT 5001641 - Downloads
-
Data sheet 219 20 BP FT / 5000947 , 0.19MB , pdfEU declaration of conformity 219 20 BP FT / 5000947 , 0.06MB , pdfREACH Declaration of conformity 219 20 BP FT / 5000947 , 0.13MB , pdfRoHS Declaration of conformity 219 20 BP FT / 5000947 , 0.13MB , pdfMounting instructions Mounting instructions, earth rod , 0.15MB , pdf
