Driving spike for ST and BP earth rod 20 | 20

morepic-1

morepic-2

Driving spike for ST and BP earth rod

Item no. 3041212 | EAN 4012195242772

Item no. / Types

Earther diameter

for earth rods

Product description

Product description

• Suitable for ST and BP system

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,1039 kg CO₂e / 1 Piece
Dimension	20mm
Earther diameter	20 mm

for earth rods	20 mm
Material	cast steel
Surface	Hot-dip galvanised

All types

All types

Types	Earther diameter	for earth rods	Item no.
1819 20BP	20 mm	20 mm	3041212
1819 25BP	25 mm	25 mm	3041956

Downloads

Data sheet 1819 20BP / 3041212 , 0.14MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

EU declaration of conformity 1819 20BP / 3041212 , 0.06MB , pdf

Download

REACH Declaration of conformity 1819 20BP / 3041212 , 0.12MB , pdf

Download

RoHS Declaration of conformity 1819 20BP / 3041212 , 0.13MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

Product graphic 1819 20BP / 3041212, 30.94 kB, jpg

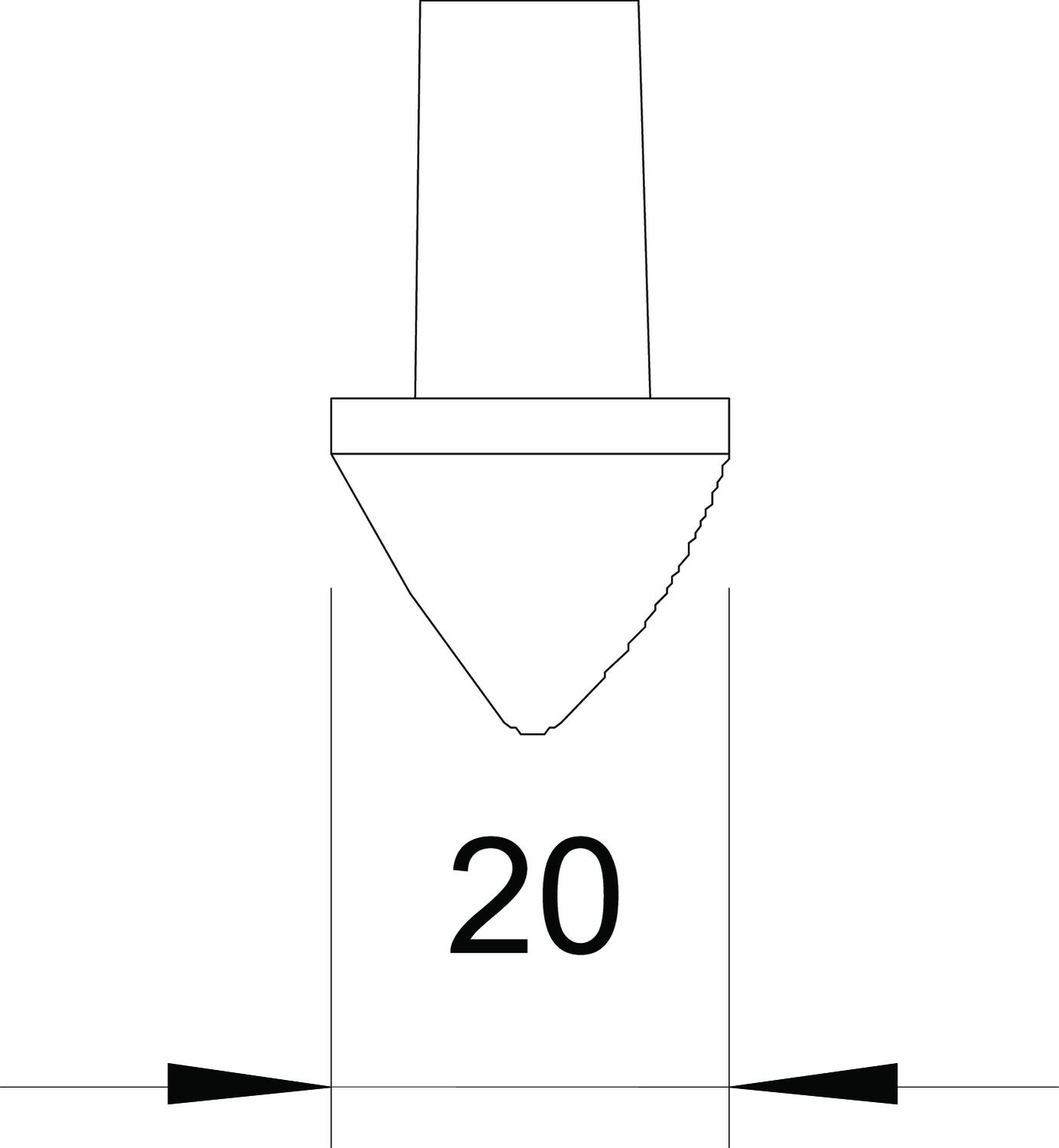

Scale drawing 1819 20BP / 3041212, 38.73 kB, jpg

1819 20BP / 3041212

Tiefen_und_Plattener_Schlagspitze_für_Staberder_ST_und_BP.rfa, 348.00 kB
