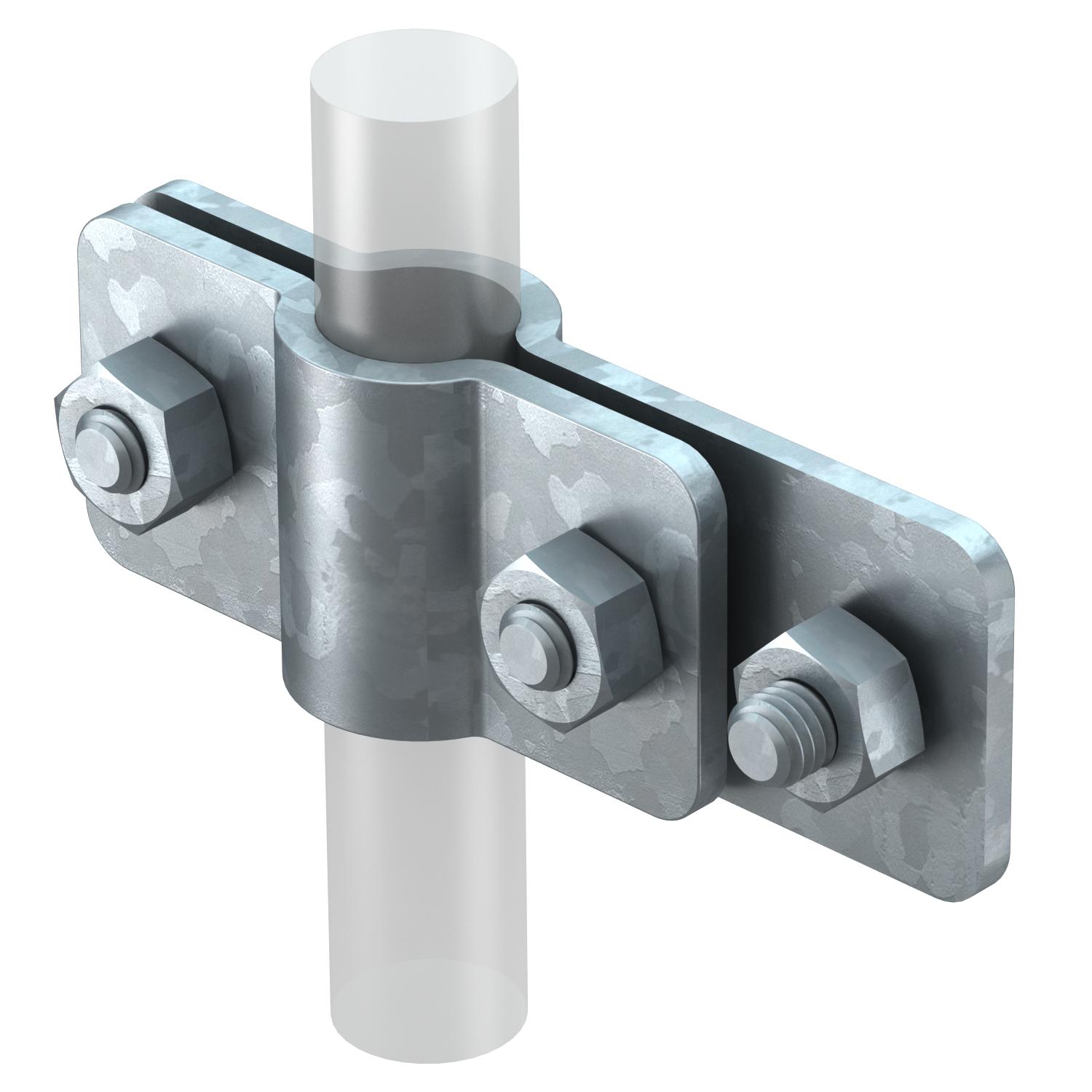

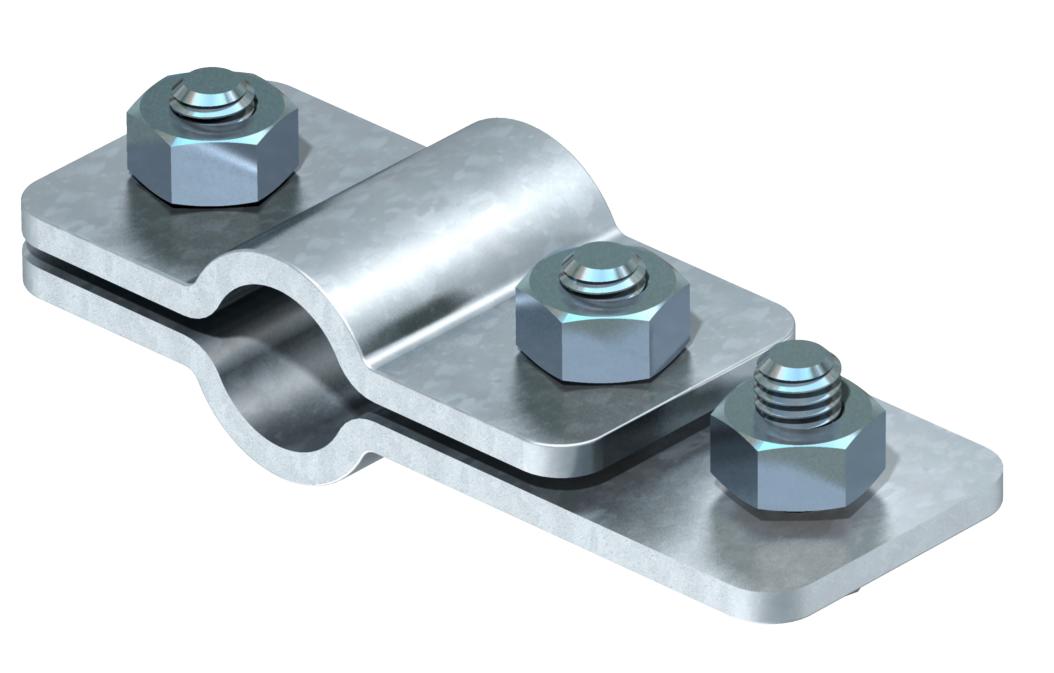

Connection clamp for earth rod on flat conductor FT
Item no. 5001404 | EAN 4012195372554
- Product description
-
Product description• ST, BP, OMEX and LightEarth systems
• On flat conductors
• Including hex-head screw for attaching flat conductors
-
- Technical data
-
Technical data

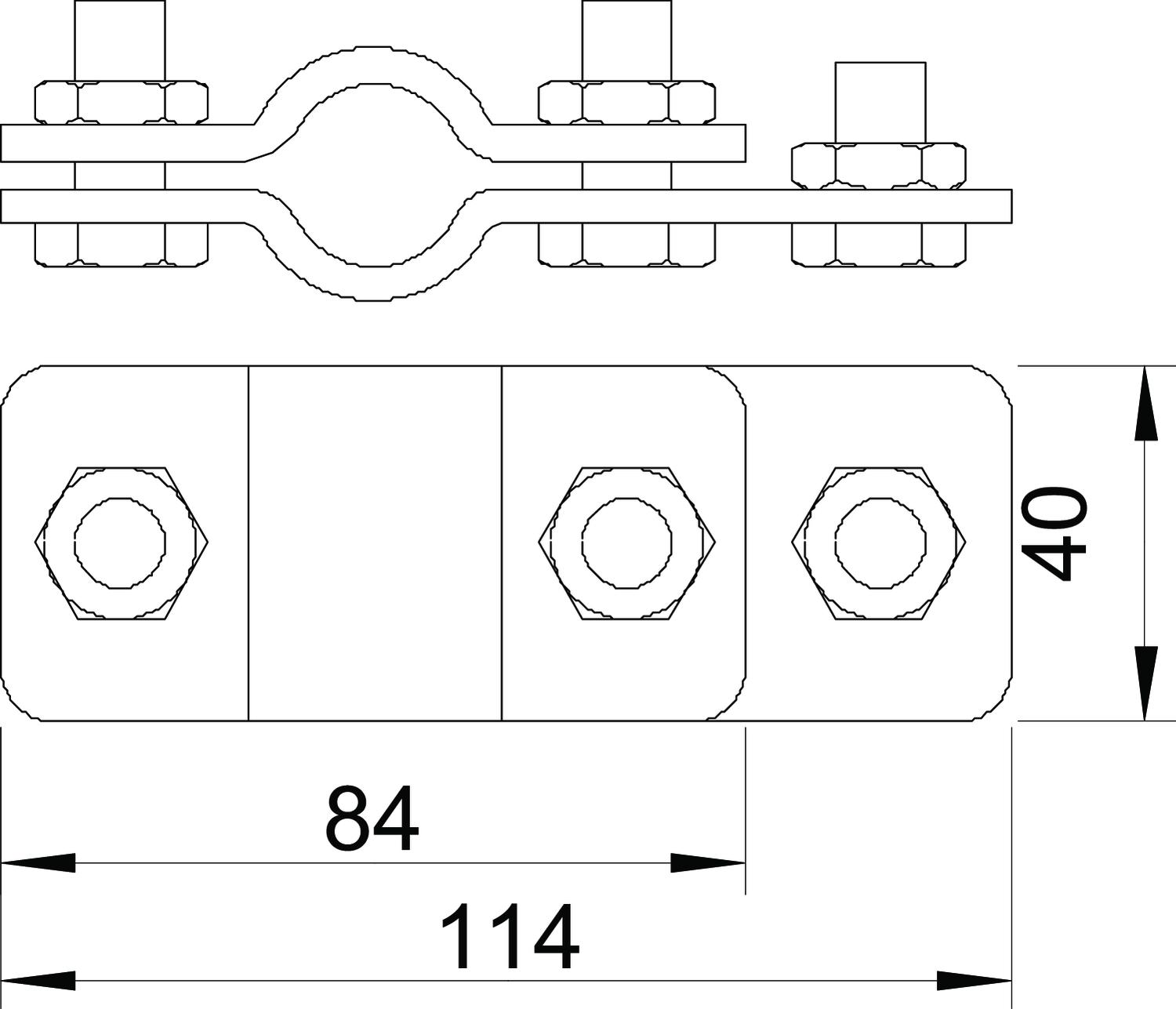

CO2 Footprint (GWP) Cradle-to-Gate 0,8024 kg CO2e / 1 Piece Dimension 20mm Dimension A 84 mm Dimension B 114 mm Earthing connection diameter 20 mm for earth rods 20 mm Intermediate plate no Material Steel Short-circuit current (50 HZ)(1 s;≤300°C) 7,9 kA Surface Hot-dip galvanised Type Connection clip - All types
