Earth rod BP

Item no. 5000955 | EAN 4012195371953

Item no. / Types

Length	1500 mm

External diameter

Material	Steel

Product description

Product description

• "BP" system (Bundespost)
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• FT version with zinc coating approx. 130 µm
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	15,935 kg CO2e / 1 Piece

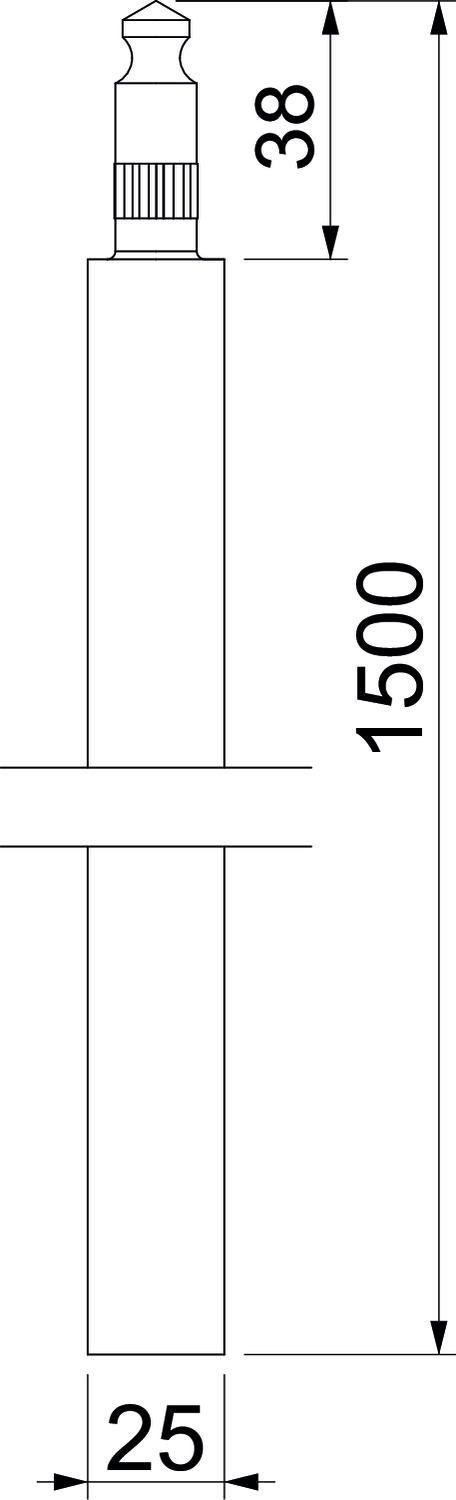

Dimension	1,5m
Dimension L	1500 mm
External diameter	25 mm
Length	1500 mm

Lightning current carrying capacity	H/100 kA
Material	Steel
Profile type	Round D=20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)	12,3 kA
Surface	Hot-dip galvanised

All types

All types

Types	Length	External diameter	Material	Item no.
219 20 BP FT	1500 mm	20 mm	Steel	5000947
219 25 BP FT	1500 mm	25 mm	Steel	5000955

Accessories

Mounting accessories

Products	Types	Item no.
Driving spike for ST and BP earth rod	1819 25BP	3041956
Driving head for ST, BP and OMEX earth rods	1820 25	3042251
Connection clip for earthing rod to round cables Rd 8−10	2710 25 FT	5001226
Connection clamp for earth rod on flat conductor FT	2730 25 FT	5001412
Connection clamp for earth rod, universal FT	2760 25 FT	5001668
