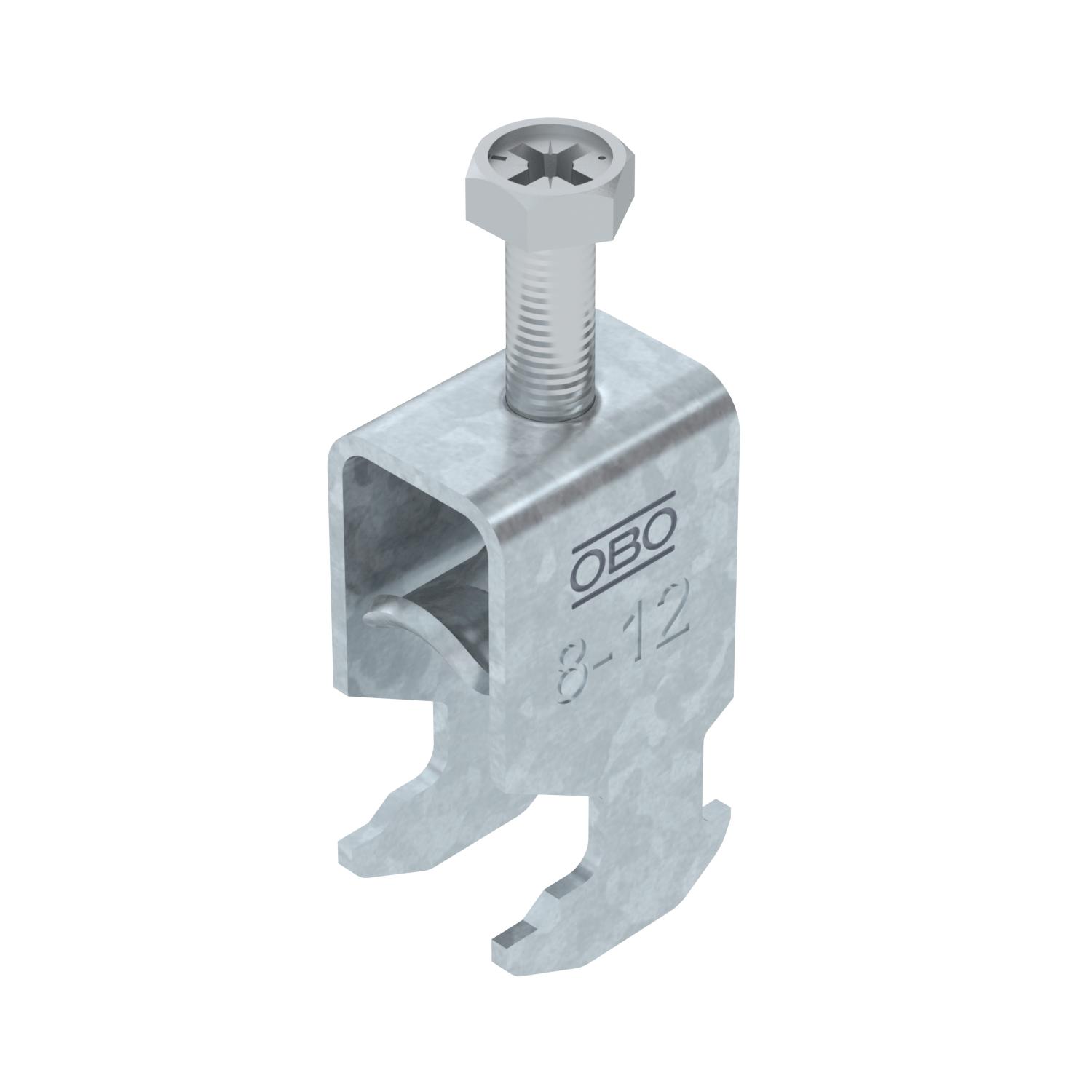

Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT

Item no. 1186002 | EAN 4012196846900

Product description
Product description
Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. The counter-sleeve must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
Technical data

Technical data

Clamping range D, max. 12 mm
Clamping range D, min. 8 mm
CO2 Footprint (GWP) Cradle-to-Gate 0,0877 kg CO₂e / 1 Piece

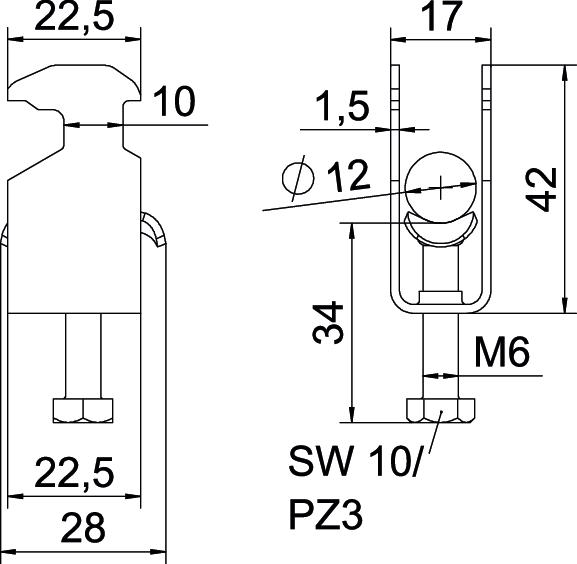

Dimension 08-12mm
Dimension A 22,5 mm
Dimension B 17 mm
Dimension C 28 mm
Dimension G (mm) M6
Dimension H 42 mm
Dimension L 34 mm
Dimension t 1,5 mm
For pipe diameter, max. 12 mm
For pipe diameter, min. 8 mm
for rail with slot width (with interval), max. 17 mm
for rail with slot width (with interval), min. 16 mm
Halogen-free yes
Height 42 mm
Length 22,5 mm
Length of external dimensions 28 mm
Maintain electrical functions yes
Material Steel
Material addition Steel
Material of trough Steel
Max. Tightening torque 3 Nm
Mounting type Profile rail
Number of cables/pipes 1
Plate thickness 1,5 mm
Slot width 10 mm
Surface Hot-dip galvanised
Surface addition hot galvanised
Thread M6
Width 17 mm
With counter-trough no
With metal trough yes
With plastic trough no
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no.
BS-H1-M-12 FT 8 mm 12 mm 3 Nm 1186002
BS-H1-M-16 FT 12 mm 16 mm 3 Nm 1186009
BS-H1-M-22 FT 16 mm 22 mm 3 Nm 1186016
BS-H1-M-28 FT 22 mm 28 mm 3 Nm 1186022
BS-H1-M-34 FT 28 mm 34 mm 3 Nm 1186029
BS-H1-M-40 FT 34 mm 40 mm 3 Nm 1186036
BS-H1-M-46 FT 40 mm 46 mm 5 Nm 1186042
BS-H1-M-52 FT 46 mm 52 mm 5 Nm 1186049
BS-H1-M-58 FT 52 mm 58 mm 5 Nm 1186056
BS-H1-M-64 FT 58 mm 64 mm 5 Nm 1186062
BS-H1-M-70 FT 64 mm 70 mm 5 Nm 1186069
BS-H1-M-76 FT 70 mm 76 mm 5 Nm 1186076
BS-H1-M-82 FT 76 mm 82 mm 5 Nm 1186082
BS-H1-M-90 FT 82 mm 90 mm 5 Nm 1186089
BS-H1-M-100 FT 90 mm 100 mm 5 Nm 1186097
