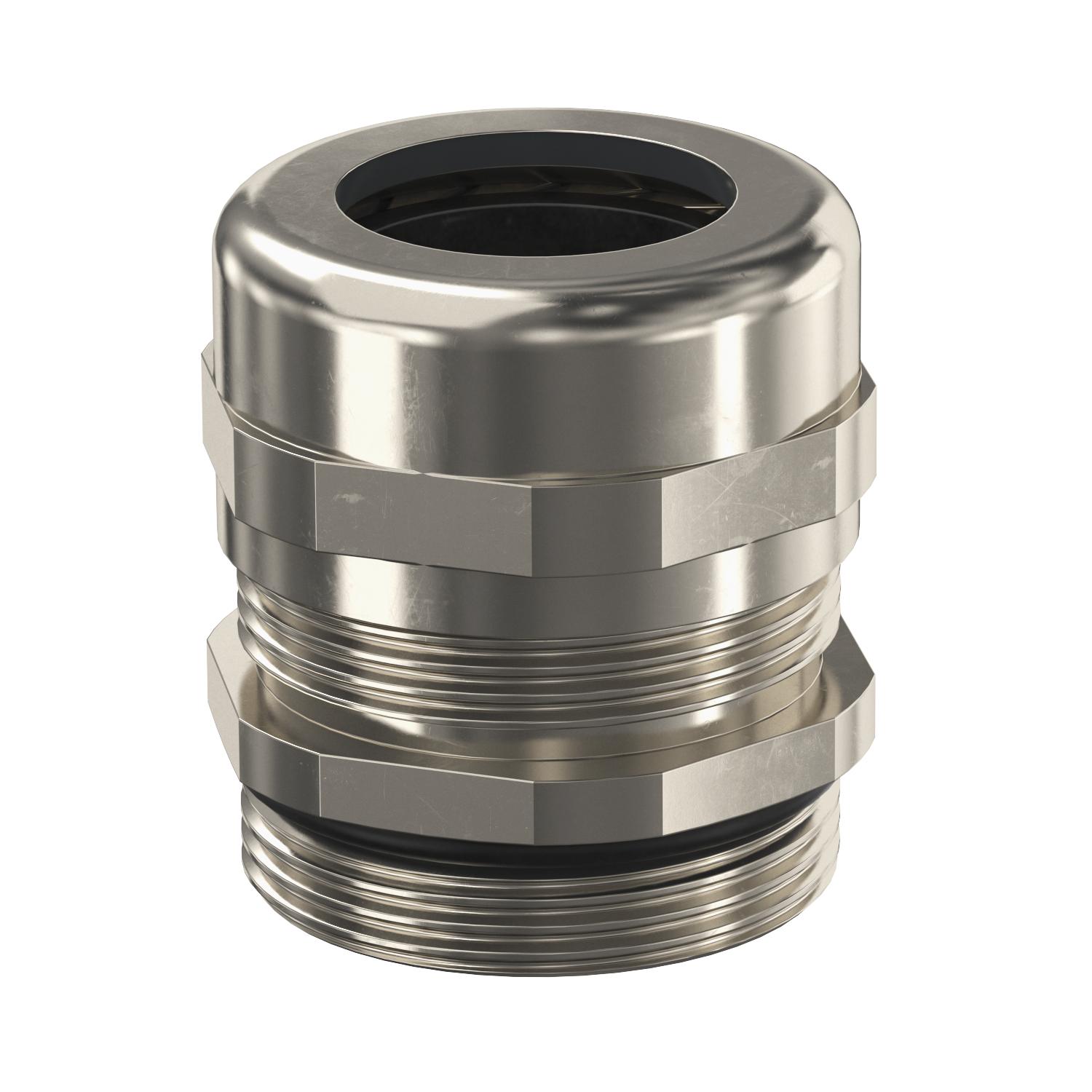

Cap nut cable gland, metric thread, silver grey, nickel-plated
Type V-TEC VM32 MS
Item no. 2086042
EAN 4012195809777



Item no. / Type
Thread
Smallest selling unit: 20 piece
20piece
piece
Description
Solid cable gland with metric connection thread to IEC 423 in cap nut design for high sealing demands. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made from neoprene. Clamping insert made from polyamide. With pre-mounted sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr, applicable temperature range –20 °C to +100 °C.
* Prices according to DEL notation.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. lock nuts, reducers, expansions, etc.) Use products made from polystyrene exclusively with polystyrene accessory parts.
* Prices according to DEL notation.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. lock nuts, reducers, expansions, etc.) Use products made from polystyrene exclusively with polystyrene accessory parts.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | no |
| Fibre-glass reinforced | no |
| explosion-proof | no |
| Strain relief option | yes |
| Protection rating | IP68 |
| Thread | M32 x 1,5 |
| For Ex zone | Without |
| Thread type | Metric |
| Bend protection | no |
| With locknut | no |
| Sealing insert, multiple | no |
| Flat cable gland | no |
| Type of seal | Sealing ring |
| Hexagonal corner dimension | 36 mm |
| Sealing area D, min. | 14 mm |
| Sealing area D, max. | 21 mm |
| WAF | 34 |
| Version for | Straight |
| ROHS-conformant | Exempt |
| Thread length | 8 mm |
| Unstable torque | 12 Nm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 100 °C |
| Dimension | M32 |
| Surface | Nickel-plated |
| Material | Brass |
| Product series | V-TEC VM |

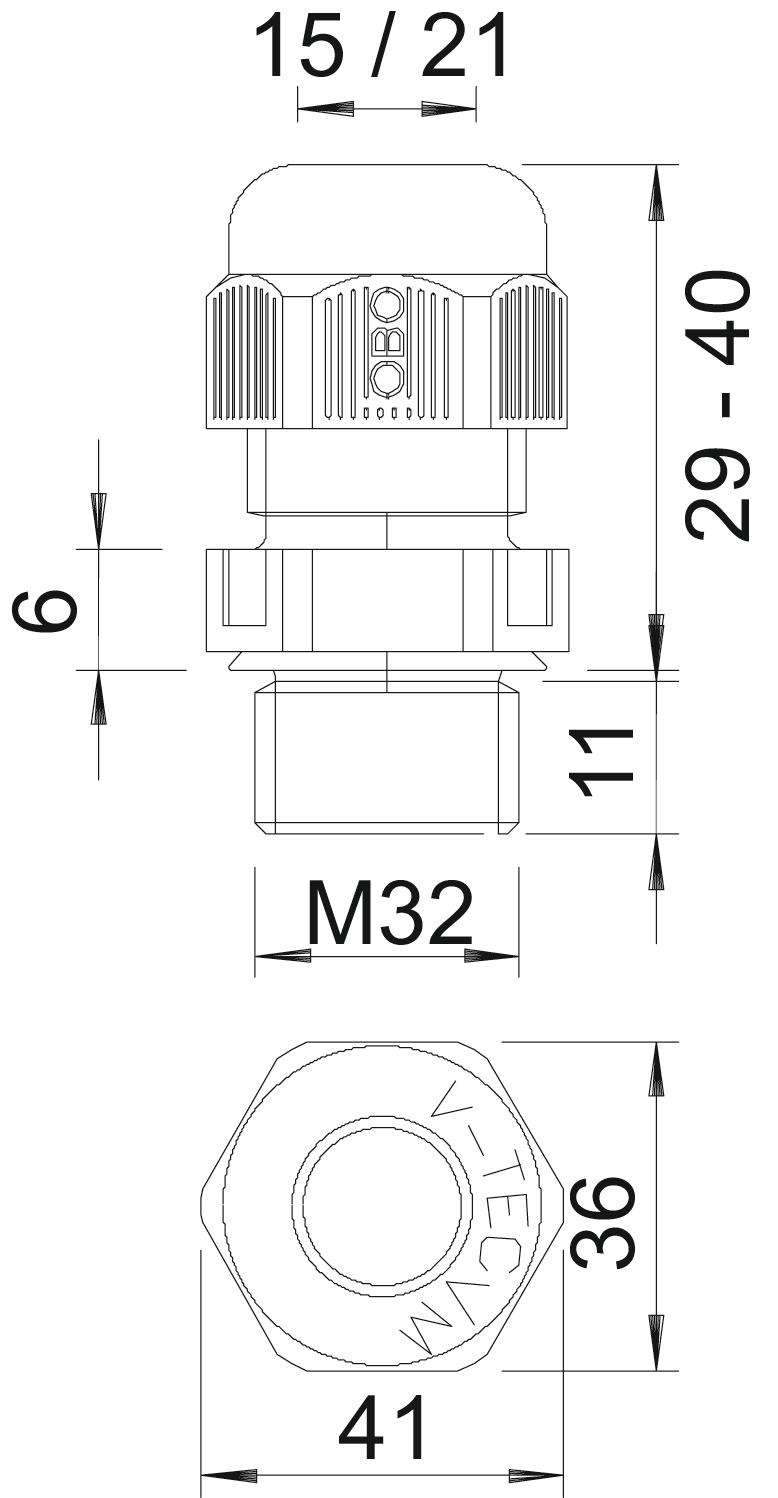

Dimensions
| Dimension L max. | 30 mm |
|---|---|
| Dimension L1 | 8 mm |
| Dimension L2 | 4,5 mm |
| Dimension L3 | 18,5 mm |
| Dimension E | 36 mm |
Environmental Data
0,2129 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2129 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,2129 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Thread
Sealing insert, multiple
Item no.
V-TEC VM12 MS
M12 x 1,5
no
2086018
V-TEC VM16 MS
M16 x 1,5
no
2086024
V-TEC VM20 MS
M20 x 1,5
no
2086030
V-TEC VM25 MS
M25 x 1,5
no
2086036
V-TEC VM32 MS
M32 x 1,5
no
2086042
V-TEC VM40 MS
M40 x 1,5
no
2086048
V-TEC VM50 MS
M50 x 1,5
no
2086054
V-TEC VM63 MS
M63 x 1,5
no
2086060
