Cable tray RKS-Magic® 60 FT 3050 | 100 | 60 | 1 | yes | zinc | Steel | Hot-dip galvanised

Cable tray RKS-Magic® 60 FT

Item no. 6047612 | EAN 4012195903895

Item no. / Types

Length	3050 mm

Width

Height	60 mm

Plate thickness	1 mm

Maintain electrical functions

Colour	zinc

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

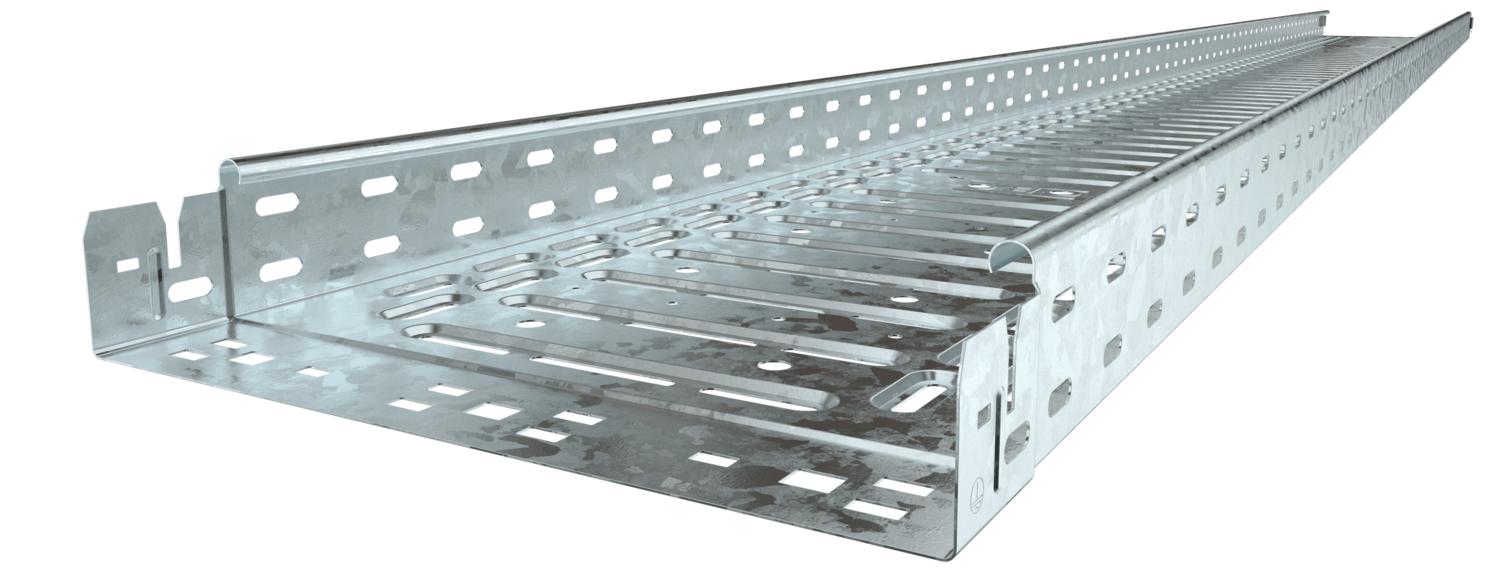

Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.

The perforation for direct threaded rod suspension has a diameter of 11 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

Base perforation	1.3
CO2 Footprint (GWP) Cradle-to-Gate	4,5534 kg CO2e / 1 Meter
Colour	zinc
Connector version	Integrated connector
Dimension	60x100x3050
Dimension B	100 mm
Dimension y	50 mm
Fire protection	Maintenance of electrical function of cable-specific support structure
Height	60 mm
Height	2 in
Length	10 ft
Length	3050 mm
Load test type according to IEC 61537	Type II
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	yes
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

NEMA load class	8AA
Plate thickness	1 mm
Plate thickness	0,03 in
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.0 m	1,2 kN/m
Support spacing 1.5 m	0,9 kN/m
Support spacing 2.0 m	0,6 kN/m
Support spacing 2.5 m	0,4 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Click fastening
Usable cross-section	58 cm²
Usable cross-section	5800 mm²
Usable length	3000 mm
Wide-span version	no
Width	100 mm
Width	4 in
With cover	no

Technical data

Load diagram, cable tray, type RKSM 60

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Height	Plate thickness	Maintain electrical functions	Colour	Material	Surface	Item no.
RKSM 610 FT	3050 mm	100 mm	60 mm	1 mm	yes	zinc	Steel	Hot-dip galvanised	6047612
RKSM 615 FT	3050 mm	150 mm	60 mm	1 mm	yes	zinc	Steel	Hot-dip galvanised	6047631
RKSM 660 FT	3050 mm	600 mm	60 mm	1 mm	no	zinc	Steel	Hot-dip galvanised	6047736
RKSM 620 FT	3050 mm	200 mm	60 mm	1 mm	yes	zinc	Steel	Hot-dip galvanised	6047639
RKSM 630 FT	3050 mm	300 mm	60 mm	1 mm	yes	zinc	Steel	Hot-dip galvanised	6047655
RKSM 640 FT	3050 mm	400 mm	60 mm	1 mm	yes	zinc	Steel	Hot-dip galvanised	6047690
RKSM 650 FT	3050 mm	500 mm	60 mm	1 mm	no	zinc	Steel	Hot-dip galvanised	6047720

Accessories

System accessories

Products	Types	Item no.

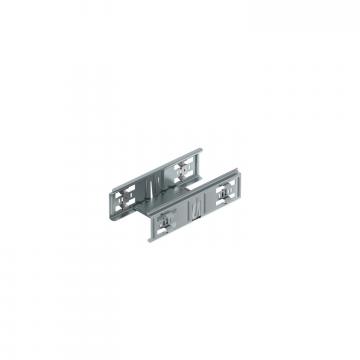

Magic straight connector set DD	KTSMV 610 DD	6068936
Cover with turn buckle FT	DRL 100 FT	6051340

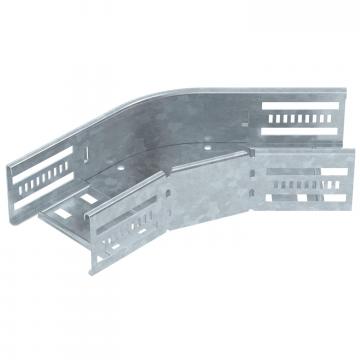

45° bend 60 FT	RB 45 610 FT	6036130

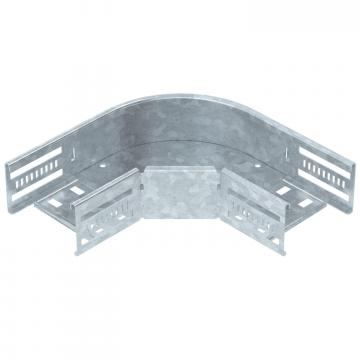

90° bend 60 FT	RB 90 610 FT	6036590

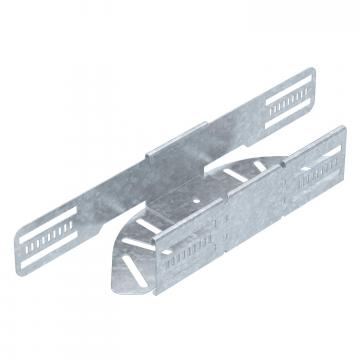

Bend, angle-adjustable, 60 FT	RB W 610 FT	6037120

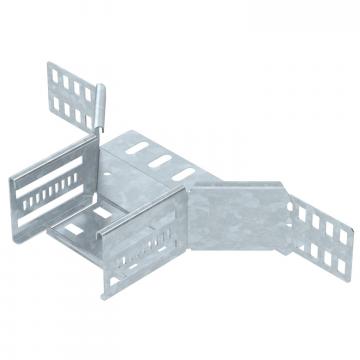

Add-on tee 60 FT	RAA 610 FT	6042211

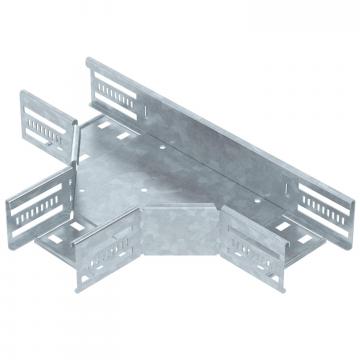

T piece 60 FT	RT 610 FT	6038130

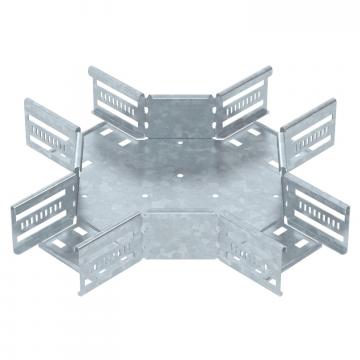

Cross-over 60 FT	RK 610 FT	7027411
Cover with turn buckle DD	DRL 100 DD	6052703
Barrier strip 60 DD	TSG 60 DD	6062327

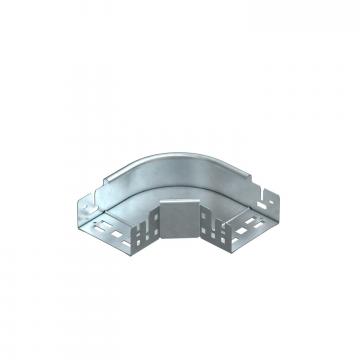

90° Magic bend 60 FT	RBM 90 610 FT	6041150
