Cable tray MKS 35 FT 3000 | 100 | 1 | no | Steel | Hot-dip galvanised
morepic-1 morepic-2 morepic-3 video-1

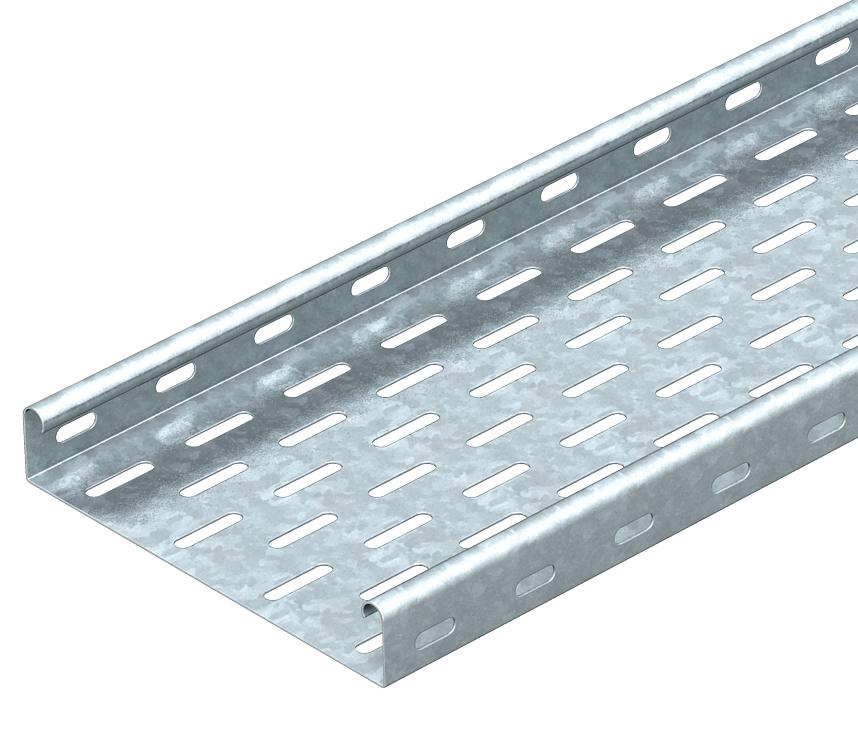

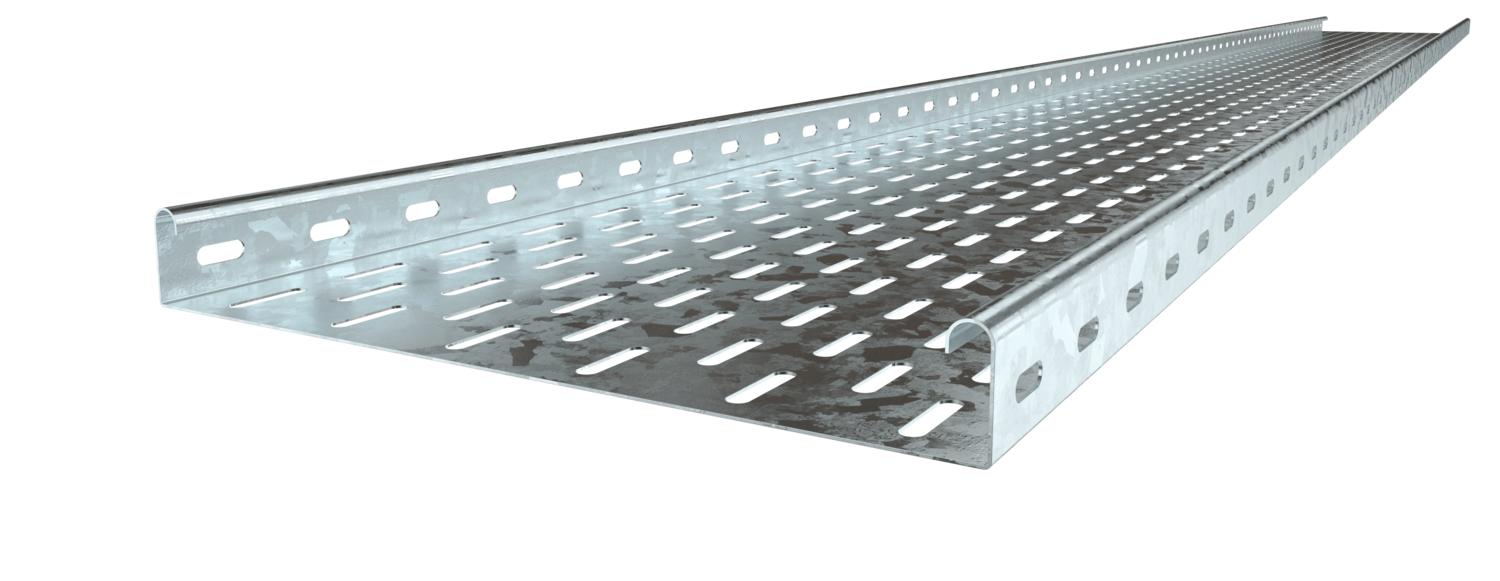

Cable tray MKS 35 FT

Item no. 6053106 | EAN 4012196059294

3000 mm
1 mm
no
Steel
Hot-dip galvanised
Product description
Product description
MKS 35 = Medium duty cable tray system with a side height of 35 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 3,6198 kg CO₂e / 1 Meter
Colour zinc
Connector version Without connectors

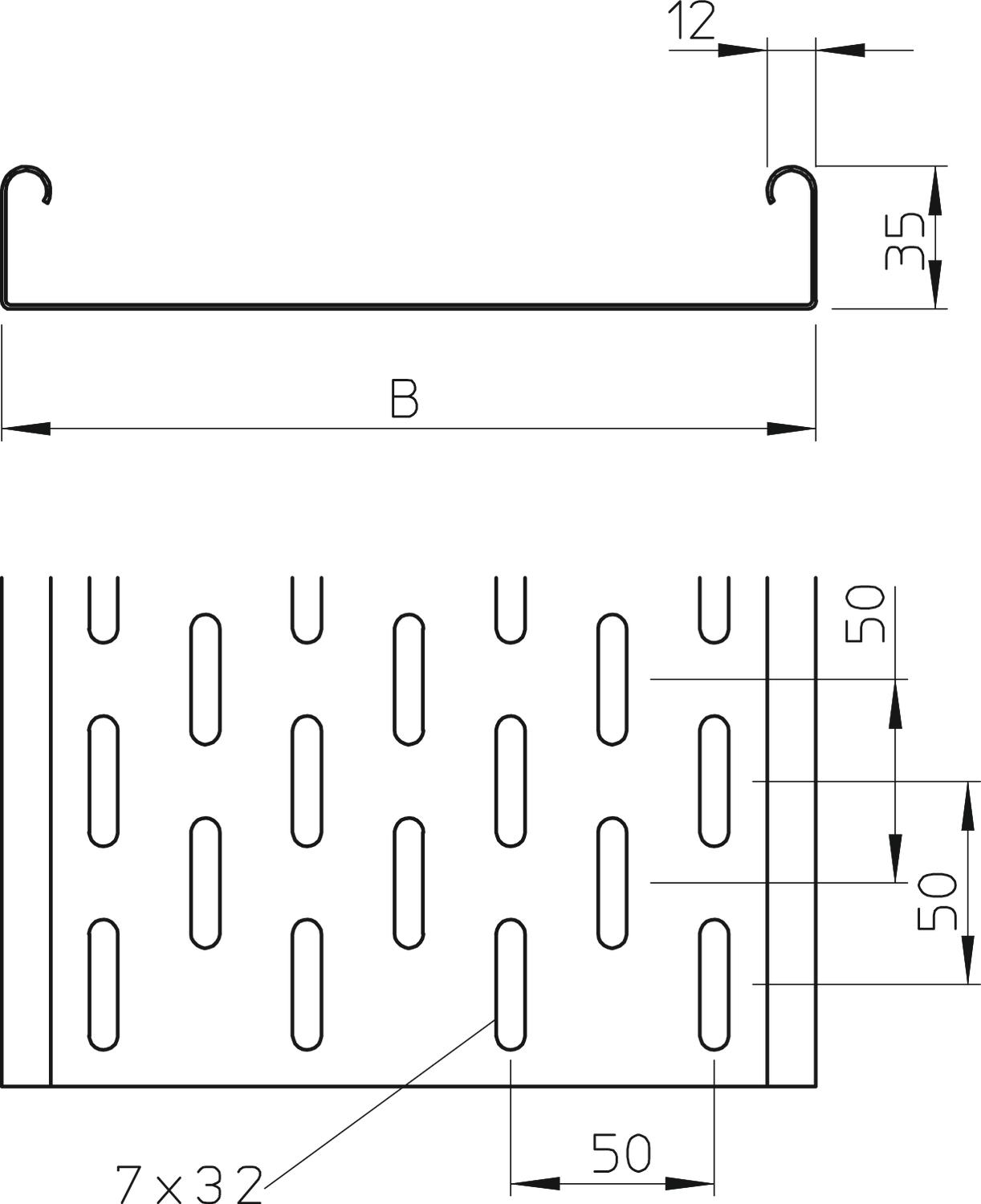

Dimension 35x100x3000
Dimension 35 x 100
Dimension B 100 mm
Height 35 mm
Length 10 ft
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1 mm
Plate thickness 0,04 in
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.0 m 1,2 kN/m
Support spacing 1.5 m 0,75 kN/m
Support spacing 2.0 m 0,55 kN/m
Support spacing 2.5 m 0,3 kN/m
Support spacing 3.0 m 0,2 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 33 cm²
Usable cross-section 3300 mm²
Wide-span version no
Width 4 in
Width 100 mm
With cover no

Technical data

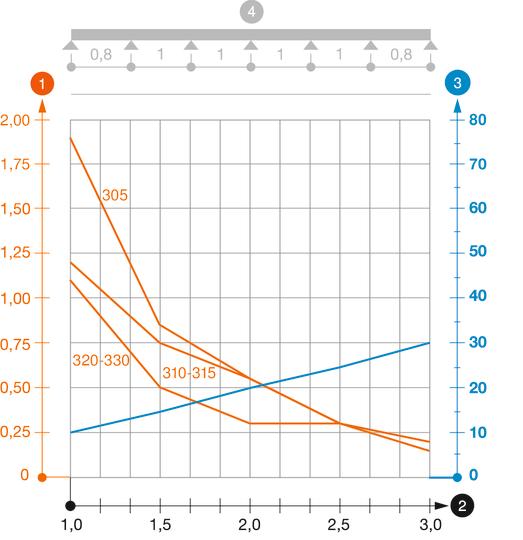

Load diagram, cable tray, type MKS 35

Load diagram, cable tray, type MKS 35
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no.
MKS 310 FT 3000 mm 100 mm 1 mm no Steel Hot-dip galvanised 6053106
MKS 320 FT 3000 mm 200 mm 1 mm no Steel Hot-dip galvanised 6053203
MKS 330 FT 3000 mm 300 mm 1 mm no Steel Hot-dip galvanised 6053300
Accessories

System accessories

Products Types Item no.
Straight connector FT Straight connector FT RLVK 35 FT 6067301
Cover with turn buckle FT Cover with turn buckle FT DRL 100 FT 6051340

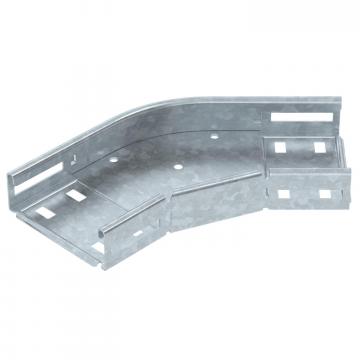

45° bend 35 FT 45° bend 35 FT RB 45 310 FT 6036010

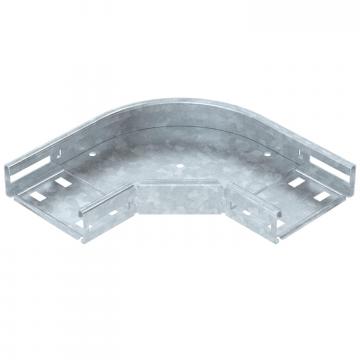

90° bend 35 FT 90° bend 35 FT RB 90 310 FT 6036510

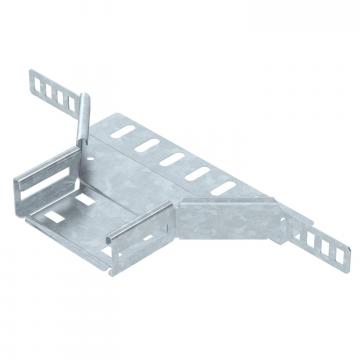

Add-on tee 35 FT Add-on tee 35 FT RAA 310 FT 6042201

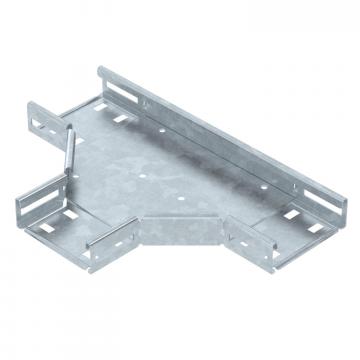

T piece 35 FT T piece 35 FT RT 310 FT 6038010

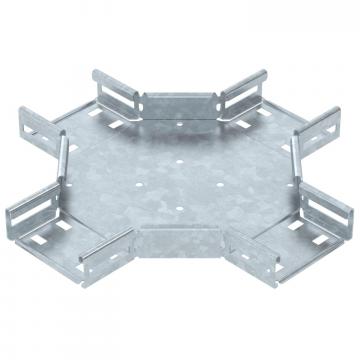

Cross-over 35 FT Cross-over 35 FT RK 310 FT 7027401
Cover with turn buckle DD Cover with turn buckle DD DRL 100 DD 6052703
Barrier strip 30 DD Barrier strip 30 DD TSG 30 DD 6062314
