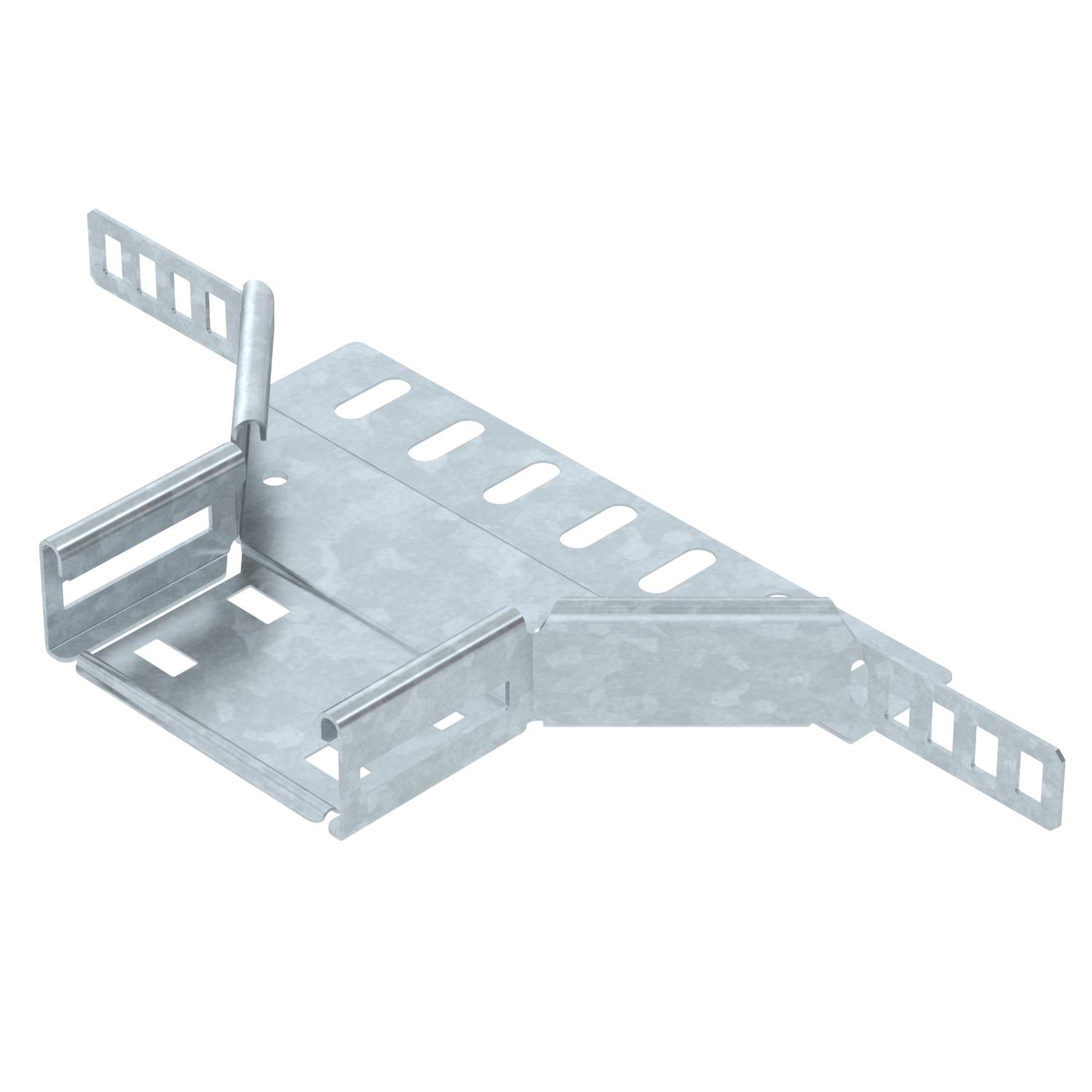

Add-on tee 35 FT
Item no. 6042201 | EAN 4012197342272
- Product description
-
Product descriptionAdd-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,9368 kg CO2e / 1 Piece Colour zinc Connector version Integrated connector Departing width 100 mm Dimension 35x100 Dimension B 100 mm Height 35 mm Maintain electrical functions no Material Steel Material thickness, floor plate 0,8 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 6 St. Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Screwed Wide-span version no Width 100 mm - All types
-
System accessories
Products Types Item no.
Cover for add-on tee DD
RAAD 100 DD 6042431 Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
Data sheet RAA 310 FT / 6042201 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RAA 310 FT / 6042201 , 0.10MB , pdfUK Declaration of Conformity RAA 310 FT / 6042201 , 0.09MB , pdfREACH Declaration of conformity RAA 310 FT / 6042201 , 0.12MB , pdfRoHS Declaration of conformity RAA 310 FT / 6042201 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
