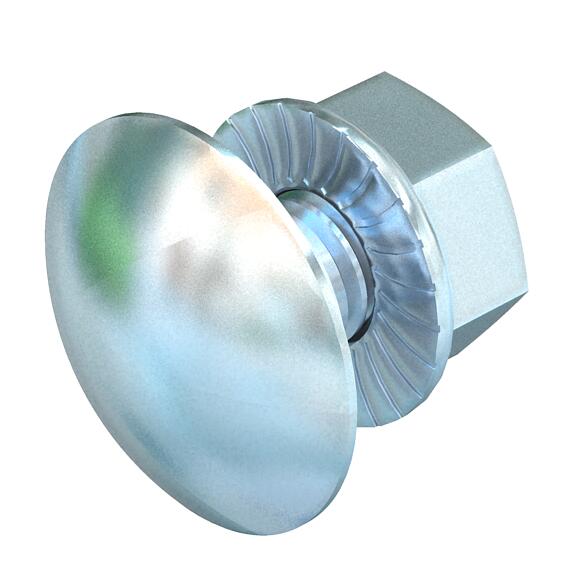

Truss-head bolt with flange nut F
Item no. 6406122 | EAN 4012196199815
- Product description
-
Product descriptionTruss-head bolt with square neck including flange nut.
-
- Technical data
-
Technical data

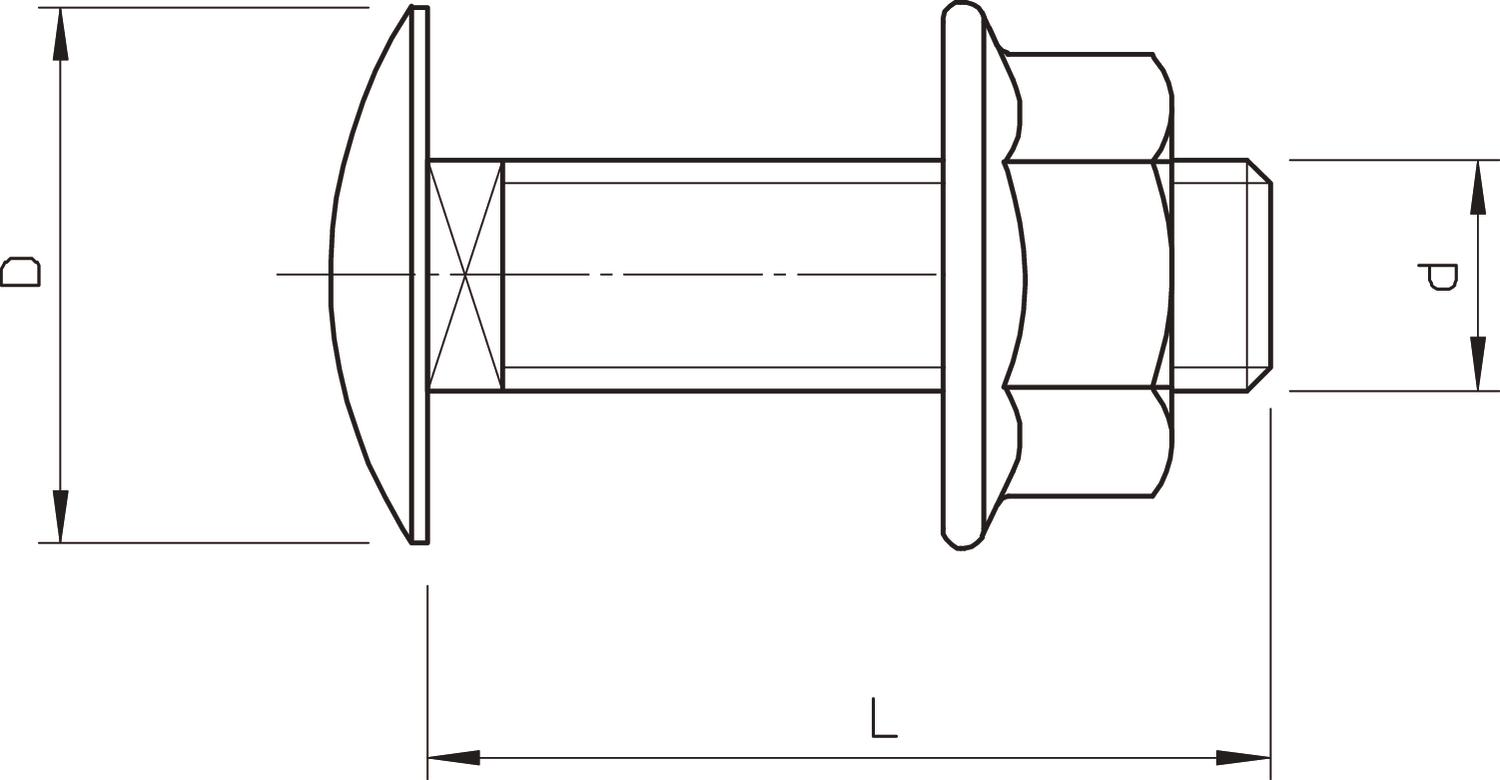

CO2 Footprint (GWP) Cradle-to-Gate 0,0184 kg CO2e / 1 Piece Colour zinc Dimension M6x12 Dimension D 13,5 mm Dimension d 6 mm Dimension L 12 mm Full thread yes Left thread no Length 12 mm Material Steel Resistance grade 5.6 Screw system Miscellaneous Self-locking no Surface Hot galvanized Thread metric 6 Thread type Metric WAF 10 With flange no With nut yes With washer no - All types
- Downloads
-
Data sheet FRSB 6x12 F / 6406122 , 0.17MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity FRSB 6x12 F / 6406122 , 0.06MB , pdfREACH Declaration of conformity FRSB 6x12 F / 6406122 , 0.12MB , pdfRoHS Declaration of conformity FRSB 6x12 F / 6406122 , 0.13MB , pdfSelection aid Selection aid for cable trays, Magic , 0.23MB , pdfSelection aid Selection aid cable trays, screwable , 2.17MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions Screwable cable trays with fittings for screwing and clamping , 5.98MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
