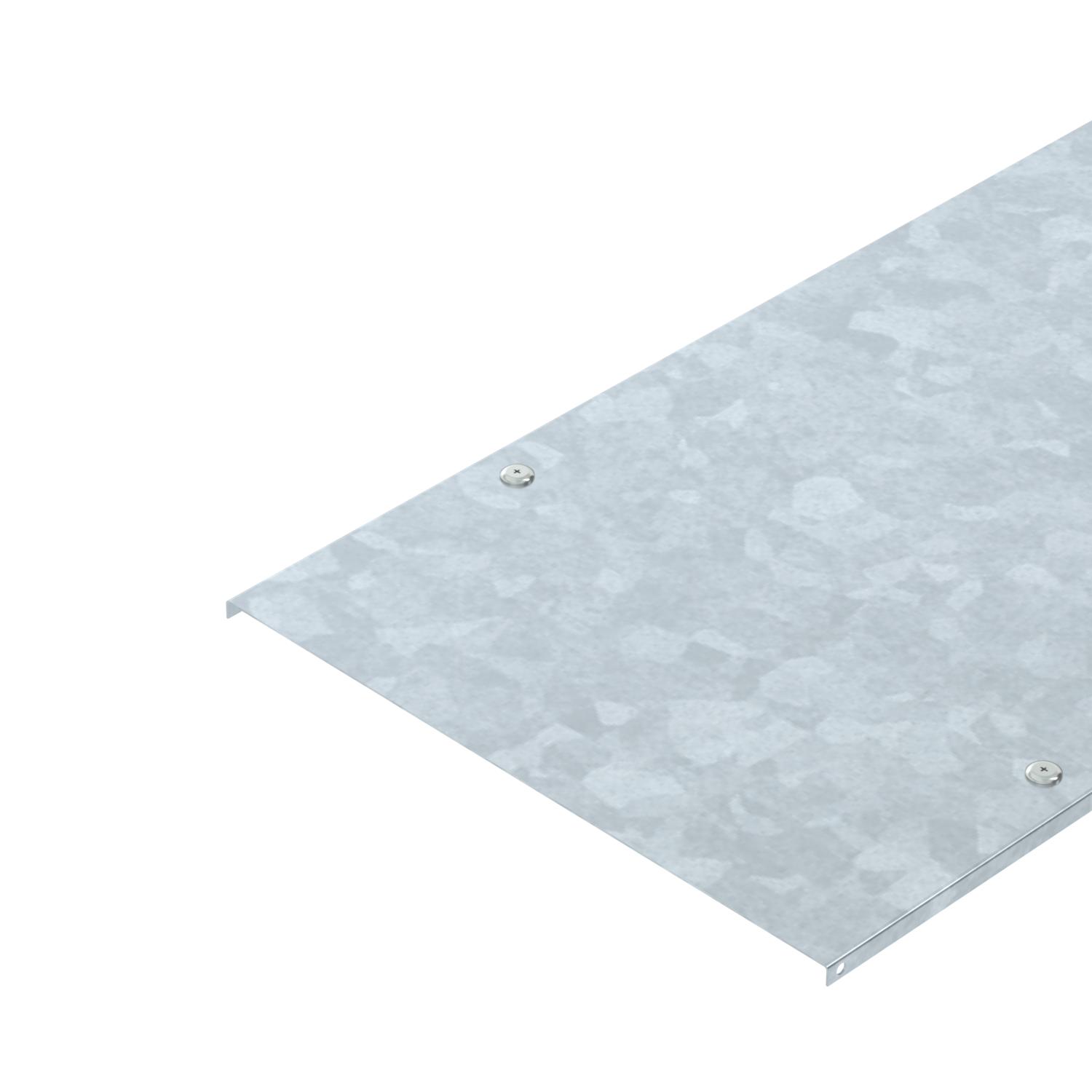

Cover with turn buckle FT 3000 | 100 | 1

Cover with turn buckle FT

Item no. 6051340 | EAN 4012196432370

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

Cover for cable trays and cable ladders with three pairs of turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	2,5117 kg CO2e / 1 Meter
Colour	zinc
Dimension	100x3000
Dimension B	100 mm
Fastening type	Sash lock
Height	13 mm
Length	3000 mm
Length	10 ft
Maintain electrical functions	no
Material	Steel

Number of turn buckles	6 St.
Plate thickness	0,03 in
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Hot-dip galvanised
Width	100 mm
Width	4 in

All types

All types

Types	Length	Width	Plate thickness	Item no.
DRL 100 FT	3000 mm	100 mm	1 mm	6051340
DRL 150 FT	3000 mm	150 mm	1 mm	6051359
DRL 200 FT	3000 mm	200 mm	1 mm	6051367
DRL 300 FT	3000 mm	300 mm	1 mm	6051383
DRL 400 FT	3000 mm	400 mm	1.5 mm	6051413
DRL 500 FT	3000 mm	500 mm	1.5 mm	6051448
DRL 600 FT	3000 mm	600 mm	1.5 mm	6051472
