Cross-over 35 FT
Item no. 7027401 | EAN 4012197338992
- Product description
-

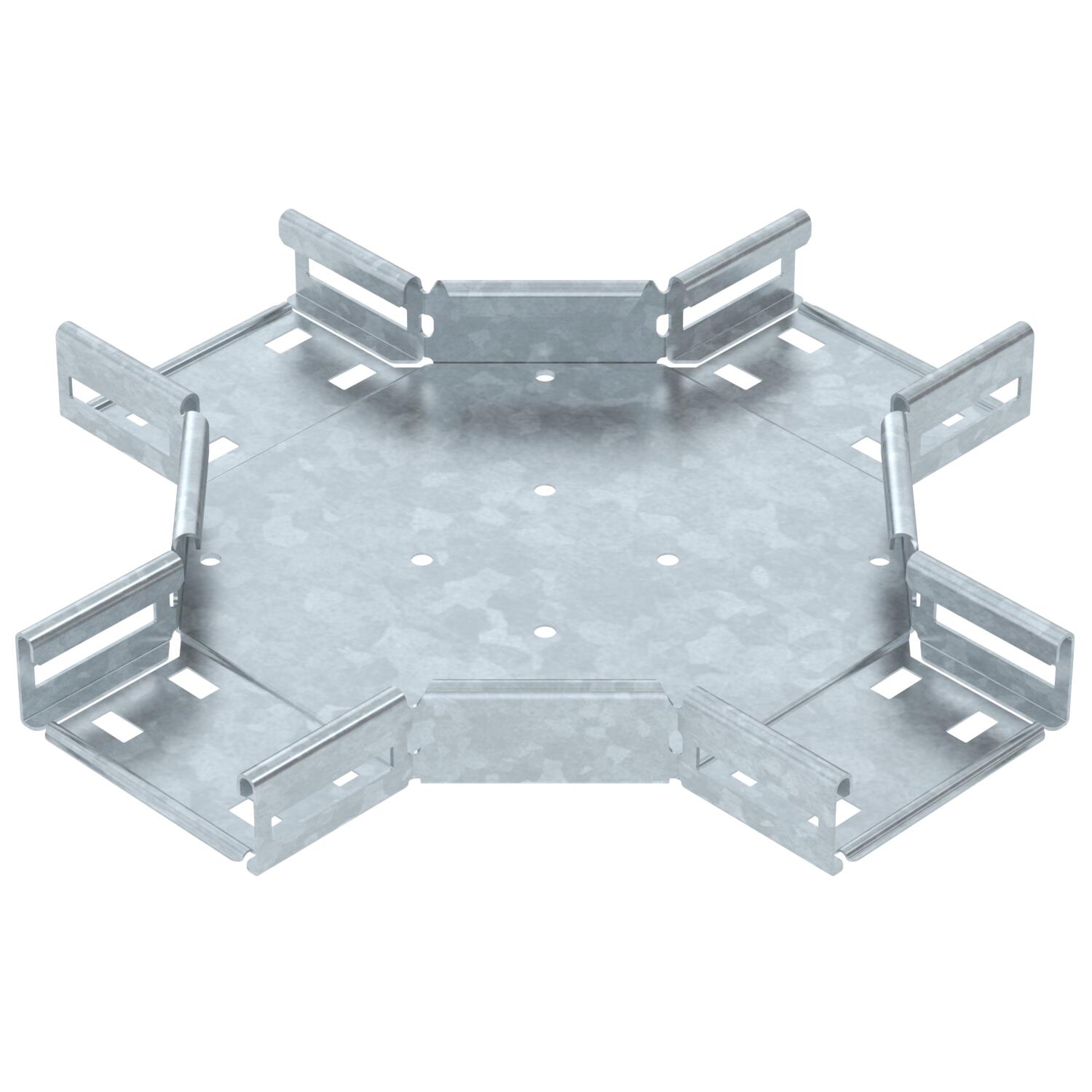

Product descriptionCross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

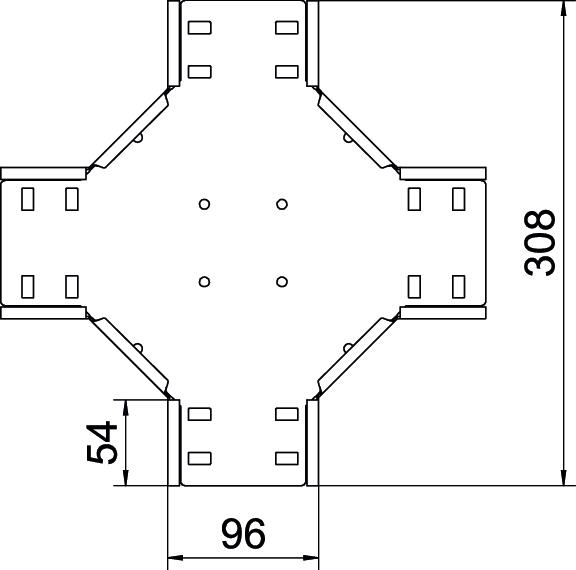

Colour zinc Connector version Integrated connector Dimension 35x100 Dimension B 100 mm Dimension R 50 mm Height 35 mm Maintain electrical functions no Material Steel Material thickness, floor plate 0,8 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 12 St. Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Screwed Wide-span version no Width 100 mm - All types
-
System accessories
Products Types Item no.
Cover, cross-over FS
RKD 400 FS 7027806 Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
Data sheet RK 310 FT / 7027401 , 0.20MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RK 310 FT / 7027401 , 0.10MB , pdfREACH Declaration of conformity RK 310 FT / 7027401 , 0.12MB , pdfRoHS Declaration of conformity RK 310 FT / 7027401 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
