Cable gland with locknut as a set
Type V-TEC VM20+ OR
Item no. 7205660
EAN 4012196028238
Item no. / Type
Thread
Smallest selling unit: 10 piece
10piece
piece
Description
Robust cap nut cable gland with metric connecting thread to IEC 423, including pre-mounted locknut.
For high tightness requirements. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, no connection thread sealing ring required.
VDE-tested according to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr.
For maintenance of electrical function according to DIN 4102 Part 12 in connection with the closed junction boxes of the FireBox T series.
Colour: Pastel orange.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. lock nuts, reducers, expansions, etc.) Use products made from polystyrene exclusively with polystyrene accessory parts.
For high tightness requirements. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, no connection thread sealing ring required.
VDE-tested according to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr.
For maintenance of electrical function according to DIN 4102 Part 12 in connection with the closed junction boxes of the FireBox T series.
Colour: Pastel orange.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. lock nuts, reducers, expansions, etc.) Use products made from polystyrene exclusively with polystyrene accessory parts.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| Strain relief option | yes |
| Protection rating | IP68 |
| Thread | M20 x 1,5 |
| For Ex zone | Without |
| Thread type | Metric |
| Bend protection | no |
| With locknut | yes |
| Sealing insert, multiple | no |
| Flat cable gland | no |
| Splittable gland | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Thread increase | 1,5 mm |
| Sealing area D, min. | 6 mm |
| Sealing area D, max. | 13 mm |
| WAF | 24 |
| Dimension E1 (mm) | 27 mm |
| Dimension E2 | 27 mm |
| ROHS-conformant | yes |
| Thread length | 9 mm |
| WAF 1 | 24 mm |
| WAF 2 | 24 mm |
| Unstable torque | 3,8 Nm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 65 °C |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | M20 |
| Material | Polyamide |
| Colour | Pastel orange; RAL 2003 |
| Product series | FireBox T-series |

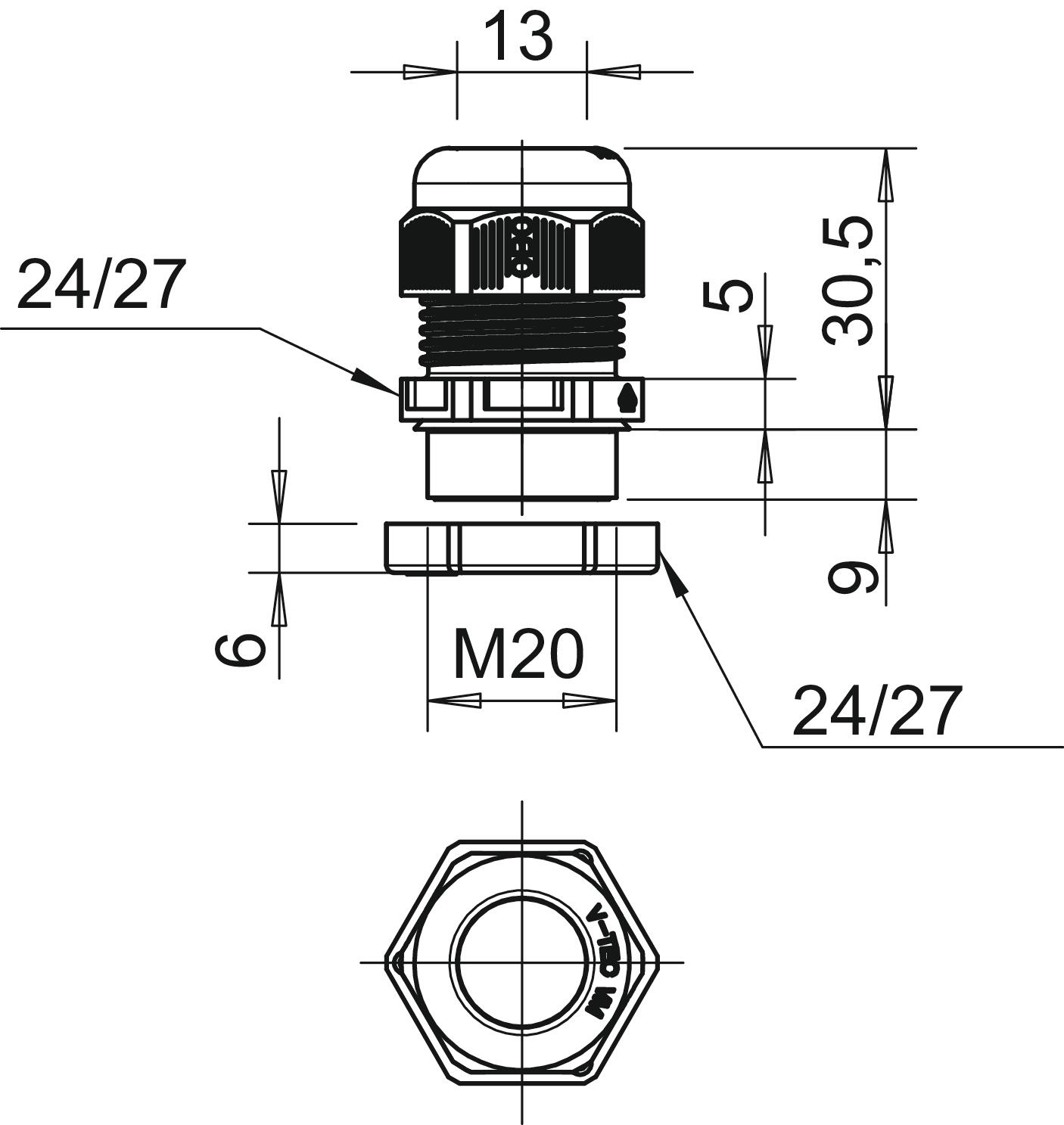

Dimensions
| Dimension G | M20 x 1,5 mm |
|---|---|
| Dimension L min. | 23,5 mm |
| Dimension L max. | 30,5 mm |
| Dimension L1 | 9 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 6 mm |
| Dimension E | 27 mm |
Environmental Data
0,0553 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0553 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0553 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
