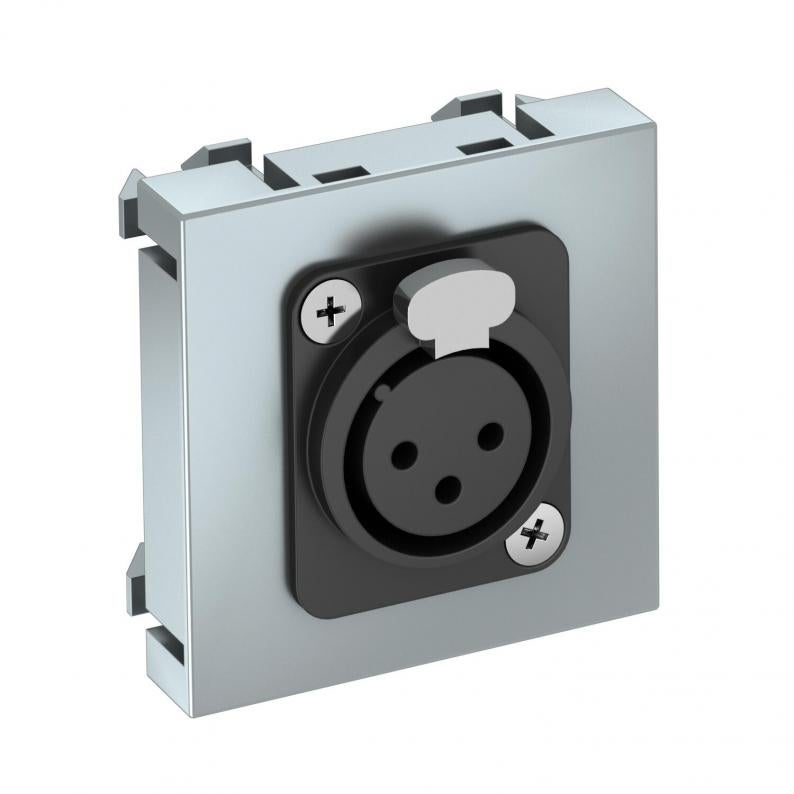

XLR connection, 1 module, straight outlet, 3-pin socket, as soldered connection, aluminium-painted

XLR connection, 1 module, straight outlet, 3-pin socket, as soldered connection, aluminium-painted

Type MTG-X3F L AL1
Item no. 6105216
EAN 4012195900009
Show all variants
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

Multimedia support with one XLR connection socket, straight cable outlet, without labelling panel, 3-pin XLR socket with soldered connection. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • CO₂ footprint (PCF)

Technical data

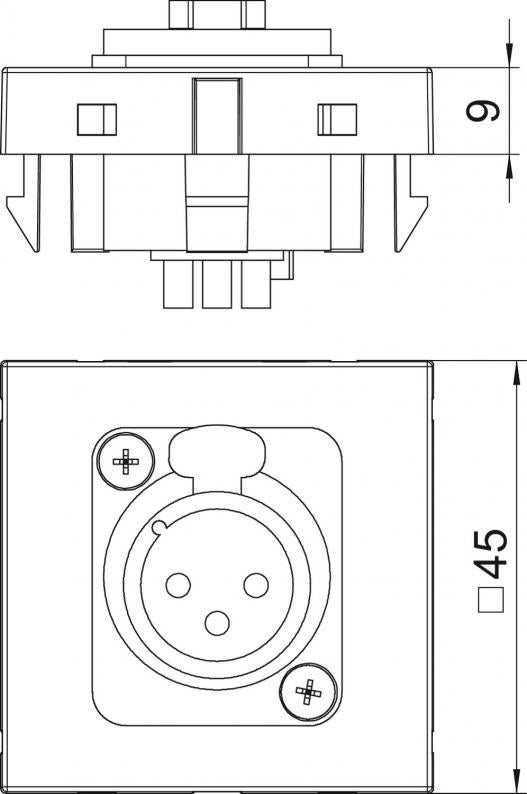

Dimensions

Width45 mm
Height45 mm

Technical data

Hinged coverno
Halogen-freeyes
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionno
With printed labelno
Lamp-wire connectorno
Depth9 mm
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseXLR
Labelling panelWith labelling panel
Fastening typeLock
ROHS-conformantExempt
Dimension45x45mm
MaterialPolycarbonate
ColourAluminium painted
Product seriesModul 45® Multimedia

Environmental Data

0,0573 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0573 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0573 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

Colour
MTG-X3F L RW1
Item no.
6105210
Use
XLR
Colour
Pure white; RAL 9010
MTG-X3F L SWGR1
Item no.
6105213
Use
XLR
Colour
Black-grey; RAL 7021
Outlet direction
Straight
MTG-X3F L AL1
Item no.
6105216
Use
XLR
Colour
Aluminium painted
