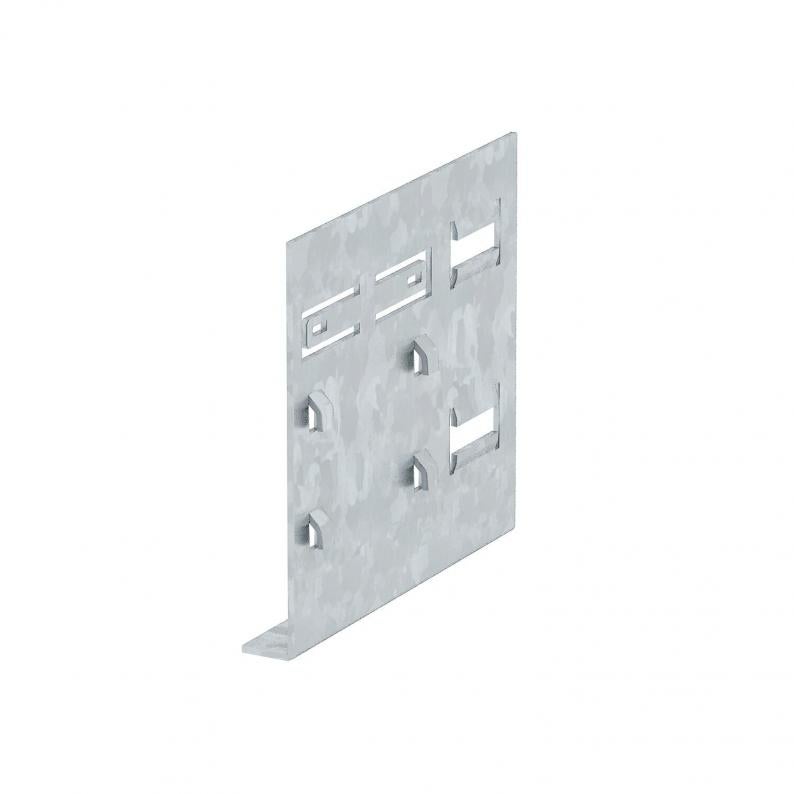

Wall panel adapter KS70130 for GK plastic, trunking width 130 mm

Wall panel adapter KS70130 for GK plastic, trunking width 130 mm

Type KS70130
|
Item no. 6279804
|
EAN 4012195680703
Show all variants
Item no. / Type
6279804 / KS70130

Smallest selling unit: 1 piece

piece

Description

Wall panel adapter for mounting the GK70130 device installation trunking on fastening panels.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length130 mm
Width122 mm
Height17 mm

Technical data

for duct dimension70x130 mm
Protection ratingIP30
Protection rating IK codeIK08
Fastening typeLockable
Version forWall mounting
ROHS-conformantyes
Permitted temperature range, min.-15 °C
Permitted temperature range, max.60 °C
Dimension128x122x27mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

0,8889 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,8889 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,8889 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
