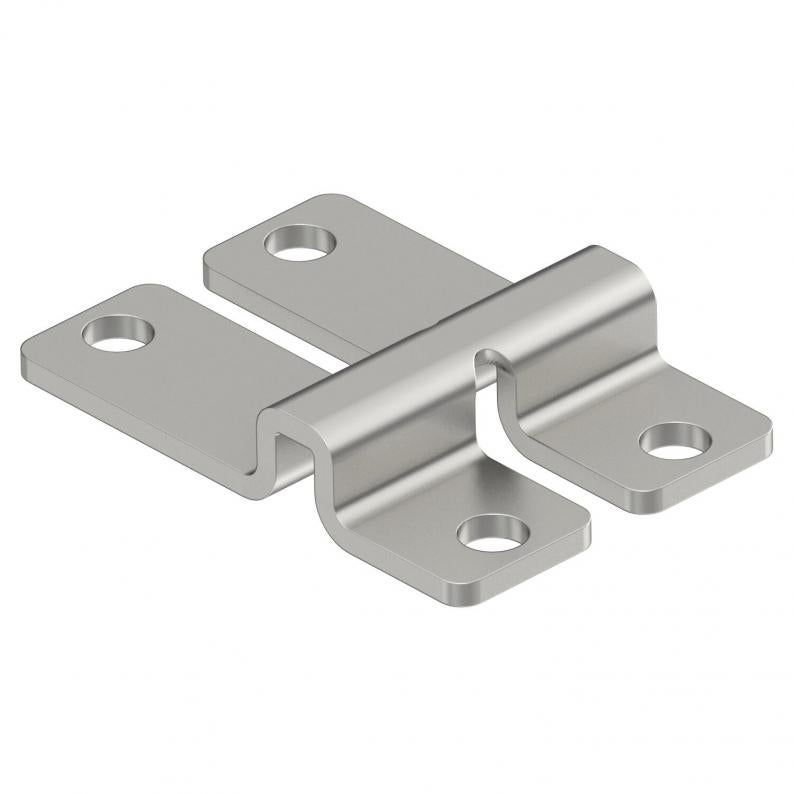

Wall clamp and central hanger A4
Type WB GR A4
|Item no. 6017164
|EAN 4012196561261
Item no. / Type
6017164 / WB GR A4
Smallest selling unit: 20 piece
20piece
piece
Description
Fastening component for direct mounting of mesh cable trays to the wall and floor. Can be screwed or riveted on.
Technical data

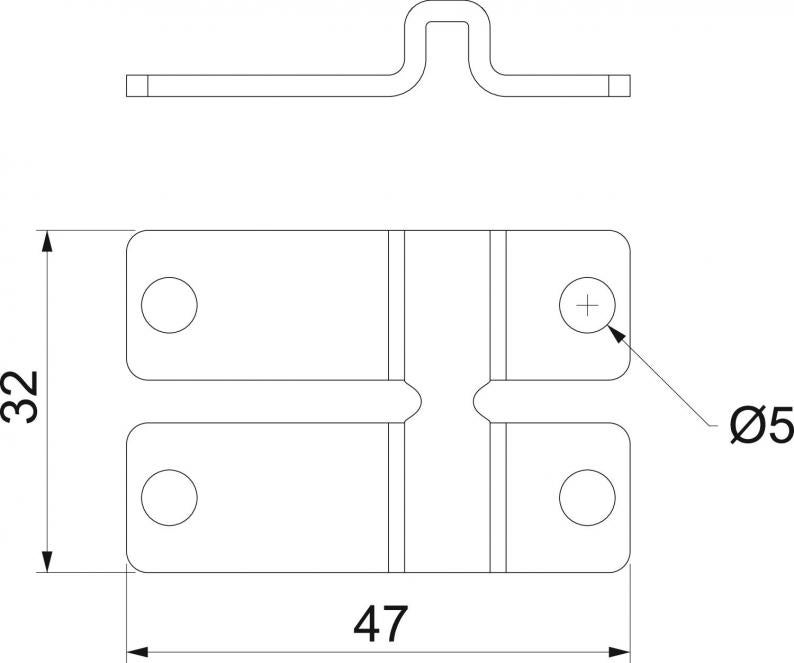

Dimensions
| Length | 47 mm |
|---|---|
| Width | 32 mm |
| Height | 9 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| With screw accessories | no |
| Hole diameter | 5 mm |
| Dimension | 47x32x9 |
| Version for | For wire thickness 3.9 mm |
| Dimension | 47x32x9 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
Environmental Data
0,2005 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2005 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,2005 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
