Wall bracket, variable AWV FT

Wall bracket, variable AWV FT

Type AWV 21 FT
|
Item no. 6419534
|
EAN 4012196206292
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

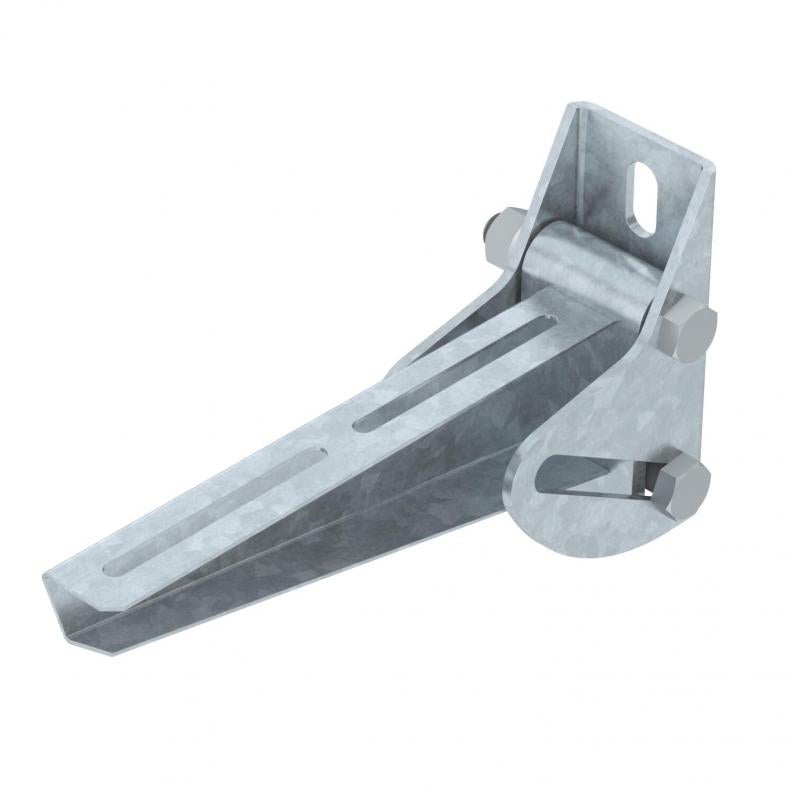

Variable wall bracket for fixing to sloping or vaulted walls.

Usable bracket length dependent on adjustment angle. The largest possible adjustment angle is 30°.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wall and support brackets
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

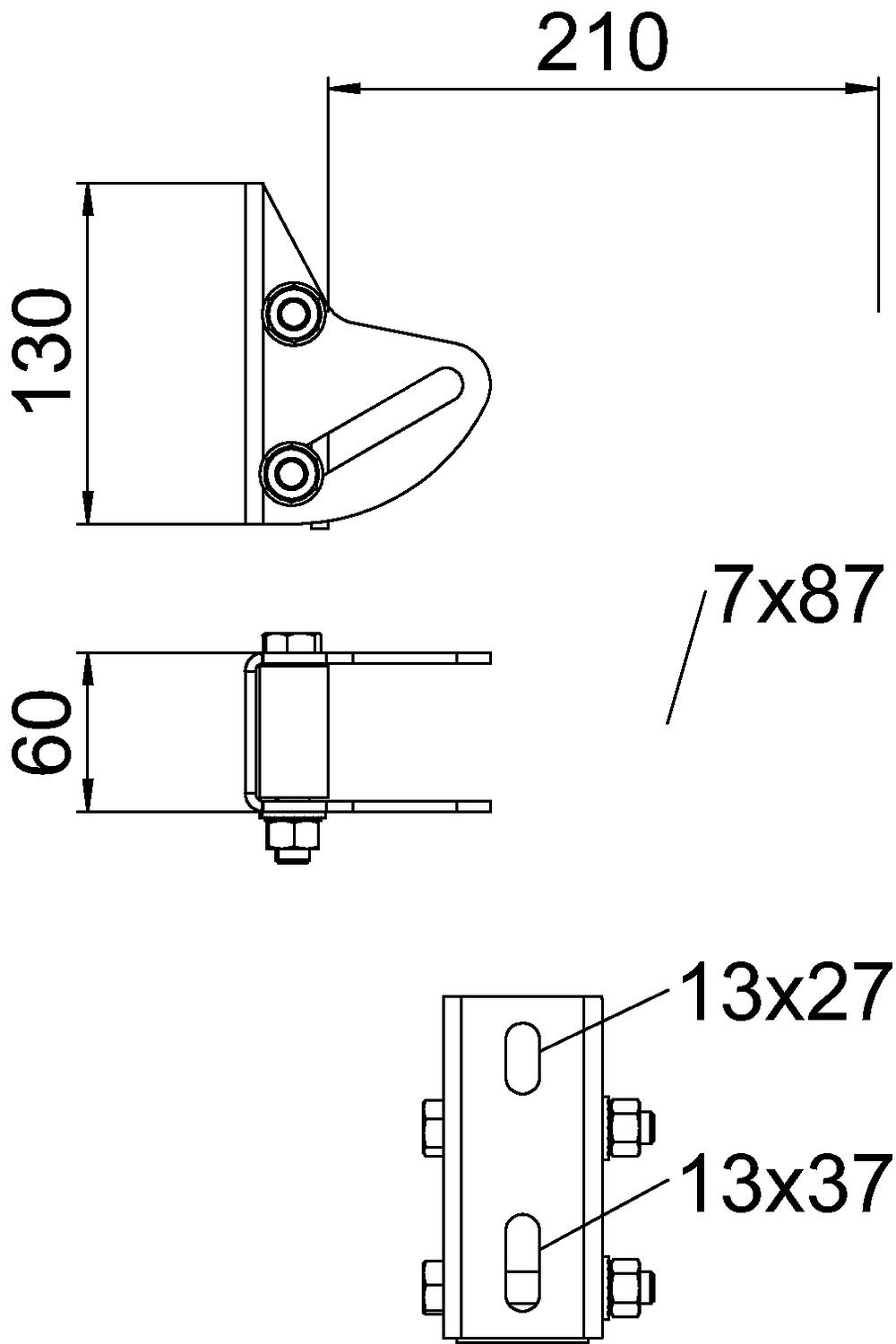

Dimensions

Length60 mm
Width210 mm
Height130 mm
Dimension A60 mm
Dimension B210 mm
Dimension H130 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.60
for width max.90 mm
Hole diameter13 mm
Version forWall brackets
ROHS-conformantyes
F in kN0,9 kN
DimensionB210mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Product seriesAWV Series

Environmental Data

3,8735 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate3,8735 kg CO2e / 1 Piece
CO₂ Footprint (GWP)3,8735 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Accessories

Mounting accessories
Type
FRSB 6x12 F

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
AWV 21 FT
Item no.
6419534
Width
210
F in kN
0,9
AWV 31 FT
Item no.
6419550
Width
310
F in kN
0,9
AWV 41 FT
Item no.
6419577
Width
410
F in kN
0,9
AWV 51 FT
Item no.
6419593
Width
510
F in kN
0,9
AWV 61 FT
Item no.
6419615
Width
610
F in kN
0,9
