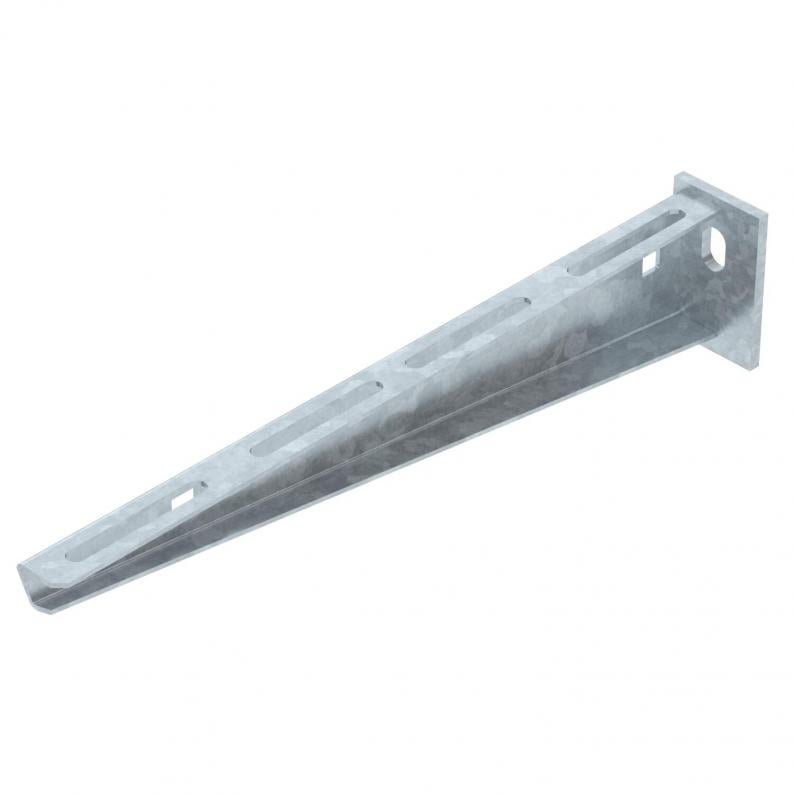

Wall and support bracket AW 15 FT SOMY

Wall and support bracket AW 15 FT SOMY

Type AW 15 16 FT SO
|
Item no. 7191923
|
EAN 4012195751038
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 30 piece

piece

Description

Light-duty wall and support bracket with welded head plate.

Fastening of the bracket to the U support of width 400 mm or greater using hexagonal bolt through both sides of the support. Please insert suitable spacers.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wall and support brackets
  • U support
  • U support
  • U support
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length40 mm
Width160 mm
Height55 mm
Dimension A40 mm
Dimension B160 mm
Dimension H55 mm

Technical data

Maintain electrical functionsyes
Rustproof steel, pickledno
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
Version forWall and support bracket
F in kN1,5 kN
DimensionB160mm
SurfaceHot-dip galvanised 85 µm
MaterialSteel
Colourzinc
Load diagram, bracket, type AW 15

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm

Environmental Data

0,5046 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 Footprint (GWP) Cradle-to-Gate0,5046 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,5046 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Accessories

Mounting accessories
Type
FRSB 6x12 F

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
AW 15 16 FT SO
Item no.
7191923
Width
160
F in kN
1,5
Colour
zinc
AW 15 51 FT SO
Item no.
7191931
Width
510
F in kN
1,5
Colour
zinc
