Wall and support bracket, angle head

Wall and support bracket, angle head

Type AW 30 31 WK FT
|
Item no. 6419857
|
EAN 4012197386863
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

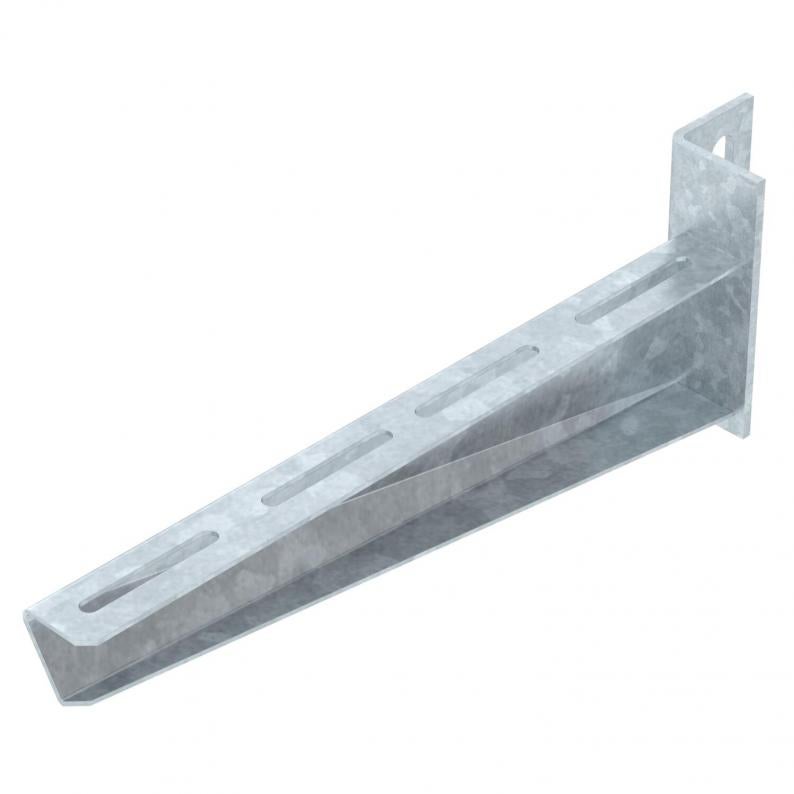

Heavy-duty wall and support bracket with welded angle head plate, for fastening to walls or structures.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

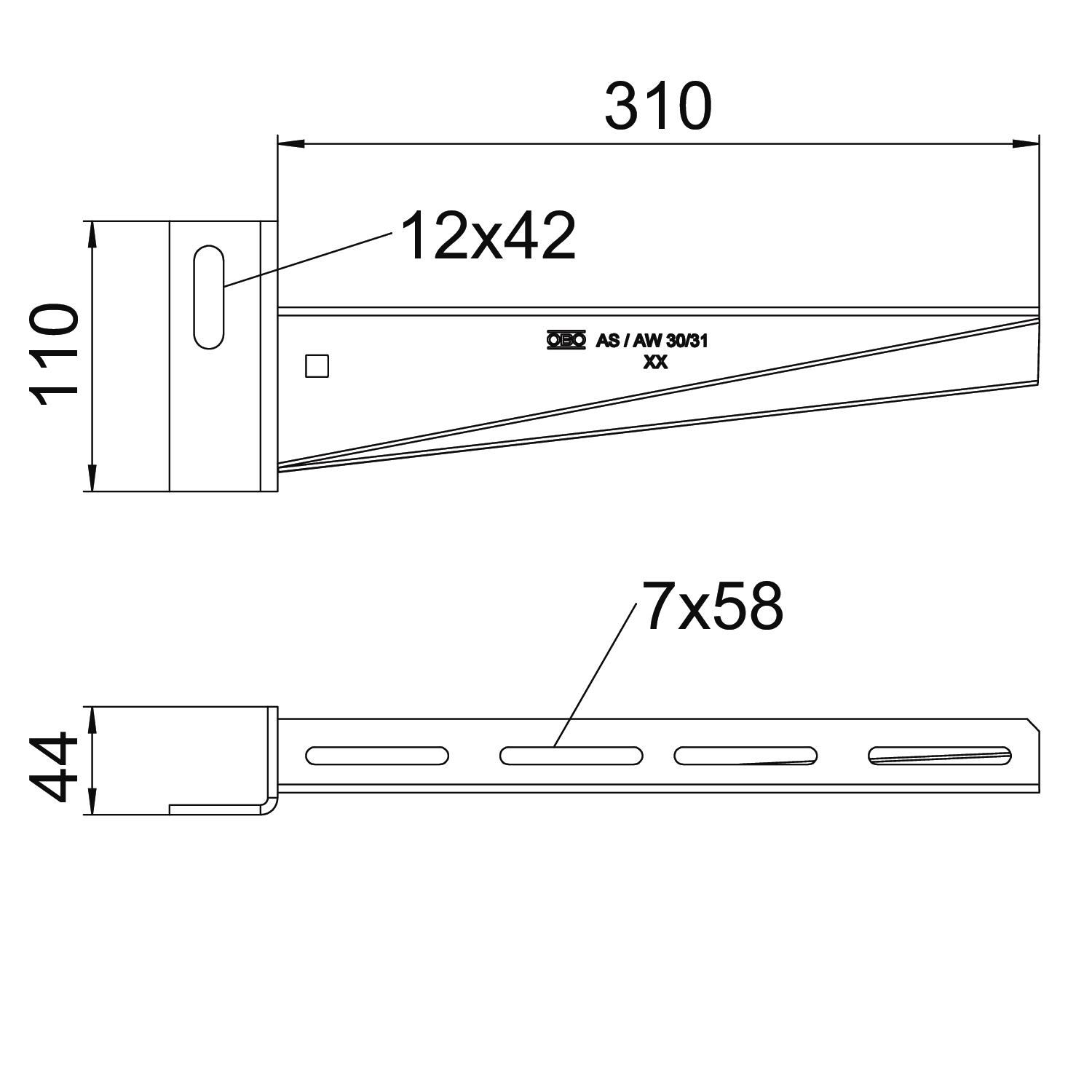

Dimensions

Length44 mm
Width310 mm
Height110 mm
Dimension A44 mm
Dimension B310 mm
Dimension H110 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Angle range, min.90 mm
Angle range, max.90 mm
Version forWall and support bracket
DimensionB310mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

1,6558 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 Footprint (GWP) Cradle-to-Gate1,6558 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,6558 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Product images (2)
Tender specifications (1)

Variants

Width
AW 30 11 WK FT
Item no.
6419855
Width
110
Colour
zinc
AW 30 21 WK FT
Item no.
6419856
Width
210
Colour
zinc
AW 30 31 WK FT
Item no.
6419857
Width
310
Colour
zinc
