Voltage tap for MCF-NAR series

Type MCF-NAR-SMG

Item no. 5096900

EAN 4012196776368

Show all variants

Item no. / Type

5096900 / MCF-NAR-SMG

Protection rating

IP20

Smallest selling unit: 1 piece

piece

Description

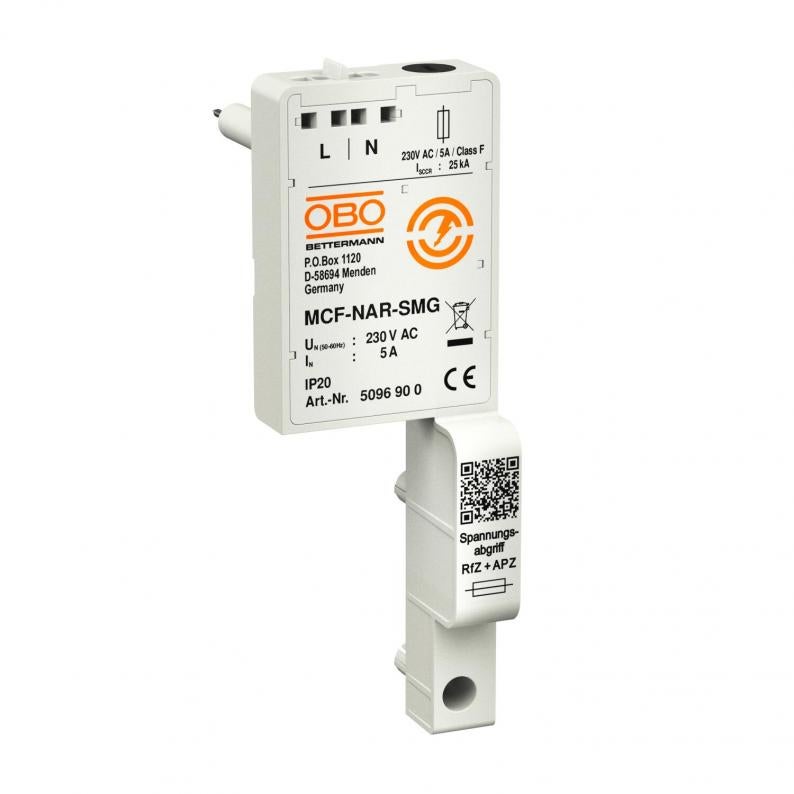

Adapter for voltage tap in power-side connection compartment

• Simple and space-saving voltage taps for the termination point meter position (APZ) and the space for additional applications (RfZ)
• With spring contacts for easy connection of wires
• Includes 2 plug sockets
• Safety screw to prevent unwanted loosening
• Replaceable 5 A fine-wire fuse with a breaking capacity of 50 kA
• Fuse holder 6.3 x 32 mm

Technical data

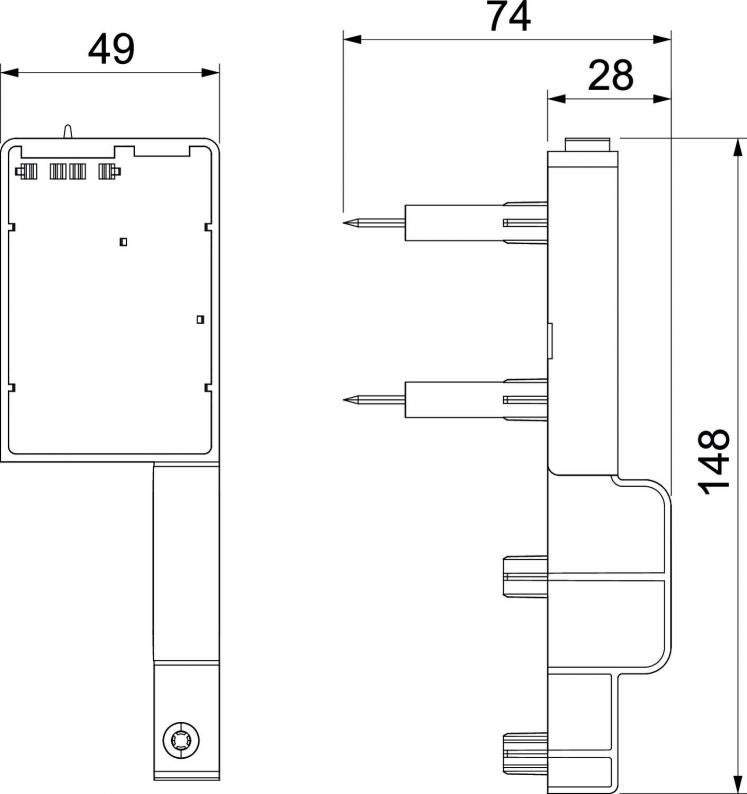

Dimensions

Length	148 mm
Width	49 mm
Height	74 mm

Technical data

Network form	All
Blow-out	no
Protection rating	IP20
Explosion-tested version	no
Test class, type 1	no
Remote signalling	no
Test class, type 3	no
Nominal voltage AC (50/60 Hz)	230 V
Integrated back-up fuse	no
Installation type	On basic element
Short-circuit resistant	no
Operating temperature, min.	-40 °C
Operating temperature, max.	80 °C
Permitted temperature range, min.	-40 °C
Permitted temperature range, max.	80 °C
Dimension	230V
Humidity, max.	95 %
Humidity, min.	5 %

Connectivity options

Conductor cross-section, flexible (fine-wire), min.	0,75 mm²
Conductor cross-section, flexible (fine-wire), max.	2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	0,75 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	2,5 mm²
