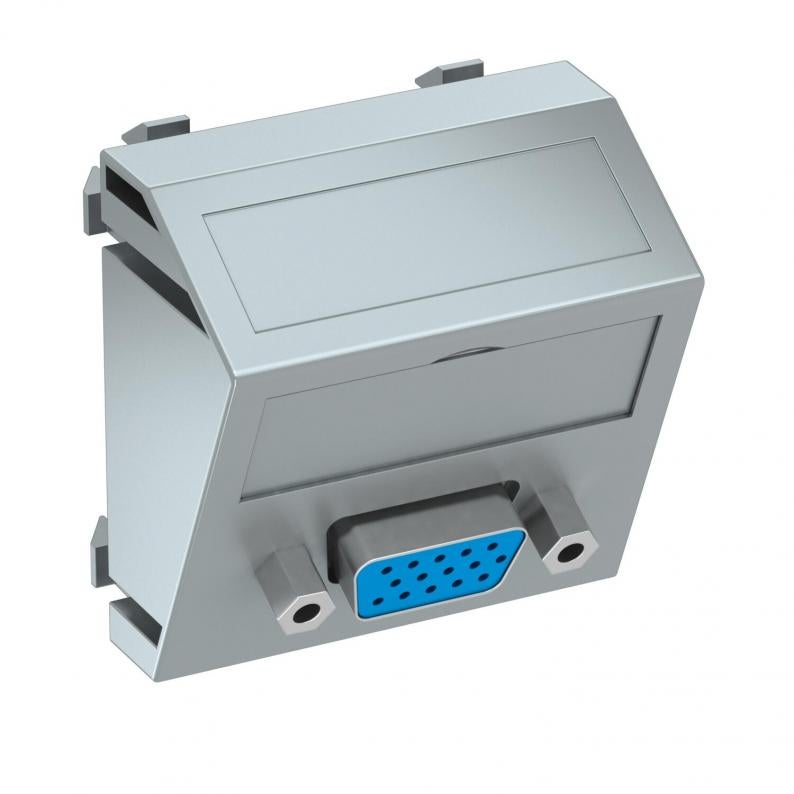

VGA connection, 1 module, slanting outlet, as screw connection

VGA connection, 1 module, slanting outlet, as screw connection

Type MTS-VGA S AL1
Item no. 6104628
EAN 4012195898146
Show all variants
Item no. / Type
Colour

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

Multimedia support with one VGA connection socket, slanting cable outlet, with labelling panel, VGA socket (HD15) with screw connection. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • CO₂ footprint (PCF)

Technical data

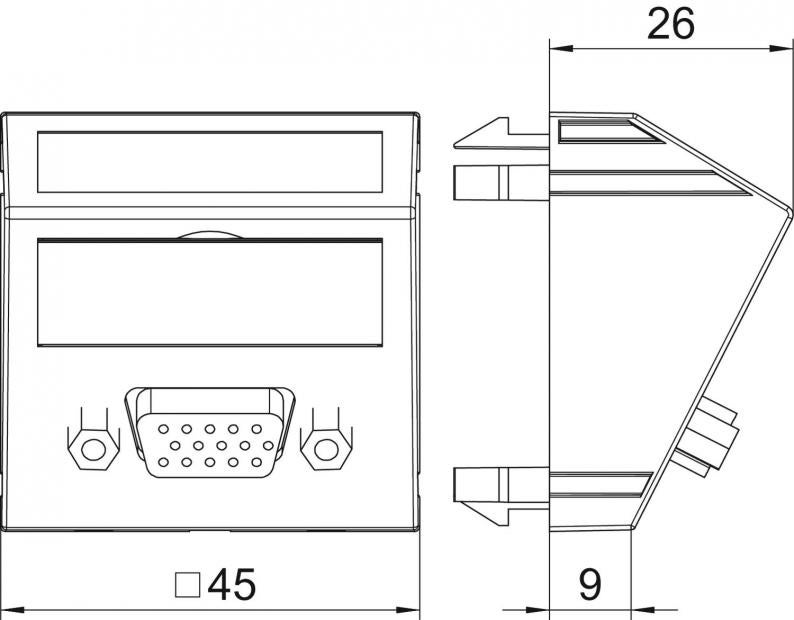

Dimensions

Width45 mm
Height45 mm

Technical data

Hinged coverno
Halogen-freeyes
Number of units1
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionno
With printed labelno
Lamp-wire connectorno
Depth26 mm
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseVGA
Labelling panelWith labelling panel
Fastening typeLock
ROHS-conformantyes
Dimension45x45mm
MaterialPolycarbonate
ColourAluminium painted
Product seriesModul 45® Multimedia

Environmental Data

0,08 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,08 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,08 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

Colour
MTS-VGA S RW1
Item no.
6104622
Use
VGA
Colour
Pure white; RAL 9010
MTS-VGA S SWGR1
Item no.
6104625
Use
VGA
Colour
Black-grey; RAL 7021
Outlet direction
Sloping
MTS-VGA S AL1
Item no.
6104628
Use
VGA
Colour
Aluminium painted
