UZD350-4 junction and branch box

Type UZD350-4 80125

Item no. 7410074

EAN 4012197478544

Data sheet (PDF)

Show all variants

Item no. / Type

7410074 / UZD350-4 80125

Screed height, min.

80 mm

Screed height, max.

125 mm

Cover version

Universal

Nominal size

350 mm

Duct height, min.

28 mm

Trunking height, max.

58 mm

Smallest selling unit: 1 piece

piece

Description

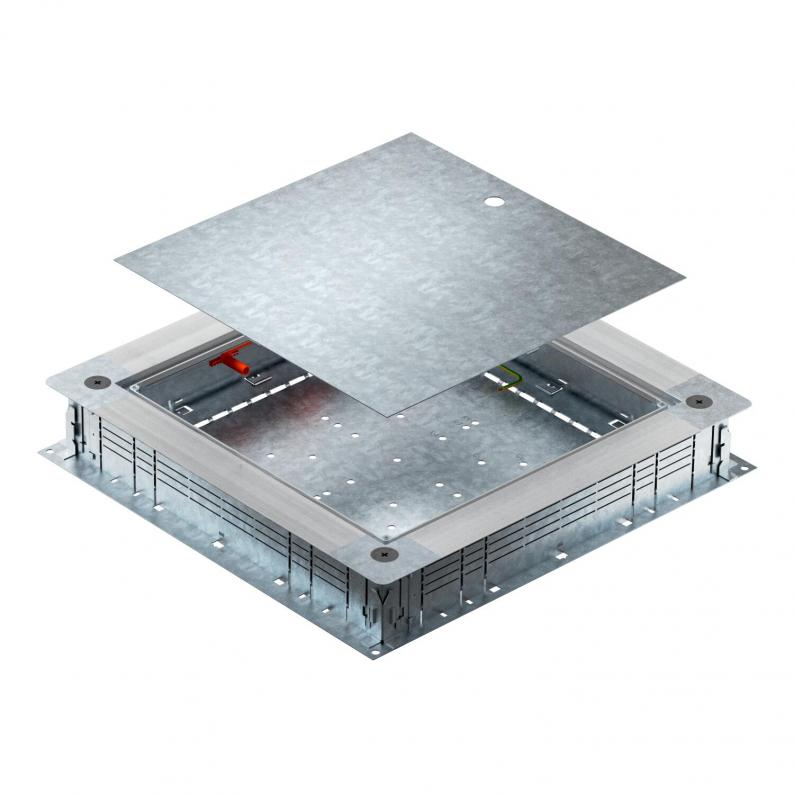

Junction and branch box for screed-covered underfloor installation duct with sheet steel side walls. For mounting of installation units in the mounting lid (to be ordered separately). Can be adjusted continuously to a nominal screed height of 80–125 mm using the quick height-adjustment unit. The screed can be worked up to be flush with the screed edge. With an acoustic decoupling option after screed laying, and with system accessories, it can be used for heavy-duty applications. Insertion of cables with the 2-part EÜK duct.

Technical data

Dimensions

Length	480 mm
Width	500 mm
Height	80 mm

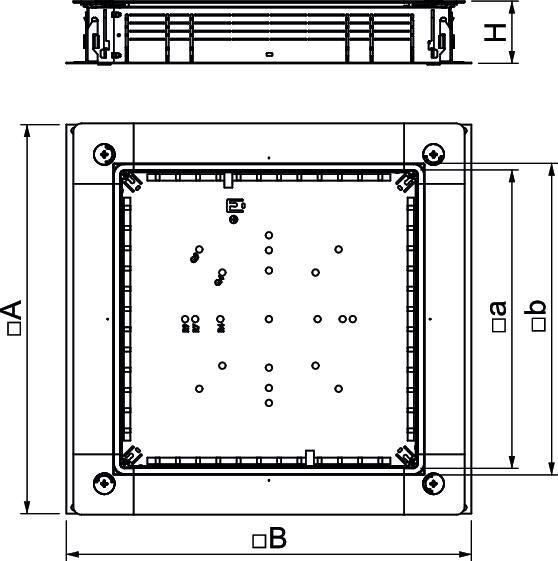

Dimension A	480 mm
Dimension B	500 mm
Dimension b	383 mm
Dimension a	362 mm

Technical data

Screed height, min.	80 mm
Screed height, max.	125 mm
Cover version	Universal
Height-adjustment range, min.	80 mm
Height-adjustment range, max.	125 mm
Minimum screed height	80
Suitable for screed-covered underfloor ducts	yes
Suitable for screed-flush closed underfloor ducts	no
Trunking width, min.	190 mm
Trunking width, max.	350 mm
Installation opening for on-floor tank	no
Seal installation option	yes
Decouplable	yes
Floor plate	yes
Suitable for underfloor ducts	yes
For pipe connection	no
Nominal size	350 mm
Duct height, min.	28 mm
Trunking height, max.	58 mm
Dimension	500x480x80
Surface	Strip galvanised
Material	Steel
