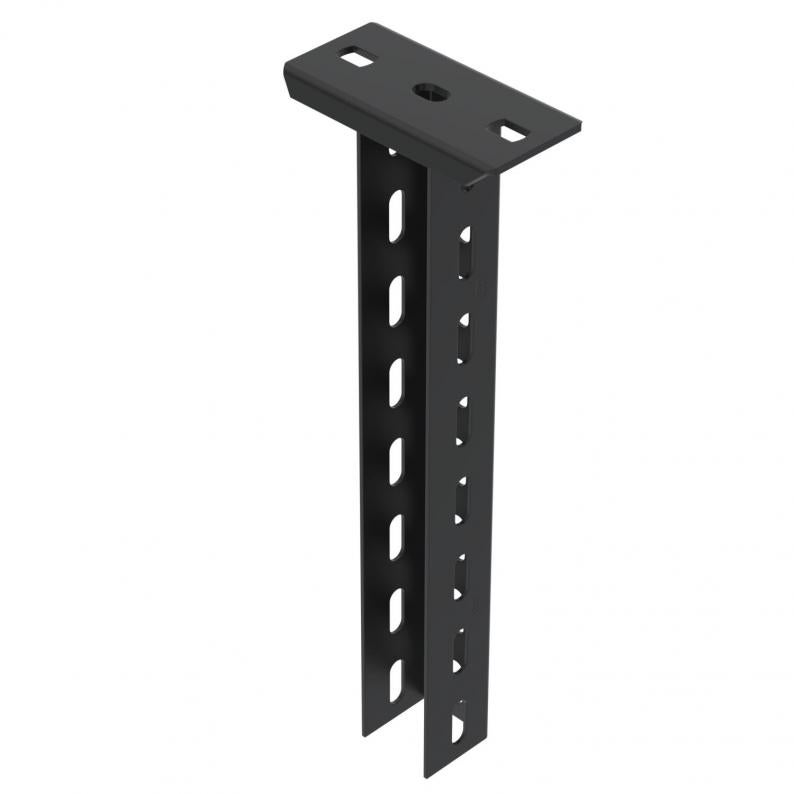

US 5 suspended support FTK, black

US 5 suspended support FTK, black

Type US 5 K 40 FTK SW
|
Item no. 6341684
|
EAN 4012197468736
Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

piece

Description

Suspended support made from U profile with welded-on head plate, perforated to 3 sides, for the creation of support constructions for cable trays. Suitable for mounting on horizontal concrete ceilings and steel supports. Wall and support bracket can be mounted on both sides of the U suspended support. Spacer DSK to insert, from bracket width 400 mm or when mounting the bracket on the end of the suspended support. With black powder coating.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • U support

Technical data

Dimensions

Length400 mm
Width50 mm
Height50 mm
Dimension L400 mm

Technical data

Maintain electrical functionsyes
Material thickness2,5 mm
With toothingno
Version forU profile
ROHS-conformantyes
Maximum tensile load10 kN
Bracket length 2005,75 kN
Bracket length 4003,1 kN
Bracket length 6002,2 kN
Dimension50x50x400
SurfacePES135 - Polyester
MaterialSteel
ColourJet black; RAL 9005
Product seriesBlackLine, US 5K Serie

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (2)
Tender specifications (1)

Variants

Length
US 3 K 50 FTK SW
Item no.
7265740
Length
500
Colour
Jet black; RAL 9005
US 5 K 40 FTK SW
Item no.
6341684
Length
400
Colour
Jet black; RAL 9005
US 5 K 60 FTK SW
Item no.
6341686
Length
600
Colour
Jet black; RAL 9005
US 3 K 20 FTK SW
Item no.
7265690
Length
200
Colour
Jet black; RAL 9005
US 3 K 30 FTK SW
Item no.
7265693
Length
300
Colour
Jet black; RAL 9005
US 3 K 40 FTK SW
Item no.
7265696
Length
400
Colour
Jet black; RAL 9005
