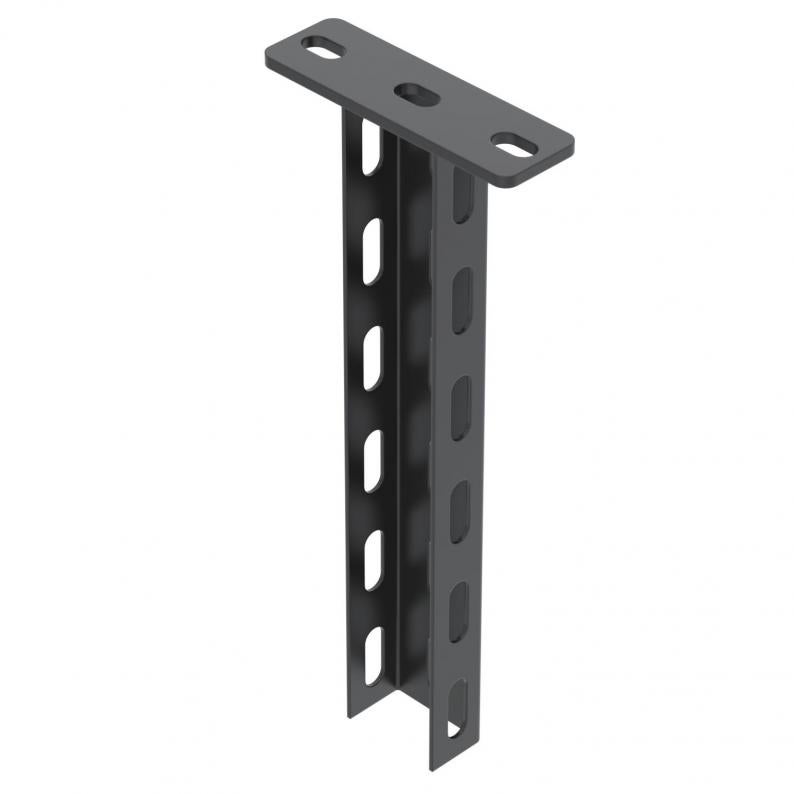

US 3 suspended support FTK black

US 3 suspended support FTK black

Type US 3 K 30 FTK SW
|
Item no. 7265693
|
EAN 4012196872824
Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

piece

Description

Suspended support (U profile) in the dimensions of 50 x 30 mm with welded-on head plate. For fastening to horizontal concrete ceilings and steel girders. Powder-coated in jet black (RAL 9005) From a bracket width of 400 mm or when the bracket is mounted on the end of the suspended support, it is recommended to use the spacer type DSK 25.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • U support
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length300 mm
Width50 mm
Height30 mm
Dimension L300 mm

Technical data

Maintain electrical functionsno
Material thickness2 mm
Version forU profile
ROHS-conformantyes
Maximum tensile load5 kN
Bracket length 2002,7 kN
Bracket length 4001,5 kN
Dimension50x30x300
SurfacePES135 - Polyester
MaterialSteel
ColourJet black; RAL 9005
Product seriesBlackLine, US 3K Series

Environmental Data

0,0667 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0667 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0667 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

System accessories
Mounting accessories
Type
US 3 KS SW

Smallest selling unit: 20 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Length
US 3 K 50 FTK SW
Item no.
7265740
Length
500
Colour
Jet black; RAL 9005
US 3 K 20 FTK SW
Item no.
7265690
Length
200
Colour
Jet black; RAL 9005
US 3 K 30 FTK SW
Item no.
7265693
Length
300
Colour
Jet black; RAL 9005
US 3 K 40 FTK SW
Item no.
7265696
Length
400
Colour
Jet black; RAL 9005
