UP Distance connector

UP Distance connector

Type ZU 20-AS
Item no. 2003746
EAN 4012196700813
Show all variants
Item no. / Type
2003746 / ZU 20-AS

Smallest selling unit: 25 piece

piece

Description

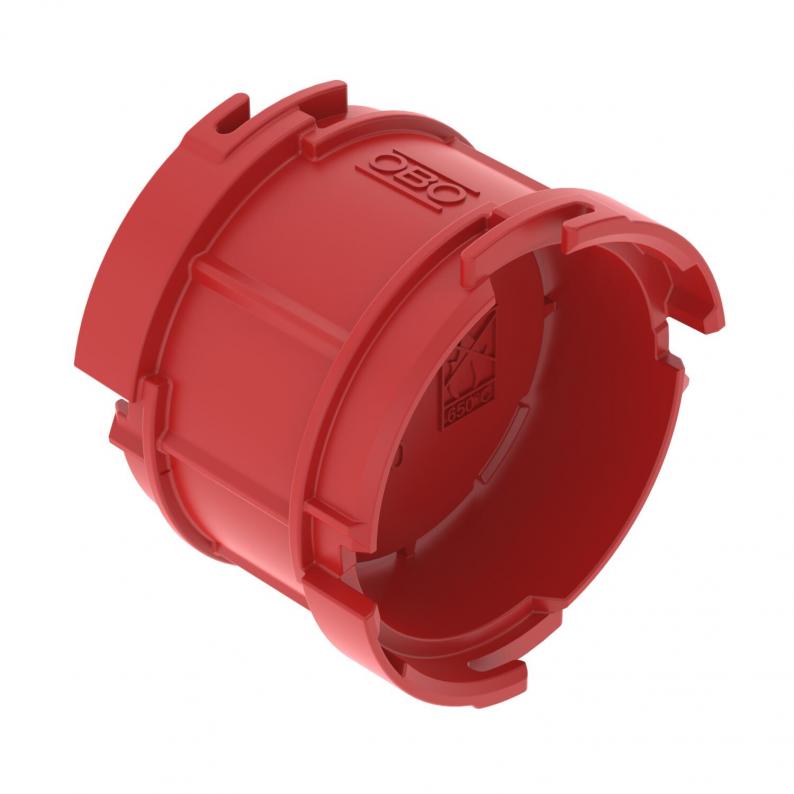

Distance connector with bayonet lock for the stable combination of multiple flush-mounted device boxes. To expand the standard centre spacing of 71 mm by 20 mm.
  • RoHS-conformant
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

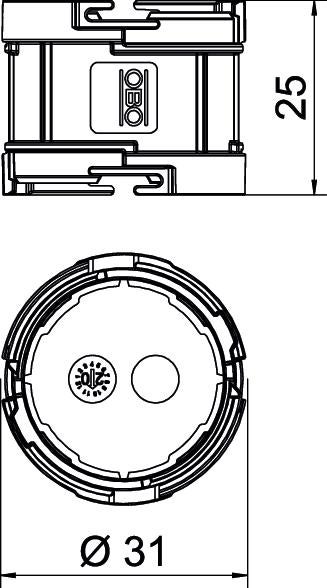

Dimensions

Length25 mm

Technical data

Diameter31 mm
Halogen-freeyes
Protection ratingIP30
Diameter, interior25 mm
ROHS-conformantyes
Flame-resistantacc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
Dimension20mm
MaterialPolystyrene
ColourSignal red
Type of accessoryMiscellaneous
Accessoriesyes
Spare partno
Product seriesWIN Series

Environmental Data

0,0115 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate0,0115 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0115 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
