UDHOME4 floor box, with I4 mounting support, freely equippable, stainless steel
Type UDHOME4 2V I4
Item no. 7427074
EAN 4012195922315
Item no. / Type
7427074 / UDHOME4 2V I4
Floor covering thickness
15 mm
Smallest selling unit: 1 piece
1piece
piece
Description

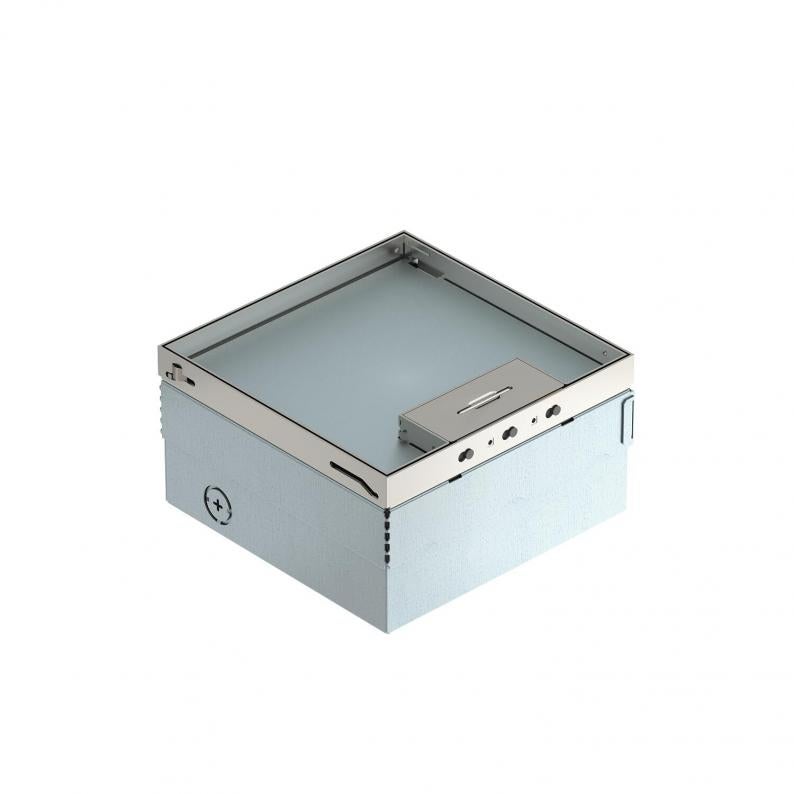

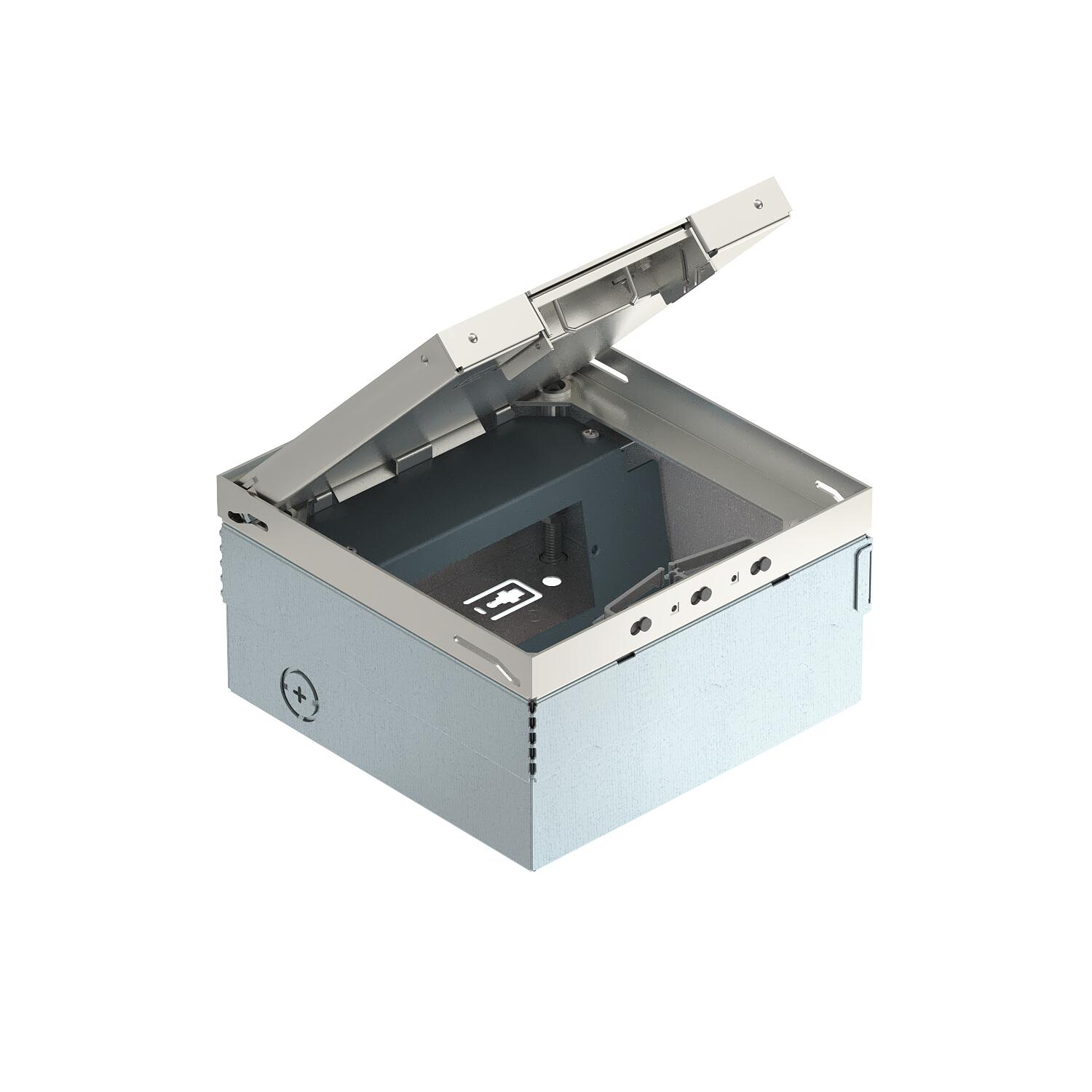

Square floor box for four installation devices of Italian design, for use in dry-care cavity and screed floors for indoor use. Installation housing with pre-marked insertion openings for pipelines (M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. 15 mm floor covering recess in the hinged cover. The minimum installation depth is 110 mm, the height-adjustment range + 30 mm.
The scope of delivery contains a mounting support.
Surfaces made of stainless steel and visible in the floor covering.
The scope of delivery contains a mounting support.
Surfaces made of stainless steel and visible in the floor covering.
Technical data

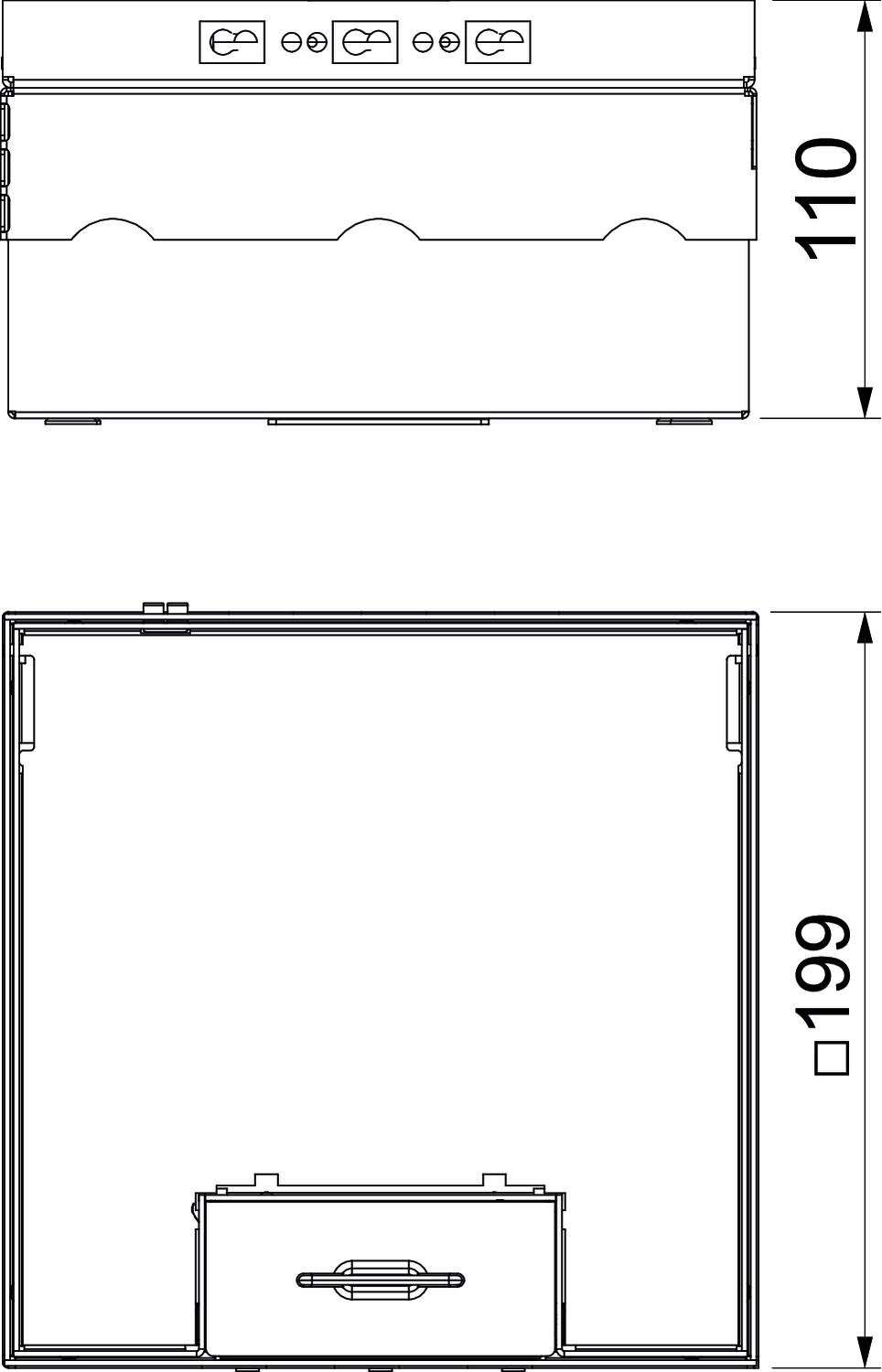

Dimensions
| Length | 202 mm |
|---|---|
| Width | 202 mm |
Technical data
| Screed height, min. | 110 mm |
|---|---|
| Screed height, max. | 130 mm |
| Floor height, min. | 110 mm |
| Floor height, max. | 140 mm |
| Cover version | Floor covering recess |
| Floor covering thickness | 15 mm |
| Height-adjustment range, min. | 110 mm |
| Height-adjustment range, max. | 140 mm |
| Length of installation dimensions | 202 mm |
| Wide installation dimensions | 202 mm |
| Length of external dimensions | 199 mm |
| Wide external dimensions | 199 mm |
| Installation depth | 110 mm |
| Cable outlet version | Swivellable cord outlet |
| Protection rating IK code | IK10 |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Opening mechanism | Handle |
| ROHS-conformant | Exempt |
| Dimension | 198x198x110 |
| Material | Stainless steel 1.4301 |
| Product series | UDHOME4 |
Environmental Data
18,7732 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 18,7732 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 18,7732 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
