U support connector A4
Type VUS 5 A4
|Item no. 6018509
|EAN 4012196082773
Item no. / Type
6018509 / VUS 5 A4
Smallest selling unit: 1 piece
1piece
piece
Description

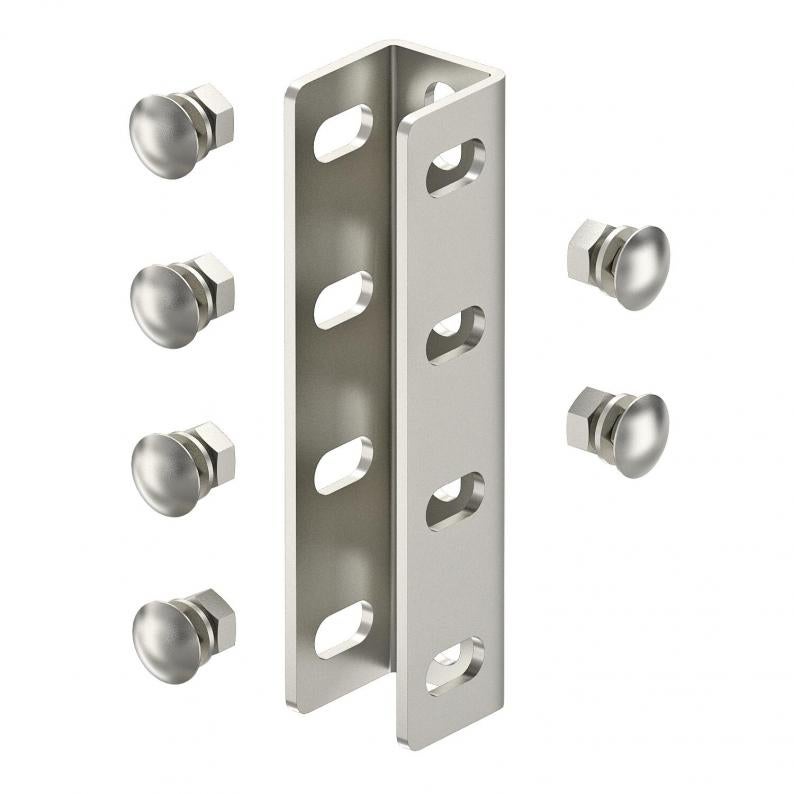

U support connector to connect US 5 supports.
Including appropriate fastening material.
Technical data
Dimensions
| Length | 190 mm |
|---|---|
| Width | 44 mm |
| Height | 46,5 mm |
Technical data
| Drill hole spacing, centre | 50 mm |
|---|---|
| With screw accessories | yes |
| Dimension | 46,5 x 44 x 190 |
| Suitable for profile shapes | U profile |
| ROHS-conformant | yes |
| Dimension | 190x44 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
| Product series | US 5 Series |
Environmental Data
3,8779 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,8779 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 3,8779 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
