Trunking, type WDK 60210
Type WDK60210CW
Item no. 6021875
EAN 4012196019991
Item no. / Type
Length
Width
Height
Colour
Smallest selling unit: 8 m
8m
m
Description
Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Device installation is possible with the accessory mounting box, type 2390.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Device installation is possible with the accessory mounting box, type 2390.
Technical data

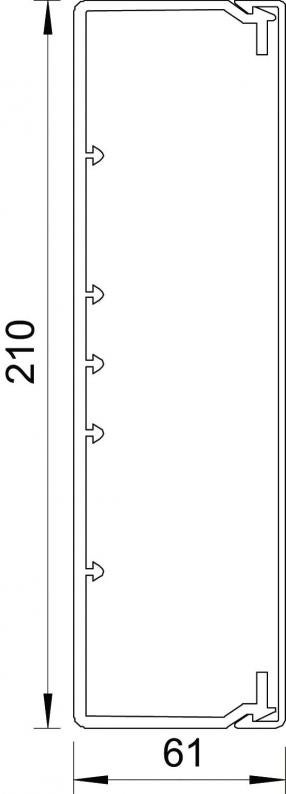

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 210 mm |
| Height | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 58 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 44 |
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 48 |
| Usable cross-section | 10030 mm² |
| Halogen-free | no |
| Number of fixed partitions | 0 |
| Number of insertable partitions | 3 |
| Cable retaining clip | yes |
| Protective film | no |
| Duct connector | no |
| Protection rating | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK04 |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 60x210x2000 |
| Material | Polyvinylchloride |
| Colour | Cream; RAL 9001 |
| Antibacterial treatment | no |
| Product series | WDK |
Environmental Data
4,5916 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,5916 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 4,5916 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
Accessories
System accessories
Article
Type
Item no.
Amount
WDK HI60210CW
6160360
Smallest selling unit: 2 piece
2piece
piece
WDK HA60210CW
6160964
Smallest selling unit: 2 piece
2piece
piece
WDK HF60210CW
6161553
Smallest selling unit: 2 piece
2piece
piece
Item no. 6162851
End piece, trunking type WDK 60210Type
WDK HE60210CW
Smallest selling unit: 10 piece
10piece
piece
Item no. 6160360
Internal corner cover, trunking type WDK 60210Type
WDK HI60210CW
Smallest selling unit: 2 piece
2piece
piece
Item no. 6160964
External corner cover, trunking type WDK 60210Type
WDK HA60210CW
Smallest selling unit: 2 piece
2piece
piece
