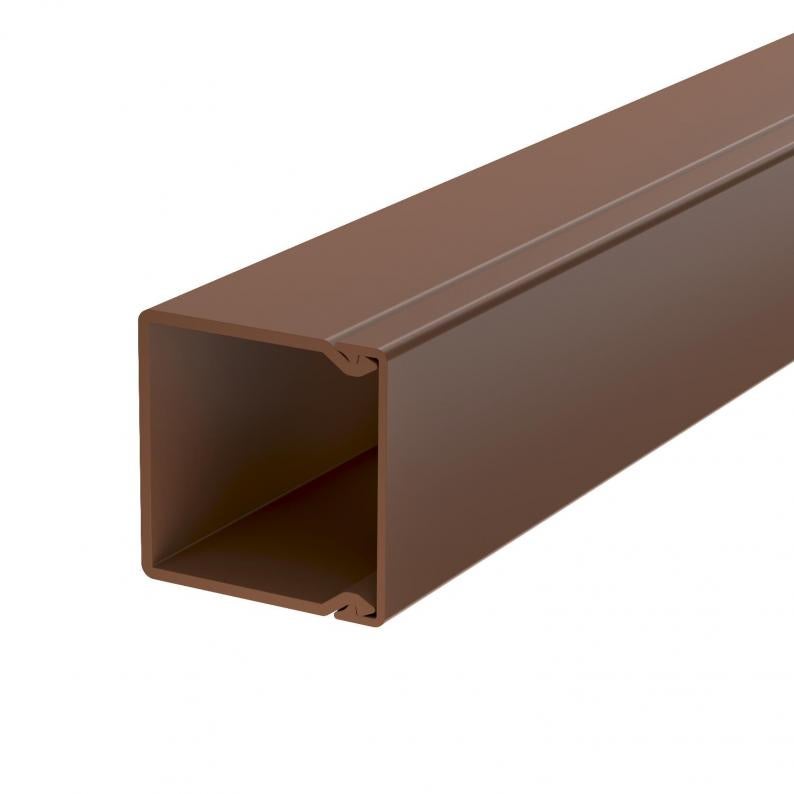

Trunking, type WDK 40040

Trunking, type WDK 40040

Type WDK40040BR
Item no. 6025420
EAN 4012196028931
Show all variants
Item no. / Type
Length
Width
Height
Colour

Smallest selling unit: 36 m

m

Description

Trunking cover and base with base perforation.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • WDK trunking, trunking depth 40 mm
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

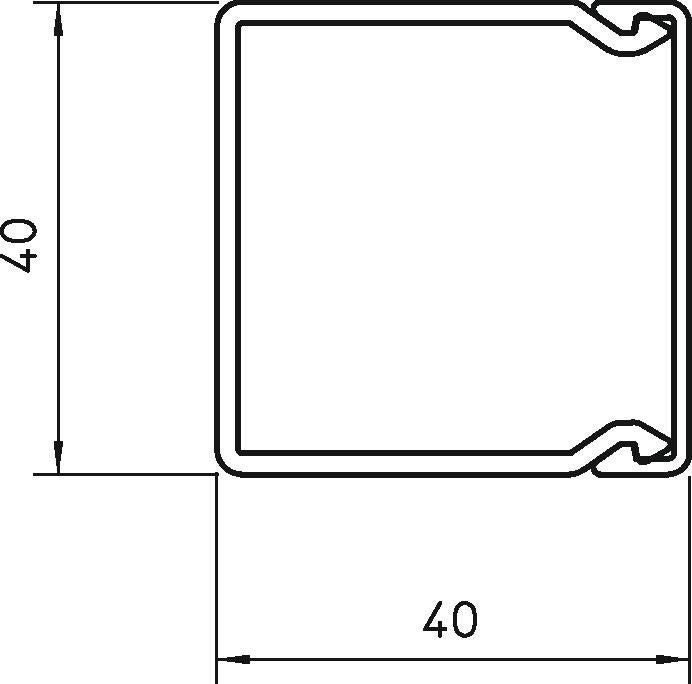

Dimensions

Length2000 mm
Width40 mm
Height40 mm

Technical data

Maintain electrical functionsno
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)7
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)5
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)6
Usable cross-section1314 mm²
Halogen-freeno
Number of fixed partitions0
Number of insertable partitions0
Cable retaining clipno
Protective filmno
Duct connectorno
Protection ratingIP30
Delivery on a rollno
Protection rating IK codeIK04
Fastening typeBase perforation
Version, cable trunking coverLoose
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension40x40x2000
MaterialPolyvinylchloride
ColourSepia brown; RAL 8014
Antibacterial treatmentno
Product seriesWDK

Environmental Data

0,8264 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,8264 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,8264 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories
Type
UNI BA

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Declarations (2)
Certificates (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
WDK40040CW
Item no.
6025412
Length
2000
Width
40
Height
40
Colour
Cream; RAL 9001
WDK40040BR
Item no.
6025420
Length
2000
Width
40
Height
40
Colour
Sepia brown; RAL 8014
WDK40040GR
Item no.
6025447
Length
2000
Width
40
Height
40
Colour
Stone grey; RAL 7030
WDK40040LGR
Item no.
6027016
Length
2000
Width
40
Height
40
Colour
Light grey; RAL 7035
WDK40040RW
Item no.
6191126
Length
2000
Width
40
Height
40
Colour
Pure white; RAL 9010
