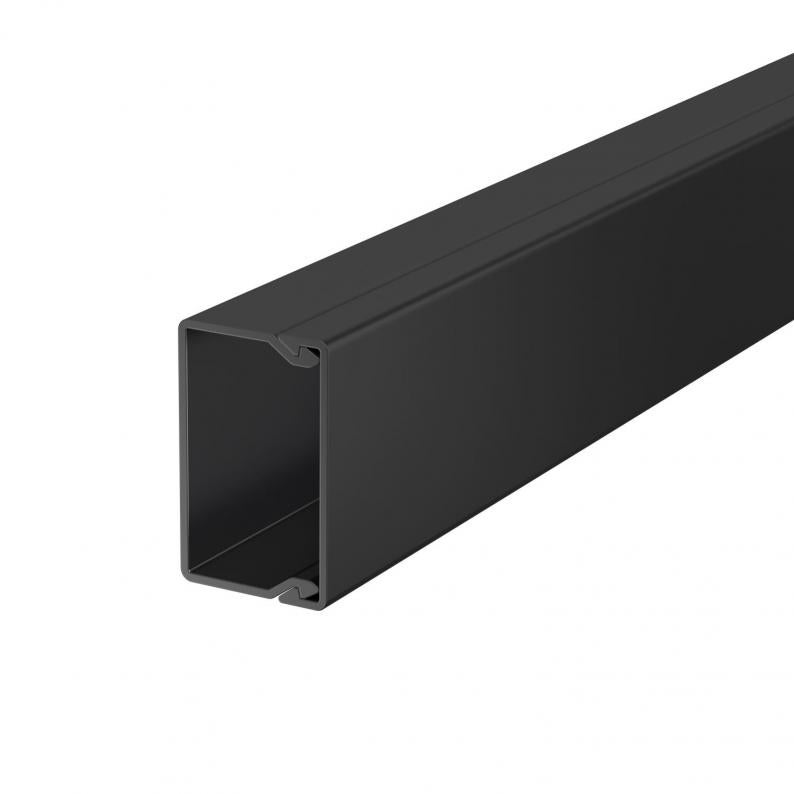

Trunking, type WDK 25040
Type WDK25040SW
Item no. 6026488
EAN 4012197005115
Item no. / Type
Length
Width
Height
Smallest selling unit: 24 m
24m
m
Description
Wall and ceiling trunking, halogen-free, consisting of cover and base for mounting directly on the wall.
During installation, ensure that only halogen-free accessories and fastening materials are used.
Technical data

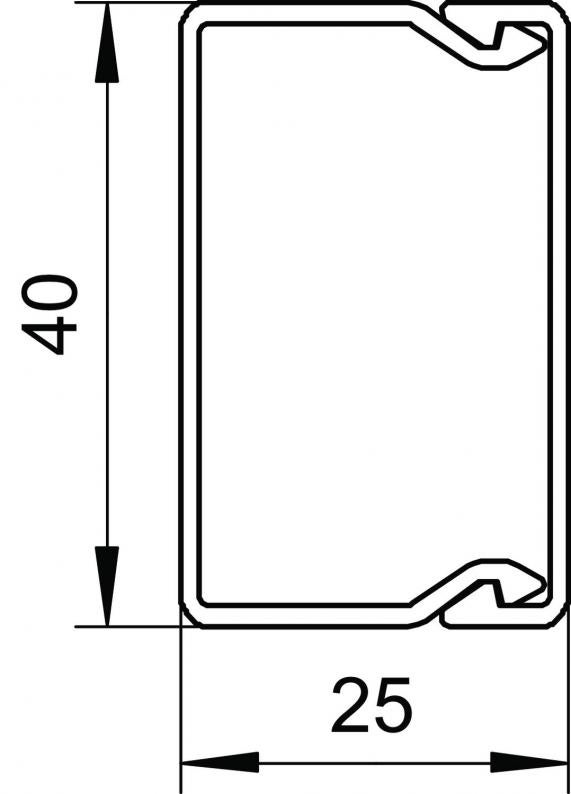

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 40 mm |
| Height | 25 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 5 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 3 |
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 3 |
| Usable cross-section | 792 mm² |
| Halogen-free | no |
| Number of fixed partitions | 0 |
| Number of insertable partitions | 0 |
| Cable retaining clip | no |
| Protective film | no |
| Duct connector | no |
| Protection rating | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK04 |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 2000x40x25 |
| Material | Polyvinylchloride |
| Colour | Jet black; RAL 9005 |
| Antibacterial treatment | no |
| Product series | BlackLine, WDK |
Environmental Data
0,5892 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5892 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 0,5892 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
Accessories
System accessories
Article
Type
Item no.
Amount
WDK HI25040SW
6191760
Smallest selling unit: 4 piece
4piece
piece
WDK HA25040SW
6191774
Smallest selling unit: 4 piece
4piece
piece
WDK HF25040SW
6191790
Smallest selling unit: 4 piece
4piece
piece
Item no. 6191808
End piece, trunking type WDK 25040Type
WDK HE25040SW
Smallest selling unit: 10 piece
10piece
piece
Item no. 6191760
Internal corner cover, trunking type WDK 25040Type
WDK HI25040SW
Smallest selling unit: 4 piece
4piece
piece
Item no. 6191774
External corner cover, for trunking type WDK 25040Type
WDK HA25040SW
Smallest selling unit: 4 piece
4piece
piece
