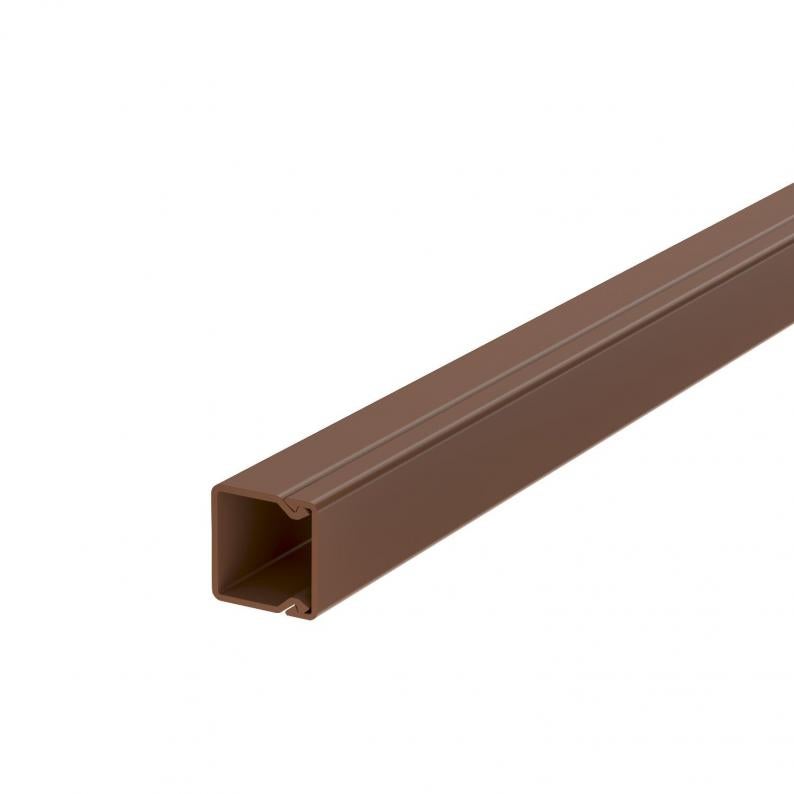

Trunking, type WDK 20020 with base perforation

Trunking, type WDK 20020 with base perforation

Type WDK20020BR
Item no. 6025129
EAN 4012196028450
Show all variants
Item no. / Type
Length
Width
Height
Colour

Smallest selling unit: 48 m

m

Description

Trunking cover and base with base perforation.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • WDK trunking, trunking depth 20 mm
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

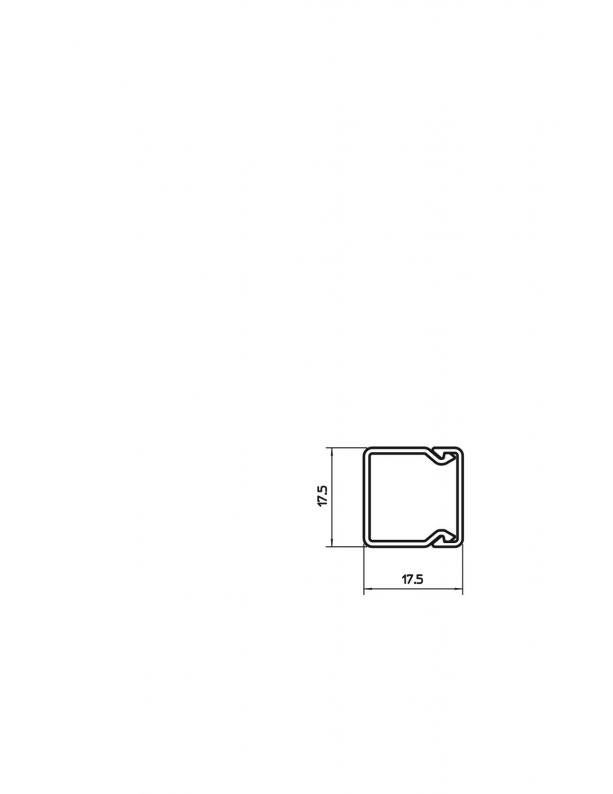

Dimensions

Length2000 mm
Width17,5 mm
Height17,5 mm

Technical data

Maintain electrical functionsno
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)1
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)1
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)1
Usable cross-section220 mm²
Halogen-freeno
Number of fixed partitions0
Number of insertable partitions0
Cable retaining clipno
Protective filmno
Duct connectorno
Protection ratingIP30
Delivery on a rollno
Protection rating IK codeIK04
Fastening typeBase perforation
Version, cable trunking coverLoose
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension20x20x2000
MaterialPolyvinylchloride
ColourSepia brown; RAL 8014
Antibacterial treatmentno
Product seriesWDK

Environmental Data

0,2149 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,2149 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,2149 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

Mounting accessories
Type
DP D 30

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Certificates (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Colour
WDK20020LGR
Item no.
6025102
Length
2000
Width
17,5
Height
17,5
Colour
Light grey; RAL 7035
WDK20020GR
Item no.
6025110
Length
2000
Width
17,5
Height
17,5
Colour
Stone grey; RAL 7030
WDK20020BR
Item no.
6025129
Length
2000
Width
17,5
Height
17,5
Colour
Sepia brown; RAL 8014
WDK20020CW
Item no.
6025153
Length
2000
Width
17,5
Height
17,5
Colour
Cream; RAL 9001
WDK20020SRW
Item no.
6027360
Length
2000
Width
17,5
Height
17,5
Colour
Pure white; RAL 9010
WDK20020RW
Item no.
6191037
Length
2000
Width
17,5
Height
17,5
Colour
Pure white; RAL 9010
WDK20020SW
Item no.
6025155
Length
2000
Width
17,5
Height
17,5
Colour
Jet black; RAL 9005
