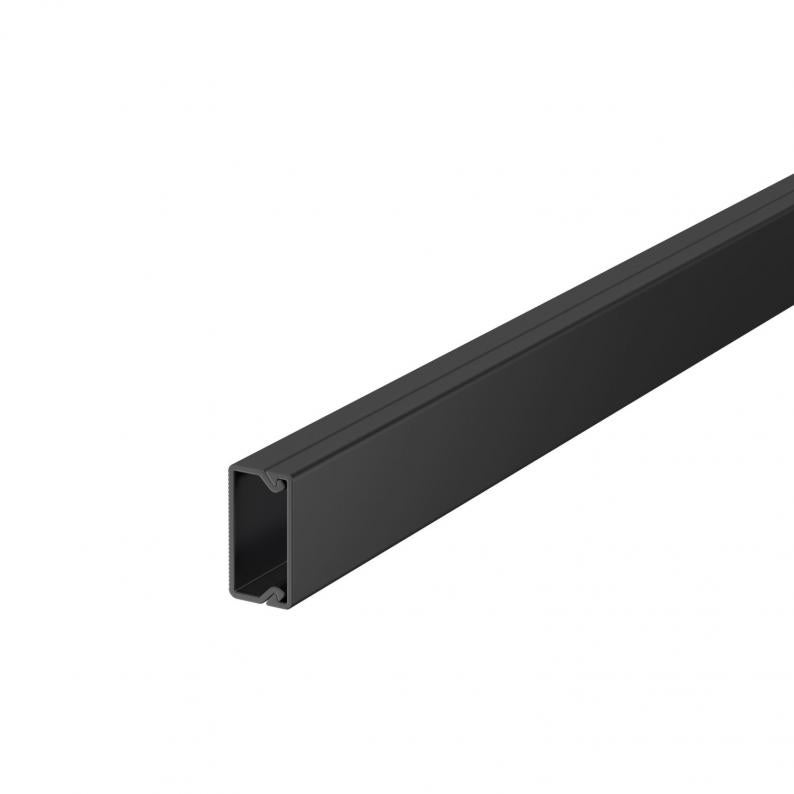

Trunking, type WDK 10020 with adhesive film

Trunking, type WDK 10020 with adhesive film

Type WDK10020SSW
Item no. 6027374
EAN 4012197005207
Show all variants
Item no. / Type
Length
Width
Height

Smallest selling unit: 84 m

m

Description

Trunking cover and base with base perforation and adhesive film.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • WDK trunking, trunking depth 10 mm
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

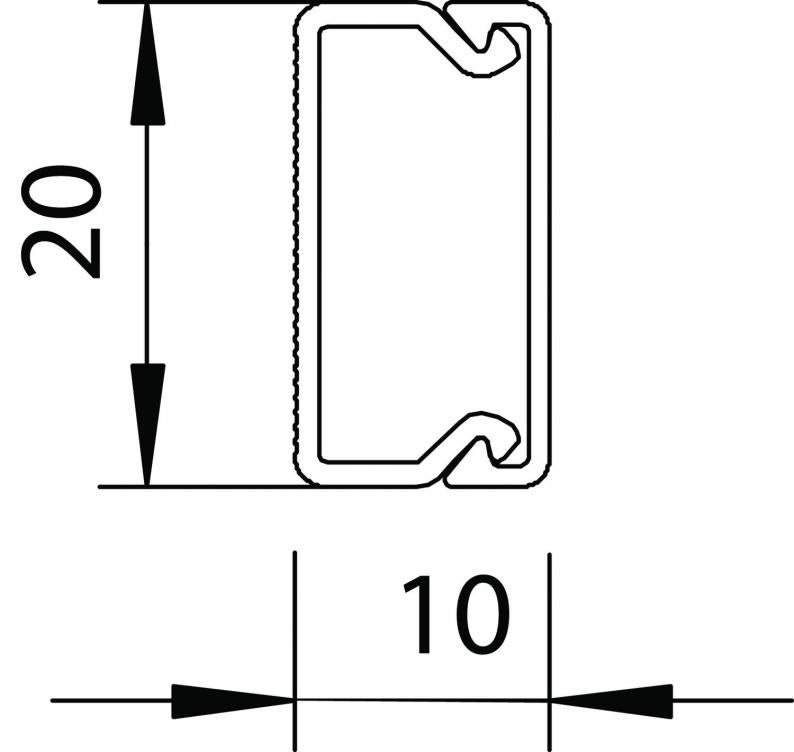

Dimensions

Length2000 mm
Width20 mm
Height10 mm

Technical data

Maintain electrical functionsno
Usable cross-section135 mm²
Halogen-freeno
Number of fixed partitions0
Number of insertable partitions0
Cable retaining clipyes
Protective filmno
Duct connectorno
Protection ratingIP30
Delivery on a rollno
Protection rating IK codeIK04
Fastening typeBase perforation
Version, cable trunking coverLoose
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension2000x20x10
MaterialPolyvinylchloride
ColourJet black; RAL 9005
Antibacterial treatmentno
Product seriesBlackLine, WDK

Environmental Data

0,5068 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,5068 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,5068 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
Height
WDK15015SW
Item no.
6024949
Length
2000
Width
15
Height
15
Colour
Jet black; RAL 9005
WDK20020SW
Item no.
6025155
Length
2000
Width
17,5
Height
17,5
Colour
Jet black; RAL 9005
WDK25040SW
Item no.
6026488
Length
2000
Width
40
Height
25
Colour
Jet black; RAL 9005
WDK40060SW
Item no.
6025638
Length
2000
Width
60
Height
40
Colour
Jet black; RAL 9005
WDK10020SSW
Item no.
6027374
Length
2000
Width
20
Height
10
Colour
Jet black; RAL 9005
WDK60110SW
Item no.
6022018
Length
2000
Width
108,5
Height
60,3
Colour
Jet black; RAL 9005
