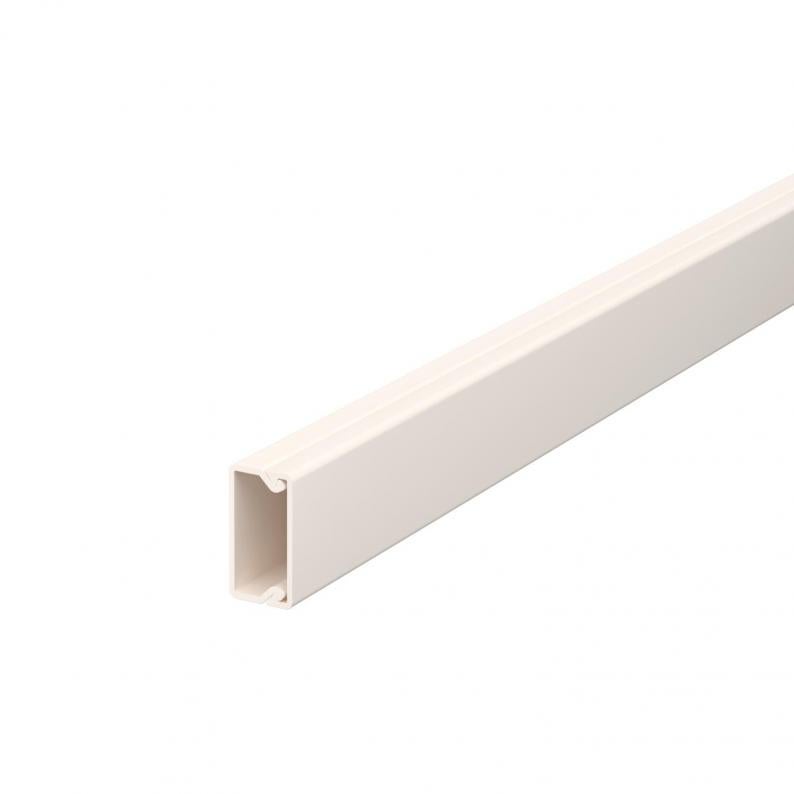

Trunking, type WDK 10020

Trunking, type WDK 10020

Type WDK10020CW
Item no. 6150756
EAN 4012196098170
Show all variants
Item no. / Type
Length
Width
Height
Colour

Smallest selling unit: 2 m

m

Description

Trunking cover and base with base perforation.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • WDK trunking, trunking depth 10 mm
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

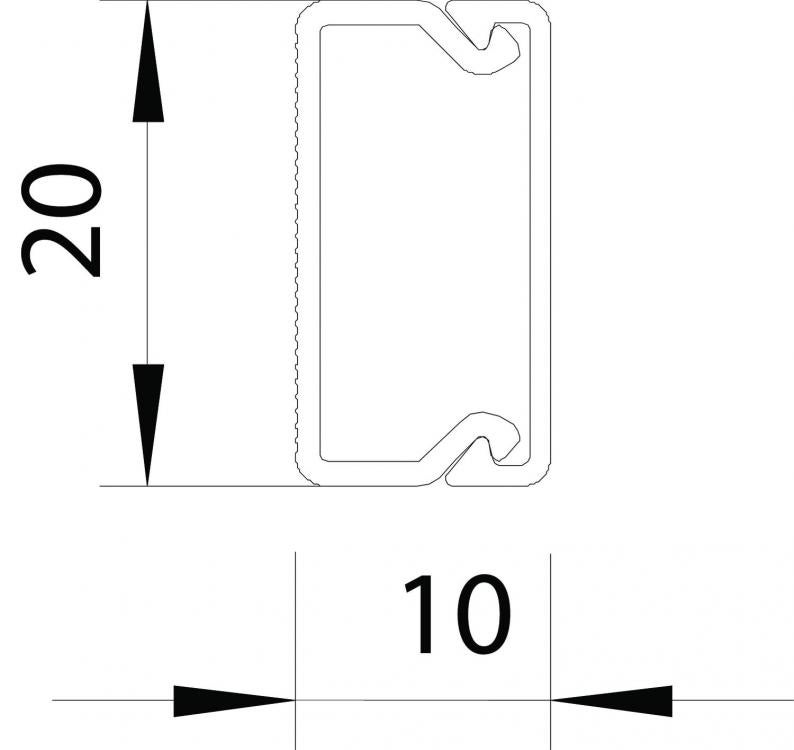

Dimensions

Length2000 mm
Width20 mm
Height10 mm

Technical data

Maintain electrical functionsno
Usable cross-section135 mm²
Halogen-freeno
Number of fixed partitions0
Number of insertable partitions0
Cable retaining clipyes
Protective filmno
Duct connectorno
Protection ratingIP30
Delivery on a rollno
Protection rating IK codeIK04
Fastening typeBase perforation
Version, cable trunking coverLoose
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension10x20x2000
MaterialPolyvinylchloride
ColourCream; RAL 9001
Antibacterial treatmentno
Product seriesWDK

Environmental Data

0,1965 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,1965 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,1965 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

Mounting accessories
System accessories
Type
DP D 30

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK10020CW
Item no.
6150756
Length
2000
Width
20
Height
10
Colour
Cream; RAL 9001
WDK10020RW
Item no.
6150764
Length
2000
Width
20
Height
10
Colour
Pure white; RAL 9010
