TP wall and ceiling bracket FS
Type TPDG 195 FS
|Item no. 6365914
|EAN 4012196042609
Item no. / Type
Width
Height
for width max.
F in kN wall
F in kN ceiling
Smallest selling unit: 6 piece
6piece
piece
Description

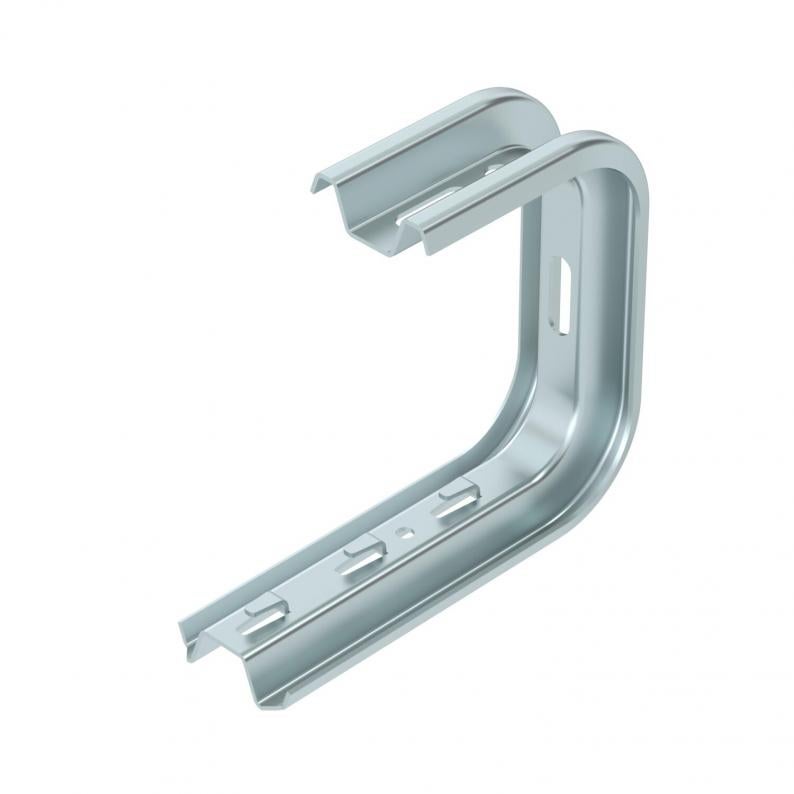

TP wall and ceiling bracket with clamping lugs for screwless mesh cable tray fastening.
If the wall and ceiling bracket is fastened directly to the wall or ceiling, then, for reasons of stability, always use the spacer, type DS 4.
Max. side height of the cable support system 60 mm.
Technical data
Dimensions

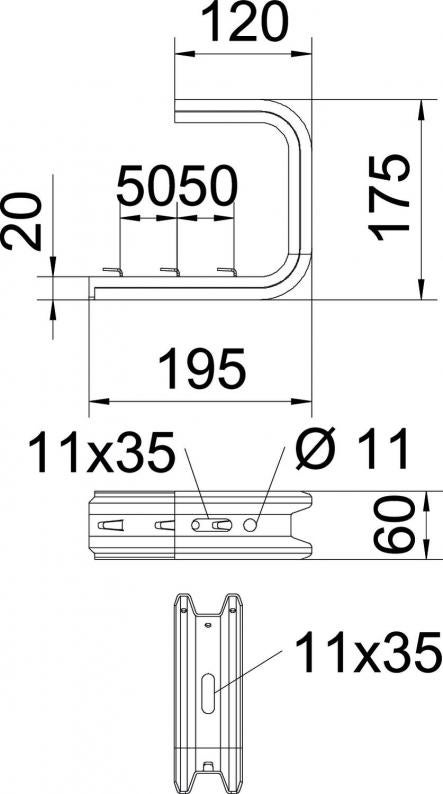

| Length | 175 mm |
|---|---|
| Width | 195 mm |
| Height | 60 mm |
| Dimension L | 100 mm |
| Dimension B | 195 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| for width min. | 150 |
| for width max. | 150 mm |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Version for | Suspension bracket (C clamp) |
| F in kN wall | 1,05 kN |
| F in kN ceiling | 0,95 kN |
| Dimension | B195mm |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
Bending of the bracket tip at permitted bracket load
Permitted bracket load in kN without man load
Load curve with bracket lengths in mm
Environmental Data
1,3857 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3857 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 1,3857 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
