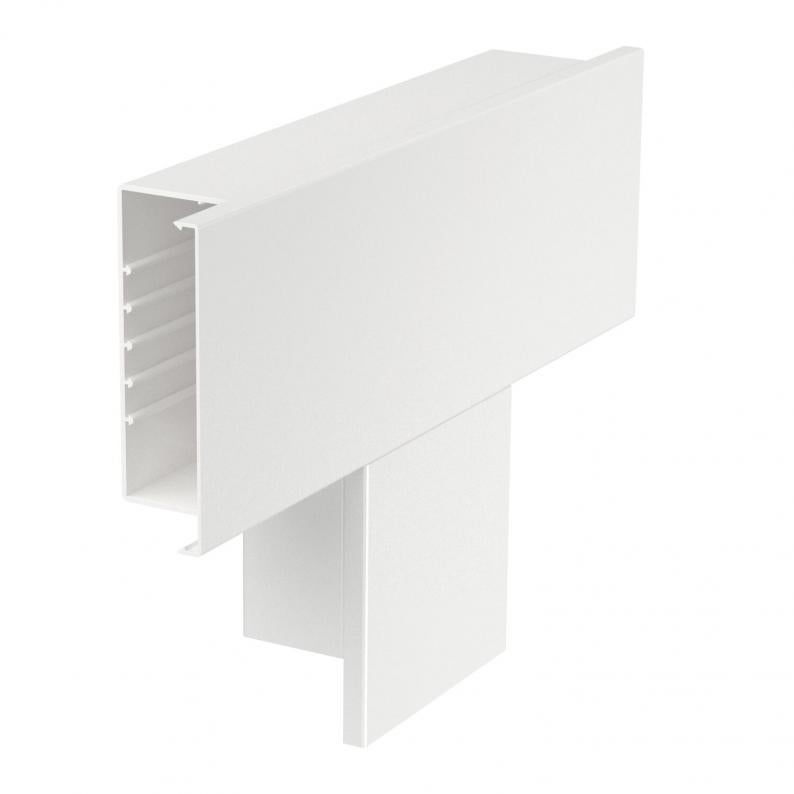

T piece, for trunking type WDK 80170

T piece, for trunking type WDK 80170

Type WDK T80170RW
Item no. 6183994
EAN 4012197251307
Show all variants
Item no. / Type
Dimension b
Dimension a
Colour

Smallest selling unit: 2 piece

piece

Description

T piece to change the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length400 mm
Width170 mm
Height80 mm
Dimension b285 mm
Dimension a400 mm

Technical data

Halogen-freeno
Protective filmno
Protection ratingIP30
Protection rating IK codeIK04
Version forBase
Fastening typeBase perforation
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension400x170x80
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno
Product seriesWDK

Environmental Data

6,1434 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate6,1434 kg CO2e / 1 Piece
CO₂ Footprint (GWP)6,1434 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
WDK T80170RW
Item no.
6183994
Dimension b
285
Dimension a
400
Colour
Pure white; RAL 9010
WDK T80170CW
Item no.
6193404
Dimension b
285
Dimension a
400
Colour
Cream; RAL 9001
WDK T80170LGR
Item no.
6163094
Dimension b
285
Dimension a
400
Colour
Light grey; RAL 7035
WDK T80170GR
Item no.
6193414
Dimension b
285
Dimension a
400
Colour
Stone grey; RAL 7030
