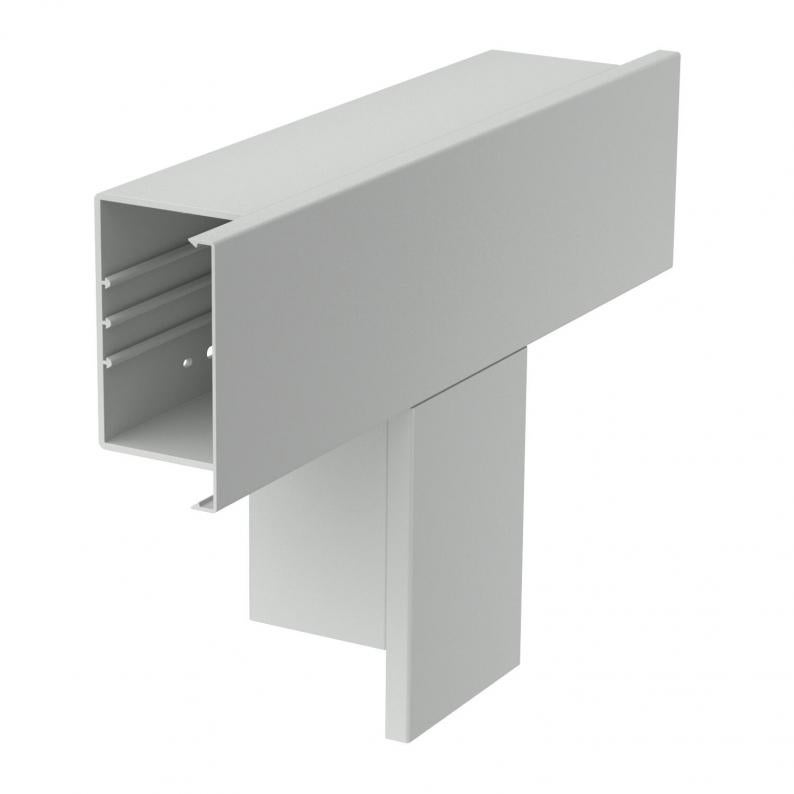

T piece, for trunking type WDK 100130

T piece, for trunking type WDK 100130

Type WDK T100130LGR
|
Item no. 6163090
|
EAN 4012197251567
Show all variants
Item no. / Type
Dimension a
Colour

Smallest selling unit: 1 piece

piece

Description

T piece to change the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length400 mm
Width130 mm
Height100 mm
Dimension a400 mm

Technical data

Halogen-freeno
Protective filmno
Protection ratingIP30
Protection rating IK codeIK04
Version forBase
Fastening typeBase perforation
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension400x130x100
MaterialPolyvinylchloride
ColourLight grey; RAL 7035
Antibacterial treatmentno

Environmental Data

3,2219 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate3,2219 kg CO2e / 1 Piece
CO₂ Footprint (GWP)3,2219 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
WDK T100130RW
Item no.
6183990
Dimension a
400
Colour
Pure white; RAL 9010
WDK T100130CW
Item no.
6193400
Dimension a
400
Colour
Cream; RAL 9001
WDK T100130LGR
Item no.
6163090
Dimension a
400
Colour
Light grey; RAL 7035
WDK T100130GR
Item no.
6193410
Dimension a
400
Colour
Stone grey; RAL 7030
