T piece cover, for trunking type WDK 13025

T piece cover, for trunking type WDK 13025

Type WDK HTCW13025PW
|
Item no. 6192448
|
EAN 4012195959137
Show all variants
Item no. / Type
Colour

Smallest selling unit: 10 piece

piece

Description

T piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

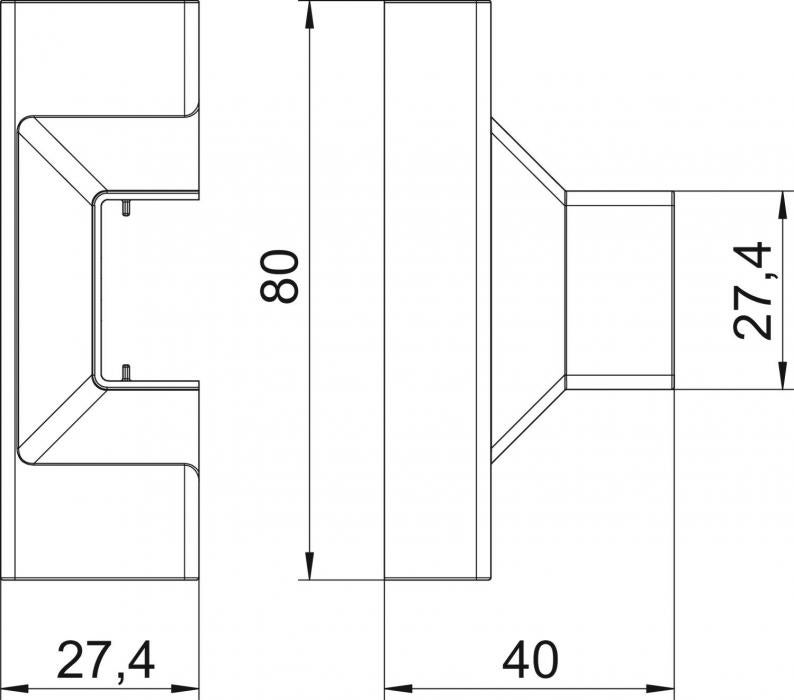

Dimensions

Length80 mm
Width25 mm
Height13 mm

Technical data

Halogen-freeno
Protective filmno
Protection ratingIP30
Protection rating IK codeIK04
Version forHood fitting
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension15x80x40mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourOyster white; RAL 1013
Antibacterial treatmentno

Environmental Data

0,0786 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0786 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0786 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
WDK HTCW13025PW
Item no.
6192448
Colour
Oyster white; RAL 1013
WDK HTCW13025RW
Item no.
6192450
Colour
Pure white; RAL 9010
