T piece 60/400 A2
Type RT 640 A2
Item no. 6038166
EAN 4012197340315
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

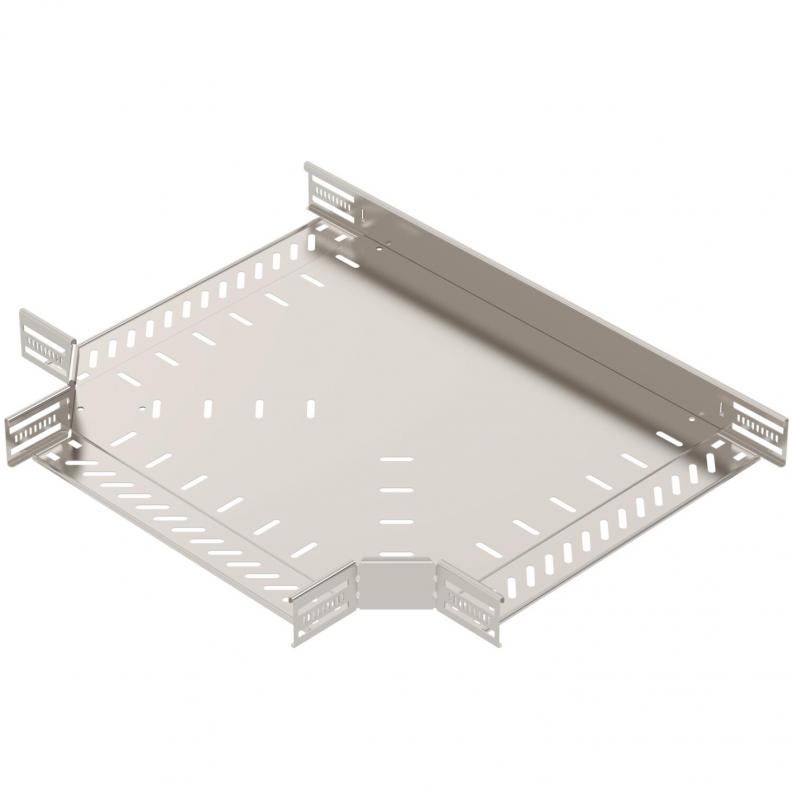

T piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
Technical data
Dimensions
| Width | 400 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 400 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| NATO hole pattern | no |
| Width of the branch | 400 mm |
| Type | T piece horizontal |
| ROHS-conformant | yes |
| Rail thickness | 1,25 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 120 °C |
| Dimension | 60x400 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 21 St. |
| Product series | MKS Series, RKSM Series, SKSM Series, SKS Series |
Environmental Data
24,3238 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 24,3238 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 24,3238 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Item no.
RT 610 A2
100
Bright, treated
Stainless steel 1.4301
6038160
RT 620 A2
200
Bright, treated
Stainless steel 1.4301
6038162
RT 630 A2
300
Bright, treated
Stainless steel 1.4301
6038164
RT 640 A2
400
Bright, treated
Stainless steel 1.4301
6038166
RT 650 A2
500
Bright, treated
Stainless steel 1.4301
6038168
RT 660 A2
600
Bright, treated
Stainless steel 1.4301
6038170
Width
RT 610 A2
Item no.
6038160
Width
100
Surface
Bright, treated
Material
Stainless steel 1.4301
RT 620 A2
Item no.
6038162
Width
200
Surface
Bright, treated
Material
Stainless steel 1.4301
RT 630 A2
Item no.
6038164
Width
300
Surface
Bright, treated
Material
Stainless steel 1.4301
RT 640 A2
Item no.
6038166
Width
400
Surface
Bright, treated
Material
Stainless steel 1.4301
RT 650 A2
Item no.
6038168
Width
500
Surface
Bright, treated
Material
Stainless steel 1.4301
RT 660 A2
Item no.
6038170
Width
600
Surface
Bright, treated
Material
Stainless steel 1.4301
