T piece 110 FT

T piece 110 FT

Type LT 1160 R3 FT
Item no. 6225320
EAN 4012196444489
Show all variants
Item no. / Type
Width
Rail thickness

Smallest selling unit: 1 piece

piece

Description

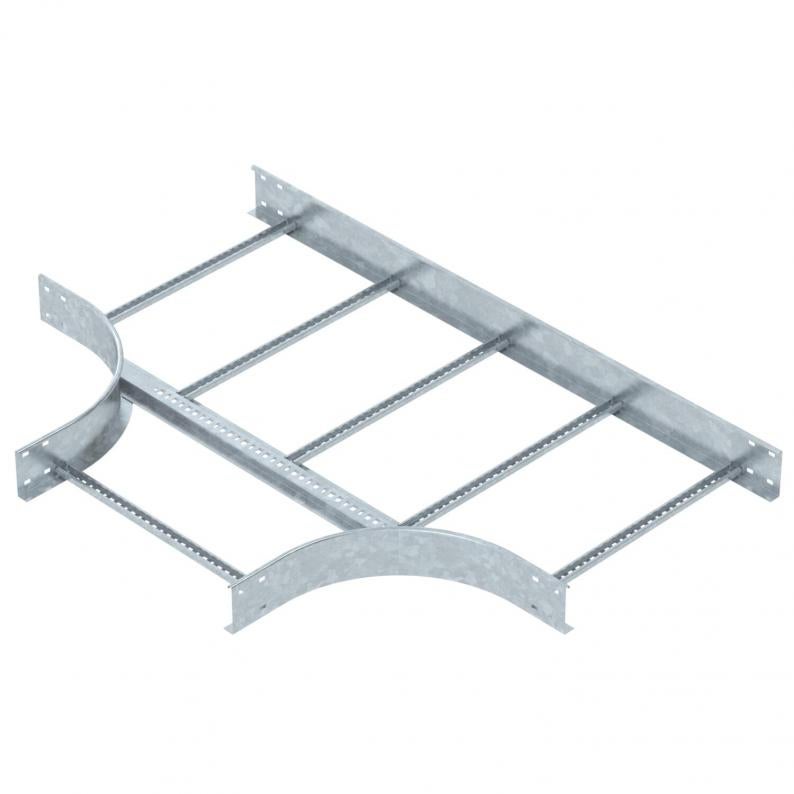

T piece, horizontal, with welded rung for all cable ladder types of 110 mm side height.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width600 mm
Height110 mm
Dimension B600 mm
Dimension R300 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Version of the rungsProfile unperforated
Side rail versionFlat profile
TypeExit symmetrical
ROHS-conformantyes
Rail thickness1,5 mm
Dimension110x600
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

23,3659 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate23,3659 kg CO2e / 1 Piece
CO₂ Footprint (GWP)23,3659 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

Mounting accessories
Type
LVG 110 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LT 1120 R3 FT
Item no.
6225310
Width
200
Rail thickness
1,5
LT 1130 R3 FT
Item no.
6225312
Width
300
Rail thickness
1,5
LT 1140 R3 FT
Item no.
6225314
Width
400
Rail thickness
1,5
LT 1145 R3 FT
Item no.
6225316
Width
450
Rail thickness
1,5
LT 1150 R3 FT
Item no.
6225318
Width
500
Rail thickness
1,5
LT 1160 R3 FT
Item no.
6225320
Width
600
Rail thickness
1,5
