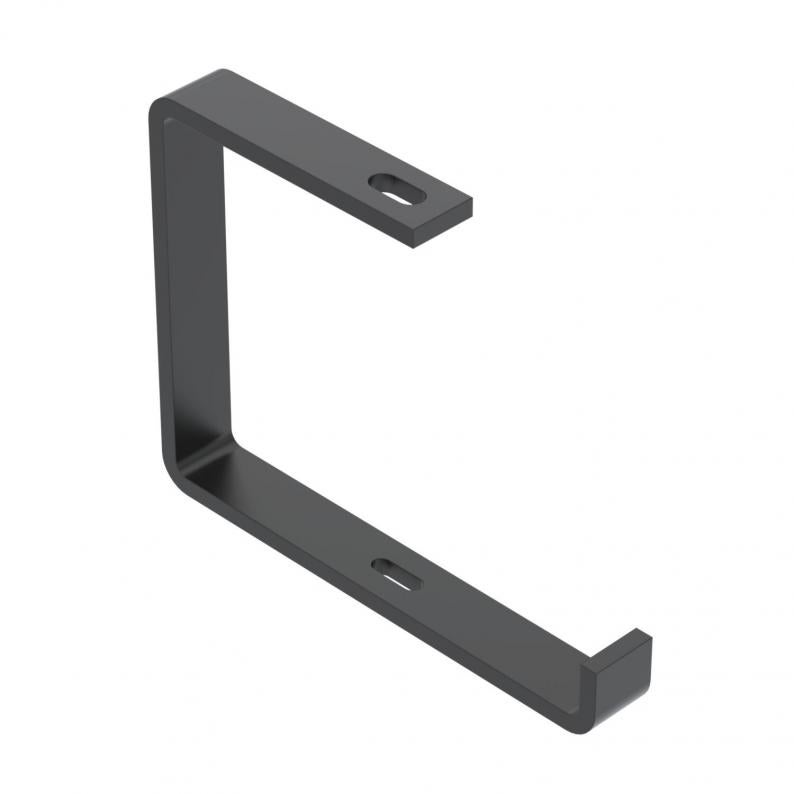

Suspension bracket, black
Type AHB 200 FTK SW
|Item no. 6363877
|EAN 4012197445195
Item no. / Type
Width
Height
for width max.
Hole diameter
F in kN ceiling
Smallest selling unit: 1 piece
1piece
piece
Description
Suspension bracket for cable support systems to fasten directly under the ceiling or as a suspension with threaded rods M10. Black coated.
Technical data
Dimensions
| Length | 30 mm |
|---|---|
| Width | 231 mm |
| Height | 180 mm |
| Dimension B | 215 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Material thickness | 8 mm |
| for width min. | 200 |
| for width max. | 200 mm |
| Adjustable | no |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hole diameter | 11 mm |
| Suitable for metric threaded rod | 10 |
| Version for | Suspension bracket (C clamp) |
| Tray fastening | Screw-on |
| F in kN ceiling | 0,6 kN |
| Dimension | B200mm |
| Surface | PES135 - Polyester |
| Material | Steel |
| Colour | Jet black; RAL 9005 |
Environmental Data
0,0181 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0181 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0181 kg CO₂e |
| Determination date of CO2 value | 2025-05-27T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406157
Truss-head bolt with flange nut FType
FRSB 6x16 F
Smallest selling unit: 100 piece
100piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Height
for width max.
Hole diameter
F in kN ceiling
Colour
Item no.
AHB 100 FTK SW
127
180
100
11
0,6
Jet black; RAL 9005
6363875
AHB 200 FTK SW
231
180
200
11
0,6
Jet black; RAL 9005
6363877
AHB 300 FTK SW
331
180
300
11
0,35
Jet black; RAL 9005
6363878
AHB 400 FTK SW
431
180
400
11
0,2
Jet black; RAL 9005
6363879
Width
for width max.
F in kN ceiling
AHB 100 FTK SW
Item no.
6363875
Width
127
Height
180
for width max.
100
Hole diameter
11
F in kN ceiling
0,6
Colour
Jet black; RAL 9005
AHB 200 FTK SW
Item no.
6363877
Width
231
Height
180
for width max.
200
Hole diameter
11
F in kN ceiling
0,6
Colour
Jet black; RAL 9005
AHB 300 FTK SW
Item no.
6363878
Width
331
Height
180
for width max.
300
Hole diameter
11
F in kN ceiling
0,35
Colour
Jet black; RAL 9005
AHB 400 FTK SW
Item no.
6363879
Width
431
Height
180
for width max.
400
Hole diameter
11
F in kN ceiling
0,2
Colour
Jet black; RAL 9005
