Support strap

Support strap

Type AHIS 8 FT
Item no. 6019064
EAN 4012196014477
Show all variants
Item no. / Type
6019064 / AHIS 8 FT
Width
60 mm

Smallest selling unit: 10 piece

piece

Description

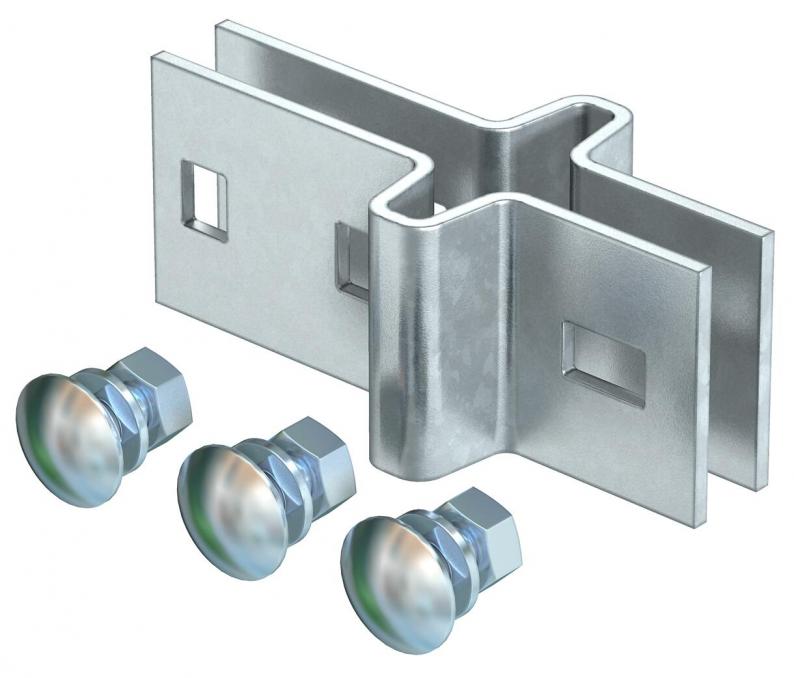

Support strap for right-angled connection of I supports.

Including appropriate fastening material.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • I support
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

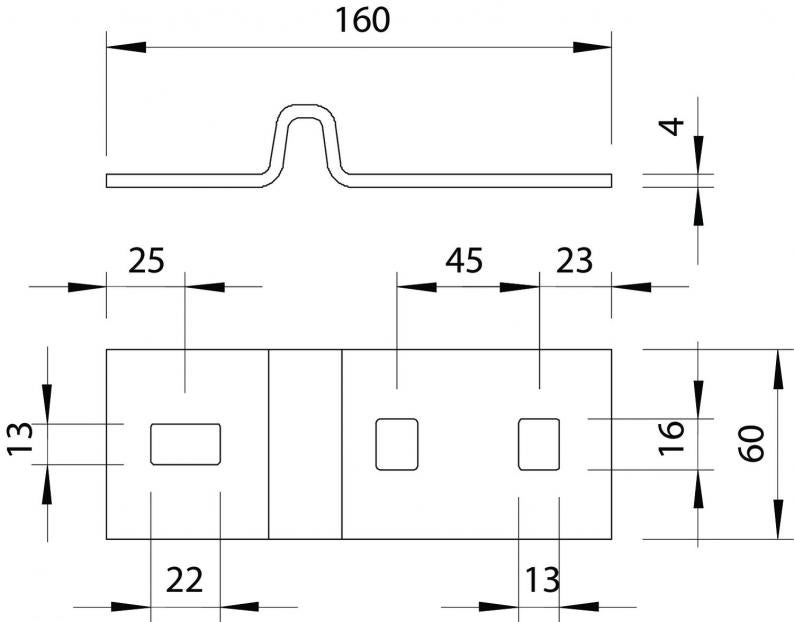

Dimensions

Length160 mm
Width60 mm
Height4 mm

Technical data

Material thickness4 mm
With screw accessoriesyes
Dimension160 x 60 x 4
ROHS-conformantyes
Dimension160x60
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Product seriesIS 8 Series

Environmental Data

1,9695 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate1,9695 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,9695 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
