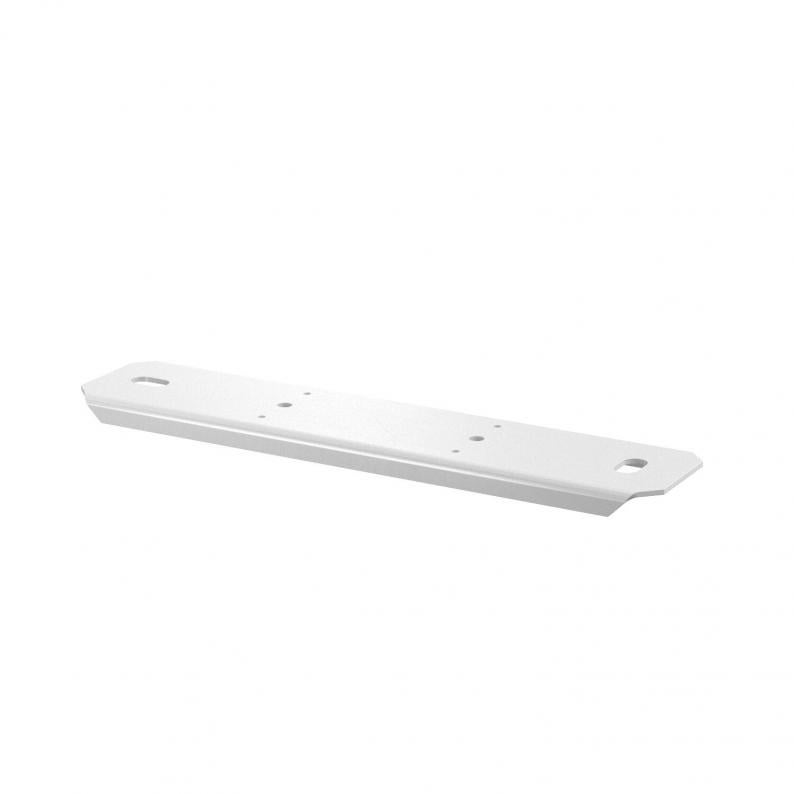

Support, duct width 200 mm, pure white

Support, duct width 200 mm, pure white

Type PLM SU 200 RW
Item no. 7218170
EAN 4012197274771
Show all variants
Item no. / Type
7218170 / PLM SU 200 RW
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

Support for suspended mounting of the PYROLINE® Rapid PLM installation duct.
Suspension point for accepting two M10 threaded rods and suitable as a support at joints of ducts and fittings.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

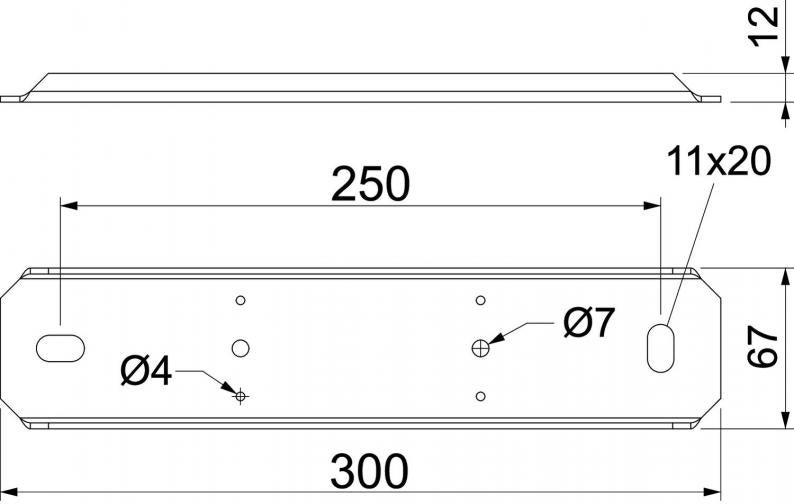

Dimensions

Dimension B300 mm
Dimension b250 mm

Technical data

Type of accessoryThreaded rod adapter
ROHS-conformantyes
Dimension300x67x12
SurfaceStrip galvanised
MaterialSteel
ColourPure white; RAL 9010
Accessoriesyes
Spare partno
Product seriesPYROLINE® rapid PLM

Environmental Data

1,5322 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate1,5322 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,5322 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
